EGIS XD Flex 2 Relay + ACR Dual 500A 12/24V (DTM)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

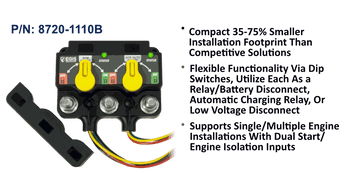

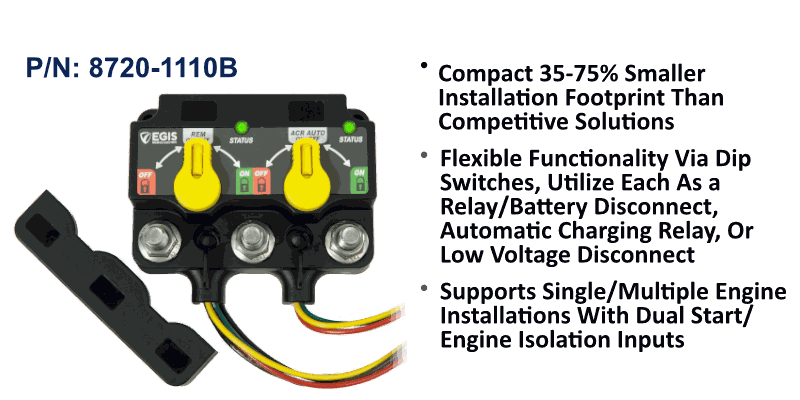

The EGIS XD Series Flex 2 Dual combines two independent 500A relay circuits in a single compact module, replacing two individual high-current relays and the cables that would link them. Configured as a switched relay plus an automatic charging relay (the voltage-sensitive relay, or VSR), it handles dual-battery load switching alongside automatic charge sharing between banks, and suits two and three battery systems. Each circuit is rated 500A continuous and 1500A maximum cranking across an 8 to 36 V DC range, covering standard 12V and 24V marine electrical systems.
Construction is sealed to IP67 and IP6K9K with high-temperature electronics, an integrated Gortex vent and stainless steel cable-lug studs that accept 1/4-20 / M6 hardware. Each circuit is dip-switch programmable under the included protective cover and carries a three-position manual override knob for clear, lockable open or closed control. Off-state draw is just 1.3 mA, front and remote LEDs report status, a 40-circuit weatherproof label set is included, and the Deutsch DTM connector is pin-for-pin compatible with legacy ML Series bi-stable relays. The system expands with 8790 link and 8791 cross-link busbars.
PRODUCT DETAILS
- Two independent 500A circuits in one module (Relay + ACR/VSR)
- Automatic charging relay shares charge between banks; second relay switches loads
- Three-position manual override knob per circuit with lockable open/closed positions
- 500A continuous and 1500A maximum cranking per circuit
- Sealed to IP67 / IP6K9K with integrated Gortex vent and 1.3 mA off-state draw
- Deutsch DTM connector, pin-for-pin compatible with ML Series bi-stable relays
- Includes 40-circuit weatherproof label set; expandable with 8790/8791 busbars
- 1 x EGIS XD Series Flex 2 dual-circuit relay module (Relay + ACR/VSR)
- Two front-facing manual override knobs (fitted)
- Protective terminal cover with label recesses
- 40-circuit weatherproof label set
- Stainless steel terminal hardware (self-locking flanged nuts)
- Deutsch DTM mating connector
- Dip-switch configuration guide
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Total Continuous Current | 500 A per circuit |
| Max Cranking Current | 1500 A |
| Voltage Range | 8-36 V DC |
| Off-State Current Draw | 1.3 mA |
| State Change Current | 5A @ 12V DC / 3A @ 24V DC |
Mechanical
| Mechanical Switching Life | 1,000,000 cycles |
| Connector | Deutsch DTM |
| Circuit Configuration | Relay + ACR/VSR (2 circuits) |
| Ingress Protection | IP67 / IP6K9K |
