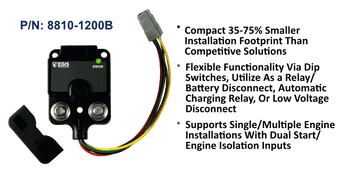

EGIS XD Flex 1 Relay/ACR/LVD Single 500A 12/24V (DTM, No Knob)

£231.10
Tax included.
8810-1200
Single-circuit XD Series multi-mode relay configurable as a basic relay, automatic charging relay (ACR) or low-voltage disconnect (LVD). Rated 500A continuous and 1500A cranking for 12V and 24V systems, with a 1.3mA off-state draw and sealed IP67 / IP6K9K construction. Fitted with a sealed Deutsch DTM connector and no manual override knob.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The EGIS XD Flex 1 is a single-circuit, multi-mode bi-stable relay for 12V and 24V DC systems that can be configured as a simple switched relay, an automatic charging relay that combines two battery banks while a charge source is present, or a low-voltage disconnect that sheds loads to protect a battery. It carries 500A continuously and up to 1500A during cranking across an 8 to 36V DC operating range, replacing several discrete devices with one compact module.

Construction is sealed to IP67 and IP6K9K with high-temperature electronics, an integrated Gortex vent and stainless steel cable-lug studs that accept 1/4-20 or M6 hardware. The bi-stable solenoid draws just 1.3mA in the off state, and the chosen mode is set through dip switches under an included protective cover. A front-facing LED reports device status and is replicated by a remote LED output. This version uses a sealed Deutsch DTM connector that is pin-for-pin compatible with legacy ML-Series bi-stable relays, and has no manual override knob.

PRODUCT DETAILS

  • Single multi-mode circuit configurable as Relay, ACR or low-voltage disconnect (LVD)
  • 500A continuous and 1500A cranking rating for 12V and 24V systems
  • Sealed Deutsch DTM connector, pin-for-pin compatible with legacy ML-Series relays
  • Ultra-low 1.3mA off-state current draw
  • Sealed IP67 / IP6K9K construction with integrated Gortex pressure vent
  • Front-facing status LED with remote LED replica output
  • Stainless steel cable-lug studs accepting 1/4-20 / M6 hardware
  • EGIS XD Series Flex 1 single-circuit relay with Deutsch DTM connector
  • Protective terminal cover
  • Stainless steel studs and self-locking flanged nuts

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Electrical

Total Continuous Current500 A
Max Cranking Current1500 A
Voltage Range8-36 V DC
Off-State Current Draw1.3 mA
State Change Current5A @ 12V DC / 3A @ 24V DC

Mechanical

Mechanical Switching Life1,000,000 cycles
ConnectorDeutsch DTM connector
Ingress ProtectionIP67 / IP6K9K

No videos available for this product.

What functions can this Flex 1 relay perform?
It is a single multi-mode relay that can be configured via dip switches to act as a basic switched relay, an automatic charging relay (ACR) that combines two battery banks while charging, or a low-voltage disconnect (LVD) that sheds loads to protect a battery.
What type of connector does it use?
It uses a sealed Deutsch DTM connector for its control wiring, which is pin-for-pin compatible with legacy ML-Series bi-stable relays for straightforward replacement. Main power lands on stainless steel cable-lug studs.
Does this model have a manual override knob?
No. This is the lever-free version with no manual override knob. The relay function is still configurable via the dip switches located under the protective cover.
What voltage systems and current does it support?
It operates across 8 to 36V DC, suiting both 12V and 24V systems, and is rated for 500A continuous current with up to 1500A during engine cranking.
