EGIS XD Flex 1 Relay/ACR/LVD Single 500A 12/24V (No Knob)

£208.96
Tax included.
8710-1200
Single-circuit XD Series multi-mode relay configurable as a basic relay, automatic charging relay (ACR) or low-voltage disconnect (LVD). Rated 500A continuous and 1500A cranking for 12V and 24V systems, with an ultra-low 1.3mA off-state draw and sealed IP67 / IP6K9K construction. Supplied with tinned wire leads and no manual override knob.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

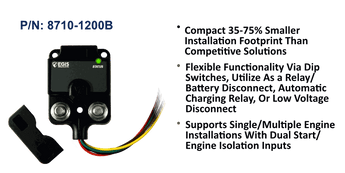

The EGIS XD Flex 1 is a single-circuit, multi-mode bi-stable relay for 12V and 24V DC systems that can be configured as a simple switched relay, an automatic charging relay that combines two battery banks while a charge source is present, or a low-voltage disconnect that sheds loads to protect a battery. It carries 500A continuously and up to 1500A during cranking across an 8 to 36V DC operating range, replacing several discrete devices with one compact module.

Construction is sealed to IP67 and IP6K9K with high-temperature electronics, an integrated Gortex vent and stainless steel cable-lug studs that accept 1/4-20 or M6 hardware. The bi-stable solenoid draws just 1.3mA in the off state, and the chosen mode is set through dip switches under an included protective cover. A front-facing LED reports device status and is replicated by a remote LED output. This version ships with tinned wire leads and no manual override knob.

PRODUCT DETAILS

  • Single multi-mode circuit configurable as Relay, ACR or low-voltage disconnect (LVD)
  • 500A continuous and 1500A cranking rating for 12V and 24V systems
  • Ultra-low 1.3mA off-state current draw
  • Sealed IP67 / IP6K9K construction with integrated Gortex pressure vent
  • Programmable via dip switches under an included protective cover
  • Front-facing status LED with remote LED replica output
  • Stainless steel cable-lug studs accepting 1/4-20 / M6 hardware
  • EGIS XD Series Flex 1 single-circuit relay with tinned wire leads
  • Protective terminal cover
  • Stainless steel studs and self-locking flanged nuts

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Electrical

Total Continuous Current500 A
Max Cranking Current1500 A
Voltage Range8-36 V DC
Off-State Current Draw1.3 mA
State Change Current5A @ 12V DC / 3A @ 24V DC

Mechanical

Mechanical Switching Life1,000,000 cycles
ConnectorTinned wire leads
Ingress ProtectionIP67 / IP6K9K

No videos available for this product.

What functions can this Flex 1 relay perform?
It is a single multi-mode relay that can be configured via dip switches to act as a basic switched relay, an automatic charging relay (ACR) that combines two battery banks while charging, or a low-voltage disconnect (LVD) that sheds loads to protect a battery.
What voltage systems and current does it support?
It operates across 8 to 36V DC, suiting both 12V and 24V systems, and is rated for 500A continuous current with up to 1500A during engine cranking.
How does it wire into the system?
Main power connects to stainless steel cable-lug studs that accept 1/4-20 or M6 hardware, while control connections are made through the tinned wire leads. This model has no manual override knob.
Is it suitable for harsh or wet environments?
Yes. It is sealed to IP67 and IP6K9K, uses high-temperature electronics and an integrated Gortex vent to regulate internal pressure, and draws only 1.3mA in the off state.
