EGIS XD Flex 1 Relay/ACR/LVD Single 500A 12/24V (DTM)

£247.14
Tax included.
8810-1100
Single-circuit XD Series multi-mode relay configurable as a basic relay, automatic charging relay (ACR) or low-voltage disconnect (LVD). Rated 500A continuous and 1500A cranking for 12V and 24V systems, with a 3-position manual override knob, a 1.3mA off-state draw and sealed IP67 / IP6K9K construction. Fitted with a sealed Deutsch DTM connector.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The EGIS XD Flex 1 is a single-circuit, multi-mode bi-stable relay for 12V and 24V DC systems that can be configured as a simple switched relay, an automatic charging relay that combines two battery banks while a charge source is present, or a low-voltage disconnect that sheds loads to protect a battery. It carries 500A continuously and up to 1500A during cranking across an 8 to 36V DC operating range, replacing several discrete devices with one compact module.

Construction is sealed to IP67 and IP6K9K with high-temperature electronics, an integrated Gortex vent and stainless steel cable-lug studs that accept 1/4-20 or M6 hardware. The bi-stable solenoid draws just 1.3mA in the off state, and the chosen mode is set through dip switches under an included protective cover. A 3-position manual override knob lets the relay be forced open or closed and locked there, while a front-facing LED reports status with a remote LED replica output. This version uses a sealed Deutsch DTM connector that is pin-for-pin compatible with legacy ML-Series bi-stable relays.

PRODUCT DETAILS

  • Single multi-mode circuit configurable as Relay, ACR or low-voltage disconnect (LVD)
  • 500A continuous and 1500A cranking rating for 12V and 24V systems
  • 3-position manual override knob locks the relay open or closed
  • Sealed Deutsch DTM connector, pin-for-pin compatible with legacy ML-Series relays
  • Ultra-low 1.3mA off-state current draw
  • Sealed IP67 / IP6K9K construction with integrated Gortex pressure vent
  • Front-facing status LED with remote LED replica and stainless 1/4-20 / M6 studs

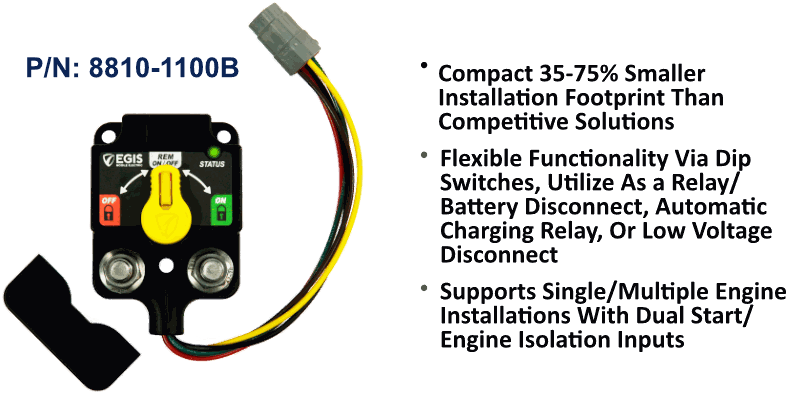

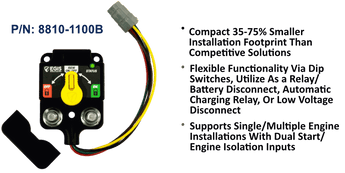

  • EGIS XD Series Flex 1 single-circuit relay with Deutsch DTM connector
  • 3-position manual override knob
  • Protective terminal cover
  • Stainless steel studs and self-locking flanged nuts

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Electrical

Total Continuous Current500 A
Max Cranking Current1500 A
Voltage Range8-36 V DC
Off-State Current Draw1.3 mA
State Change Current5A @ 12V DC / 3A @ 24V DC

Mechanical

Mechanical Switching Life1,000,000 cycles
ConnectorDeutsch DTM connector
Ingress ProtectionIP67 / IP6K9K

No videos available for this product.

What functions can this Flex 1 relay perform?
It is a single multi-mode relay that can be configured via dip switches to act as a basic switched relay, an automatic charging relay (ACR) that combines two battery banks while charging, or a low-voltage disconnect (LVD) that sheds loads to protect a battery.
What type of connector does it use?
It uses a sealed Deutsch DTM connector for its control wiring, which is pin-for-pin compatible with legacy ML-Series bi-stable relays for straightforward replacement. Main power lands on stainless steel cable-lug studs.
What voltage systems and current does it support?
It operates across 8 to 36V DC, suiting both 12V and 24V systems, and is rated for 500A continuous current with up to 1500A during engine cranking.
What does the manual override knob do?
The 3-position front-facing knob lets you force the relay open or closed manually and leave it locked in either state, with clear visual confirmation of the forced condition.
