EGIS XD Flex 1 Relay/ACR/LVD Single 500A 12/24V

£223.98
Tax included.
8710-1100

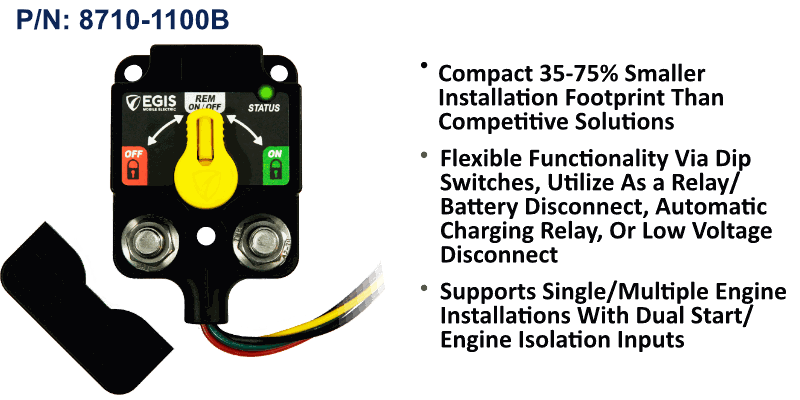

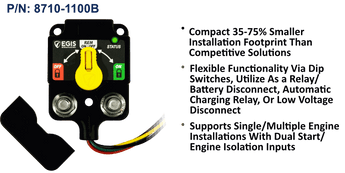

Single-circuit XD Series Flex 1 relay configurable as a simple relay, automatic charging relay or low voltage disconnect, rated at 500A continuous over an 8-36V DC range. Uses an advanced bi-stable solenoid for an ultra-low 1.3mA off-state draw, with a 3-position manual override knob, front and remote LED status, and flying tinned wire leads.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The EGIS 8710-1100 is a single-circuit XD Series Flex 1 relay that can be configured as a simple relay, an automatic charging relay (ACR) or a low voltage disconnect (LVD), giving installers one multi-mode device for a wide range of dual-battery and load-control tasks. Built on the XD bi-stable solenoid platform, it delivers 500A continuous current and up to 1500A cranking in a package far smaller than conventional solutions. As an ACR it shares charging across two batteries and isolates them when no charge source is present, and it supports two independent start or engine isolation inputs for multi-engine or independent charge systems.

A front-facing 3-position manual override knob lets the relay be forced open or closed and locked in either state, with a clear front LED and a remote LED that mirrors it. The sealed enclosure is rated to IP67/IP6K9K with an integrated Gore-Tex vent that regulates internal pressure for long life in harsh environments, while stainless-steel studs with self-locking flanged nuts accept 1/4-20 or M6 hardware. Functions are configured via dip switches under the included protective cover, off-state draw is just 1.3mA, and the unit terminates in flying tinned wire leads. It can be expanded with optional 8790 link and 8791 crossover busbars.

PRODUCT DETAILS

  • Single multi-mode unit configurable as relay, ACR or low voltage disconnect
  • 500A total continuous current and 1500A maximum cranking current
  • Wide 8-36V DC operating range for 12V and 24V systems
  • Two independent start/engine isolation inputs for multi-engine systems
  • Ultra-low 1.3mA off-state draw via advanced bi-stable solenoid design
  • 3-position manual override knob with front and remote LED status
  • Sealed to IP67/IP6K9K with integrated Gore-Tex vent and stainless studs (1/4-20 / M6)
  • Flying tinned wire leads with protective cover; expandable with 8790/8791 link busbars
  • 1 x EGIS 8710-1100 single XD Flex 1 relay with flying tinned wire leads
  • 3-position manual override knob (fitted)
  • Protective terminal cover

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Electrical

Continuous Current500 A
Max Cranking Current1500 A
Voltage Range8 - 36 V DC
Off-State Current Draw1.3 mA
State Change Current5A @ 12V DC / 3A @ 24V DC

Mechanical

Mechanical Switching Life1,000,000 cycles
ConnectorTinned wire leads
Ingress ProtectionIP67 / IP6K9K

No videos available for this product.

What modes can the Flex 1 be configured for?
The 8710-1100 is a multi-mode single relay that can be set up as a simple relay, an automatic charging relay (ACR), or a low voltage disconnect (LVD), selected via the dip switches, so one device covers several common dual-battery and load-control roles.
How does it work as an ACR?
As an automatic charging relay it shares charge across two batteries when a charge source is present and isolates them when none is, preventing dead start batteries. It also supports two independent start or engine isolation inputs for multi-engine or independent charge systems.
How does the manual override knob work?
The front-facing 3-position knob lets you force the relay open or closed and optionally leave it locked in either position, with the knob position clearly showing whether the relay has been manually set on or off.
What is the off-state current draw?
Thanks to its bi-stable solenoid design, the off-state draw is just 1.3mA, around 90-95% less than competitive products that need multiple devices for similar functionality.
