EGIS

EGIS XD Flex 2 Programmable ACR Single 500A 12/24V (DTM)

£247.14
Tax included.
8810-1300
Single-circuit XD Series Flex 2 programmable automatic charging relay for 12V and 24V systems. Combines two battery banks while charging and isolates them when no charge source is present, rated 500A continuous and 1500A cranking with a 3-position manual override knob, a 1.3mA off-state draw and sealed IP67 / IP6K9K construction. Fitted with a sealed 6-position Deutsch DTM connector.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The EGIS XD Flex 2 is a single-circuit, programmable bi-stable automatic charging relay for 12V and 24V DC systems. It links two battery banks so a single charge source keeps both topped up, then isolates them once charging stops to protect the start battery, and can be reconfigured as a plain switched relay through dip switches. It carries 500A continuously and up to 1500A during cranking across an 8 to 36V DC range.

Construction is sealed to IP67 and IP6K9K with high-temperature electronics, an integrated Gortex vent and stainless steel cable-lug studs that accept 1/4-20 or M6 hardware. The bi-stable solenoid draws just 1.3mA in the off state, and a 3-position manual override knob lets the relay be forced open or closed and locked there. A front-facing LED reports status with a remote LED replica output, and the dip switches sit under an included protective cover. This version uses a sealed 6-position Deutsch DTM connector that is pin-for-pin compatible with legacy ML-Series bi-stable relays.

PRODUCT DETAILS

  • Programmable single-circuit ACR; combines and isolates two battery banks automatically
  • Reconfigurable as a basic switched relay via dip switches
  • 500A continuous and 1500A cranking rating for 12V and 24V systems
  • 3-position manual override knob locks the relay open or closed
  • Sealed 6-position Deutsch DTM connector, ML-Series compatible
  • Ultra-low 1.3mA off-state current draw
  • Sealed IP67 / IP6K9K construction with integrated Gortex pressure vent

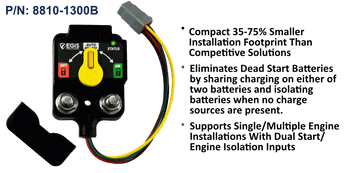

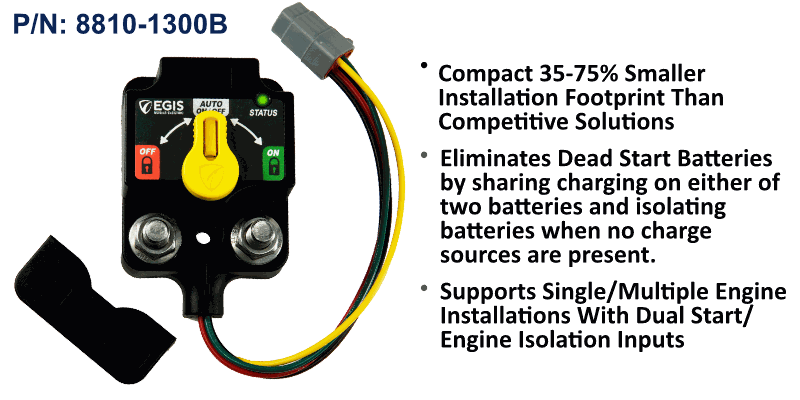

  • EGIS XD Series Flex 2 single-circuit ACR with 6-position Deutsch DTM connector
  • 3-position manual override knob
  • Protective terminal cover
  • Stainless steel studs and self-locking flanged nuts

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Electrical

Total Continuous Current500 A
Max Cranking Current1500 A
Voltage Range8-36 V DC
Off-State Current Draw1.3 mA
State Change Current5A @ 12V DC / 3A @ 24V DC

Mechanical

Mechanical Switching Life1,000,000 cycles
ConnectorDeutsch DTM (6-position)
Ingress ProtectionIP67 / IP6K9K

No videos available for this product.

What does this automatic charging relay do?
It automatically combines two battery banks while a charge source is present so both banks charge from one source, then isolates them once charging stops to protect the start battery. It can also be configured as a basic switched relay via dip switches.
What type of connector does it use?
It uses a sealed 6-position Deutsch DTM connector for its control wiring, pin-for-pin compatible with legacy ML-Series bi-stable relays. Main power lands on stainless steel cable-lug studs.
What does the manual override knob do?
The 3-position front-facing knob lets you force the relay open or closed manually and leave it locked in either state, with clear visual confirmation of the forced condition.
What voltage systems and current does it support?
It operates across 8 to 36V DC, suiting both 12V and 24V systems, and is rated for 500A continuous current with up to 1500A during engine cranking.
