EGIS XD Flex 2 Relay/ACR Single 500A 12/24V (DTM, No Knob)

£202.75
Tax included.
8810-1600

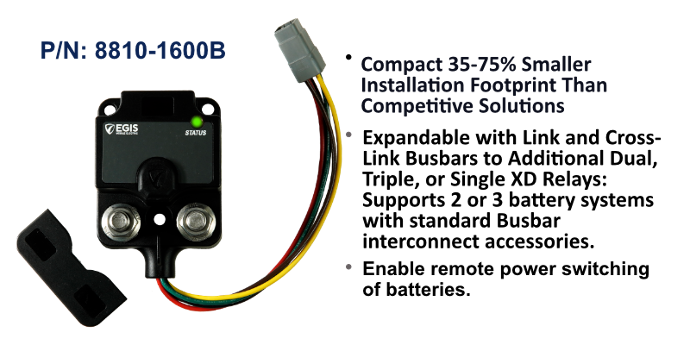

Single-circuit XD Series Flex 2 relay rated 500A continuous, programmable as a basic relay or automatic charging relay (ACR). Sealed, ignition-protected bi-stable solenoid with a 6-position Deutsch DTM connector, no manual override knob.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The EGIS XD Series Flex 2 Single is a high-current bi-stable solenoid that replaces traditional marine relays, solenoids and remote battery switches in a far smaller footprint. Rated at 500A continuous and 1500A maximum cranking across an 8 to 36 V DC range, it covers all standard 12V and 24V marine electrical systems. Dip-switch programming under the protective cover lets a single device act as a basic switched relay or an automatic charging relay (ACR) that combines two banks while charging and isolates them when no charge source is present.

Construction is sealed to IP67 and IP6K9K with high-temperature electronics, an integrated Gortex vent to equalise internal pressure, and stainless steel cable-lug studs that accept 1/4-20 / M6 hardware. Off-state current draw is just 1.3 mA, 90-95% lower than competitive multi-device solutions. A front-facing LED reports device status and is replicated at a remote LED, and the 6-position Deutsch DTM connector is pin-for-pin compatible with legacy ML Series bi-stable relays. This is the lever-free variant, supplied without a manual override knob.

PRODUCT DETAILS

  • Single circuit, programmable as a basic relay or automatic charging relay (ACR)
  • 500A continuous and 1500A maximum cranking current
  • Sealed to IP67 / IP6K9K with integrated Gortex pressure-equalising vent
  • Ultra-low 1.3 mA off-state current draw
  • 6-position Deutsch DTM connector, pin-for-pin compatible with ML Series bi-stable relays
  • Front and remote LED status indication
  • Stainless steel cable-lug studs accept 1/4-20 / M6 hardware
  • 1 x EGIS XD Series Flex 2 single-circuit relay (Relay/ACR)
  • Protective terminal cover with label recesses
  • Stainless steel terminal hardware (self-locking flanged nuts)
  • 6-position Deutsch DTM mating connector
  • Dip-switch configuration guide

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Electrical

Total Continuous Current500 A
Max Cranking Current1500 A
Voltage Range8-36 V DC
Off-State Current Draw1.3 mA
State Change Current5A @ 12V DC / 3A @ 24V DC

Mechanical

Mechanical Switching Life1,000,000 cycles
ConnectorDeutsch DTM (6-position)
Ingress ProtectionIP67 / IP6K9K

No videos available for this product.

Can this unit work as both a relay and an automatic charging relay?
Yes. The single circuit is programmed via dip switches under the protective cover, so it can operate as a basic switched relay or as an automatic charging relay (ACR) that combines two battery banks while charging and isolates them when no charge source is present.
Does it have a manual override knob?
No. The 8810-1600 is the lever-free variant supplied without a manual override knob. EGIS offers knob-equipped XD models if manual override is required.
Will it work on both 12V and 24V systems?
Yes. The XD Series operates across an 8 to 36 V DC range, covering standard 12V and 24V marine electrical systems.
Is it compatible with existing ML Series relay wiring?
Yes. The 6-position Deutsch DTM connector is pin-for-pin compatible with legacy Blue Sea ML Series bi-stable relays, making it a direct wiring replacement.
