EGIS XD Flex 2 Relay/ACR/Relay Triple 500A 12/24V (DTM)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

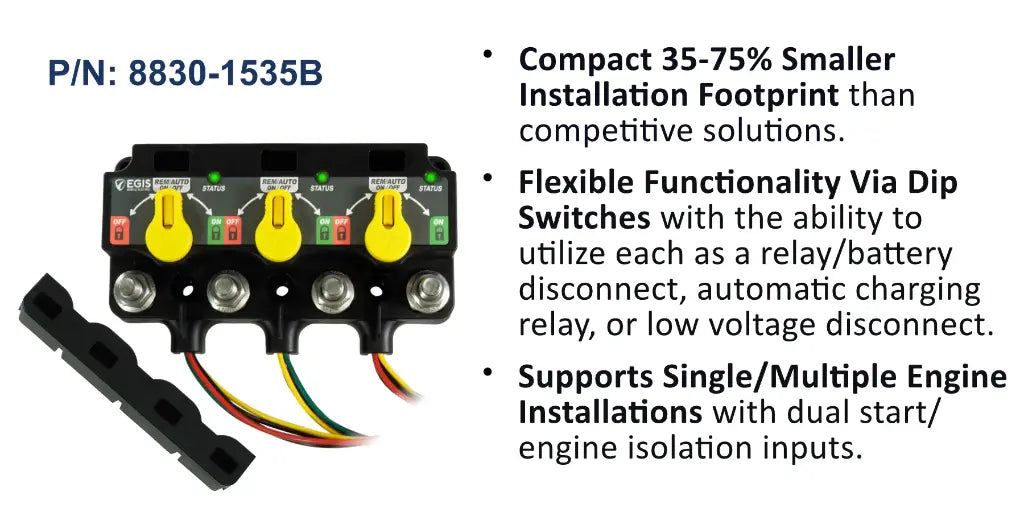

The EGIS XD Series Flex 2 Triple packs three independent 500A relay circuits into a single compact module, replacing three individual high-current relays and their interconnecting cables. Configured Relay/ACR/Relay, it uses the two outer relays for dual-battery load switching and a central automatic charging relay to share charge current between banks, making it ideal for three and four battery systems. Each circuit is rated 500A continuous and 1500A maximum cranking across an 8 to 36 V DC range, suiting all standard 12V and 24V marine electrical systems.
Construction is sealed to IP67 and IP6K9K with high-temperature electronics, an integrated Gortex vent and stainless steel cable-lug studs that accept 1/4-20 / M6 hardware. Each circuit is dip-switch programmable under the included protective cover and carries a three-position manual override knob, giving clear, lockable open or closed control. Off-state draw is just 1.3 mA, front and remote LEDs report status, and the DTM connectors are pin-for-pin compatible with legacy ML Series bi-stable relays. The system expands further using 8790 link and 8791 cross-link busbars.
PRODUCT DETAILS
- Three independent 500A circuits in one module (Relay / ACR / Relay)
- Central automatic charging relay shares charge between banks; outer relays switch loads
- Three-position manual override knob per circuit with lockable open/closed positions
- 500A continuous and 1500A maximum cranking per circuit
- Sealed to IP67 / IP6K9K with integrated Gortex vent and 1.3 mA off-state draw
- Deutsch DTM connectors, pin-for-pin compatible with ML Series bi-stable relays
- Expandable with 8790 link and 8791 cross-link busbars
- 1 x EGIS XD Series Flex 2 triple-circuit relay module (Relay/ACR/Relay)
- Three front-facing manual override knobs (fitted)
- Protective terminal cover with label recesses
- Stainless steel terminal hardware (self-locking flanged nuts)
- Deutsch DTM mating connectors
- Dip-switch configuration guide
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Total Continuous Current | 500 A per circuit |
| Max Cranking Current | 1500 A |
| Voltage Range | 8-36 V DC |
| Off-State Current Draw | 1.3 mA |
| State Change Current | 5A @ 12V DC / 3A @ 24V DC |
Mechanical
| Mechanical Switching Life | 1,000,000 cycles |
| Connector | Deutsch DTM (3x) |
| Circuit Configuration | Relay / ACR / Relay (3 circuits) |
| Ingress Protection | IP67 / IP6K9K |
