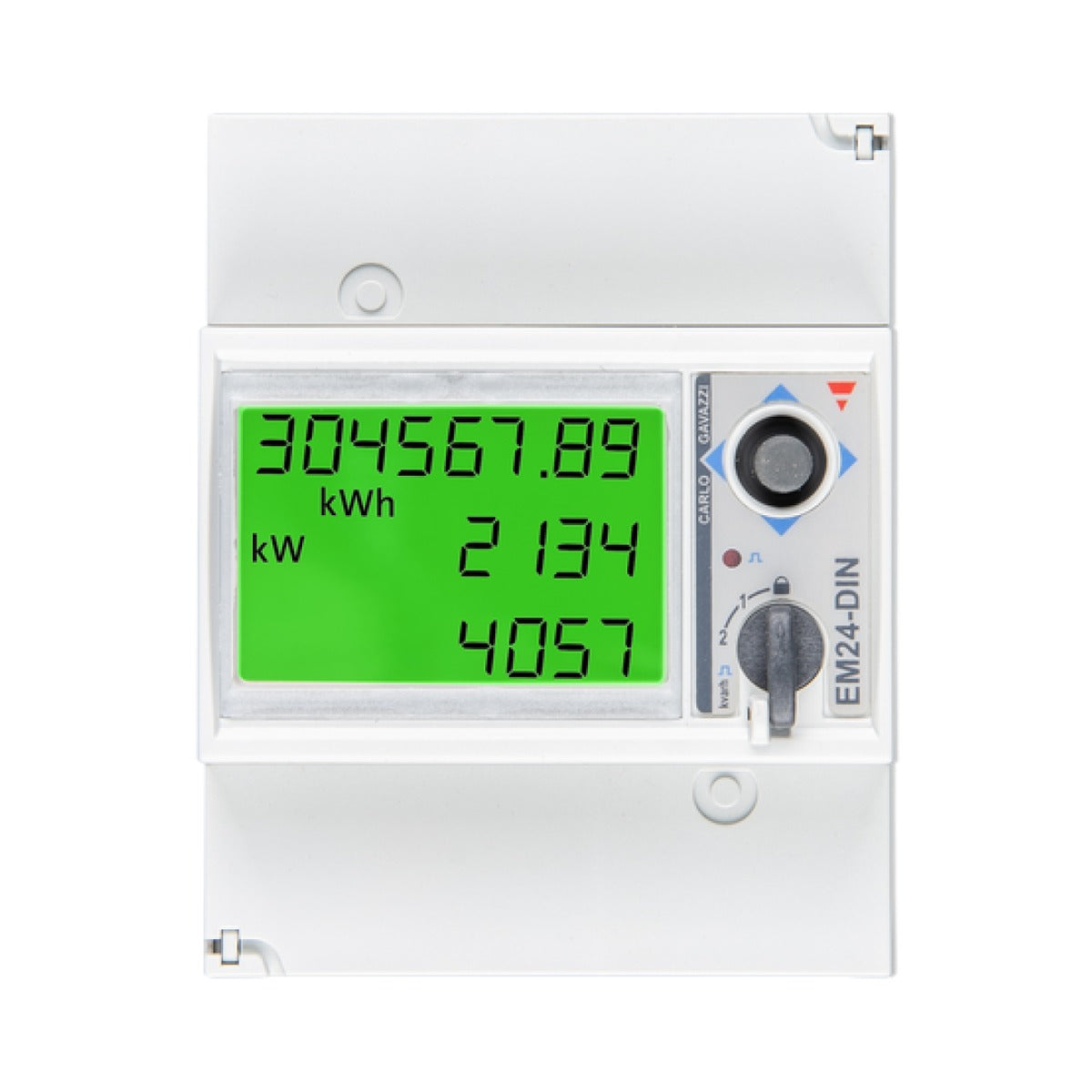

Victron Energy Meter EM24 (3-Phase, Ethernet)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron Energy Meter EM24 is a three-phase DIN-rail meter used to measure the power and energy of an entire installation, typically at the distribution board of an Energy Storage System (ESS) to minimise energy import from, or export to, the grid. It can equally measure the output of a PV inverter, an AC generator, or a dedicated AC load circuit.
The EM24 connects to a Victron GX device, such as a Cerbo GX or Ekrano GX, over a wired Ethernet connection to the local network, so no RS485 wiring run is needed where an Ethernet network already reaches the distribution board. Once connected it is assigned one of four roles in the GX device (grid meter, PV inverter, generator or AC load), and its live data appears on the GX display and the VRM Portal.
The meter connects directly to circuits up to 65 A per phase and carries a built-in LCD with a front joystick for local read-out and configuration. It is a genuine three-phase meter, so a single unit replaces the guesswork of trying to combine several single-phase meters. Built for Victron by Carlo Gavazzi, it is covered by Victron's standard five-year warranty.
PRODUCT DETAILS
- Three-phase energy meter for grid, PV inverter, generator or AC load measurement
- Direct connection up to 65 A per phase, no current transformers required
- Wired Ethernet connection to the GX device local network
- Built-in LCD display with front joystick for local read-out and setup
- Four selectable roles configured directly in the GX device
- Live data shown on GX devices (Cerbo GX, Ekrano GX) and the VRM Portal
- DIN-rail mounting, four-module width
- Class 1 active-energy accuracy to EN 62053-21
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Phases | Three-phase (3-phase, 4-wire) |
| Maximum current | 65 A per phase |
| Communication | Ethernet (RJ45) |
Electrical
| Measurement | Active energy Class 1 (EN 62053-21), accuracy plus or minus 0.5% of reading |
| Current measurement | Direct connection (no current transformers required) |
| Nominal voltage | 230 / 400 VAC (113 to 265 V L-N, 196 to 460 V L-L) |
| Frequency | 50 / 60 Hz |
| Display | Built-in LCD with front joystick |
| Refresh rate | 600 ms |
Physical
| Mounting | DIN-rail, four-module width |
| Dimensions | 71 x 90 x 64.5 mm (W x H x D) |
| Protection category | IP50 (front), IP20 (screw terminals) |
| Weight | Approx. 400 g |
Environmental
| Operating temperature | -25 to +55°C |
