Victron EV Charging Station (22kW)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

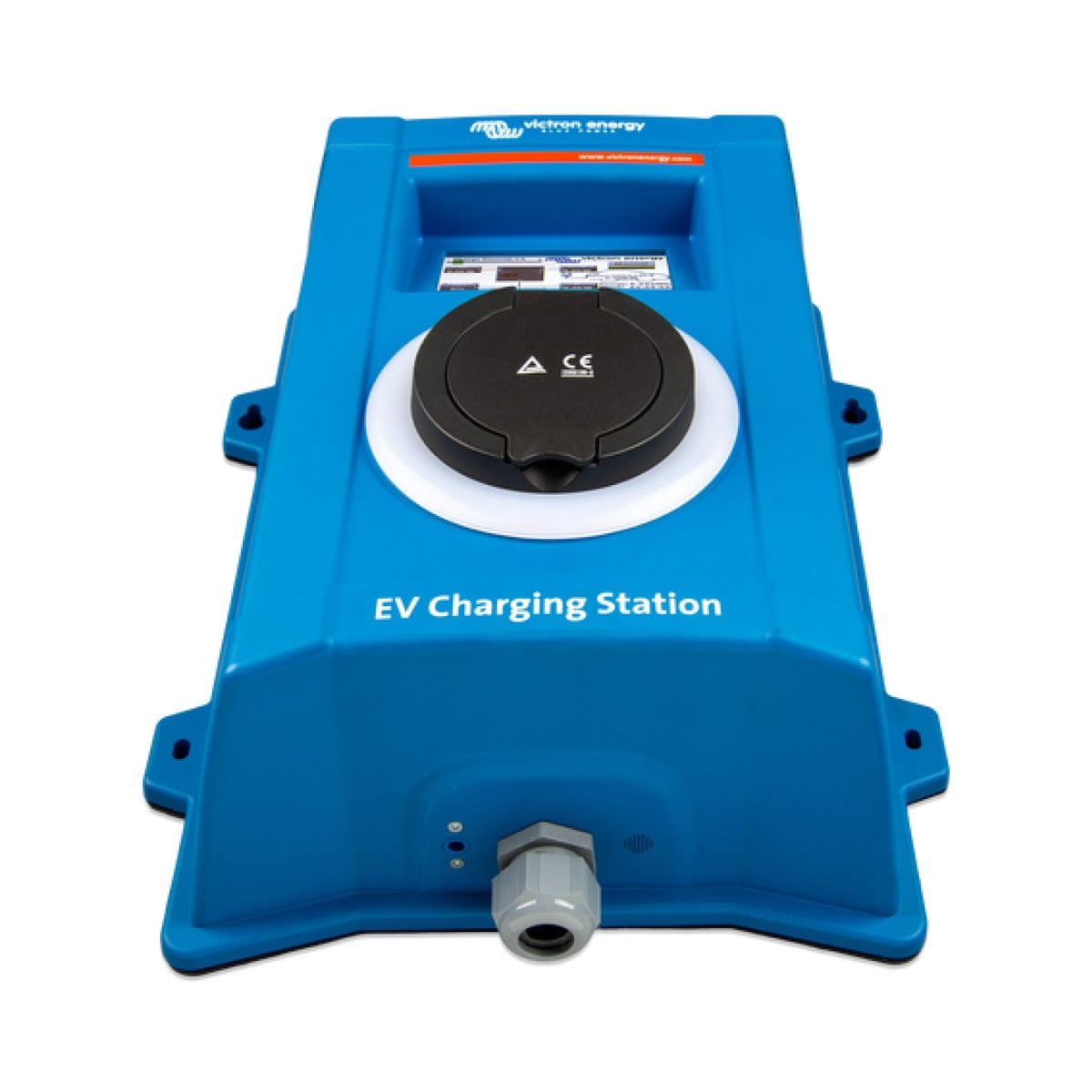

The Victron EV Charging Station is a high-power AC electric-vehicle charger that delivers up to 22 kW in three-phase mode or 7.3 kW in single-phase mode through a Type 2 (IEC 62196) socket. A built-in 4.3-inch LCD touch screen gives on-unit monitoring and control, alongside a fully programmable RGB light ring around the charging port that shows the charger state at a glance.
It is designed to work as part of a Victron system. Setup, configuration and monitoring are handled through VictronConnect over Bluetooth and through the integrated web interface via a WiFi access point or a WiFi LAN. Fully integrated with a Victron GX device and the VRM Portal, it can be controlled and monitored remotely, with real-time and custom reports available over any period.
Three working modes cover most needs. Manual mode sets a fixed charge current between 6 and 32 A, adjustable from the LCD slider or the web page. Automatic mode detects surplus solar power and charges the vehicle with that excess only, maximising self-consumption. Scheduled mode charges at chosen times, for example overnight when grid energy is cheaper. It is covered by Victron's standard five-year warranty.
PRODUCT DETAILS
- Up to 22 kW three-phase or 7.3 kW single-phase AC charging
- Type 2 (IEC 62196) socket, configurable 6 to 32 A output
- Built-in 4.3-inch LCD touch screen for on-unit monitoring and control
- Automatic mode charges from surplus solar power only
- Scheduled mode for charging at cheaper off-peak times
- Full integration and remote control via Victron GX device and VRM Portal
- Setup and monitoring via VictronConnect Bluetooth and built-in WiFi web interface
- Programmable RGB light ring shows charger status at a glance
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Maximum charge power | 22 kW three-phase (7.3 kW single-phase) |
| Phases | Three-phase and single-phase |
| Connector | Type 2 socket (IEC 62196) |
Electrical
| Charge current range | 6 to 32 A per phase (rated 32 A per phase) |
| Operating modes | Manual, Automatic (solar surplus) and Scheduled |
| Connectivity | WiFi 802.11 b/g/n (2.4 GHz), Bluetooth, Modbus TCP over WiFi to GX device |
| Input voltage range | 170 to 265 VAC |
| Means to disconnect | External circuit breaker (40 A recommended), external RCD required |
| Display | Built-in 4.3-inch LCD touch screen |
Physical
| Protection category | IP44 |
| Dimensions | 377 x 307 x 148 mm (H x W x D) |
| Enclosure colour | Blue (RAL 5012) |
| Weight | 3 kg |
Environmental
| Operating temperature | -25 to +50°C |
Standards & Certifications
| Safety | IEC 61851-1, IEC 61851-22 |
