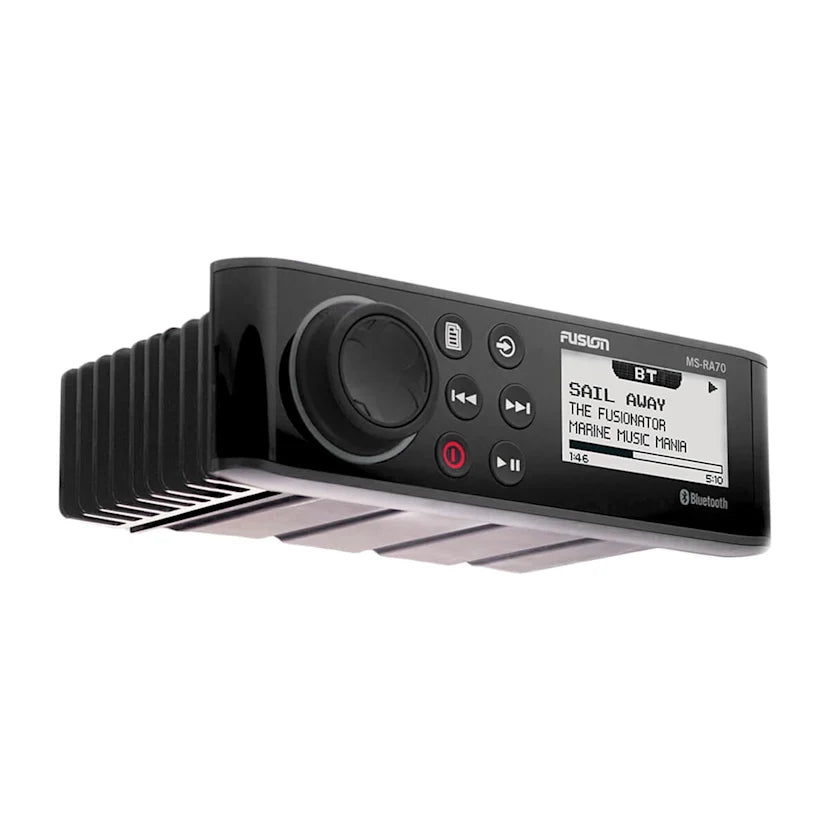

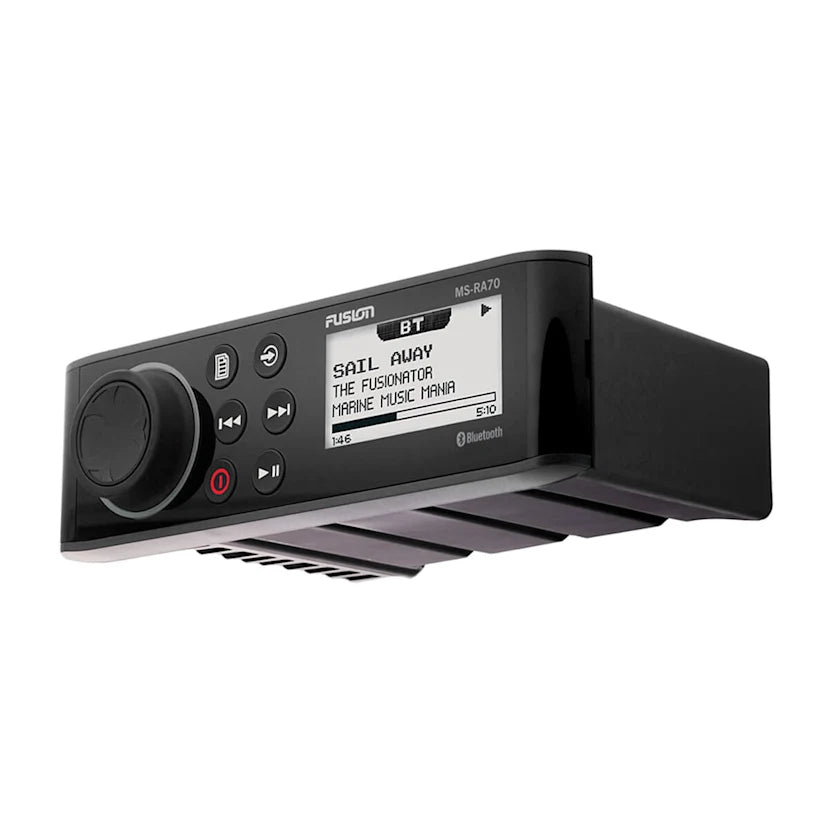

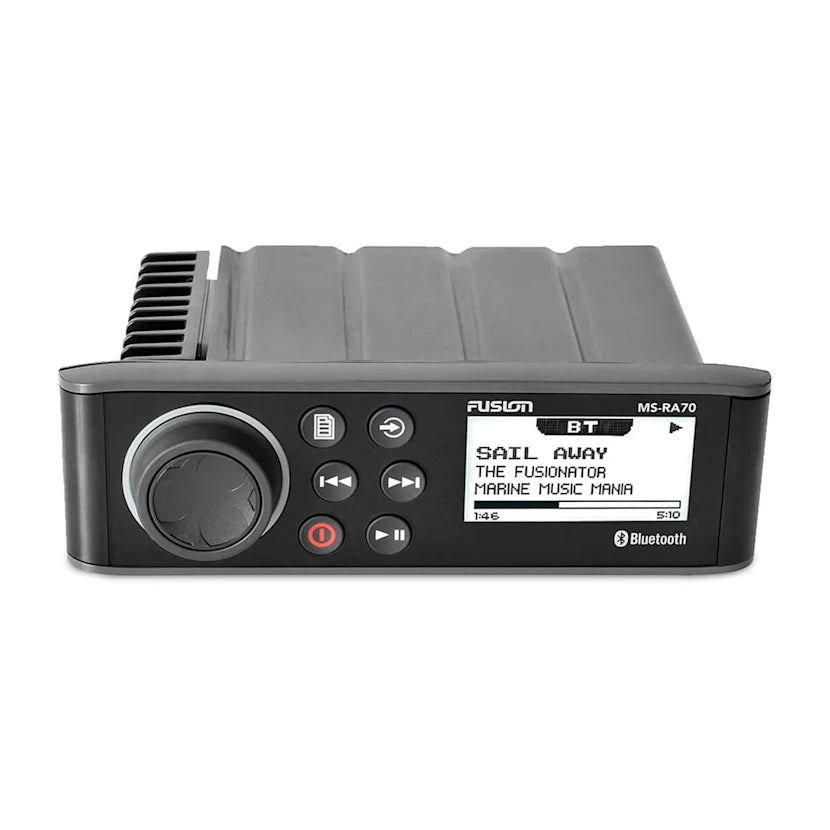

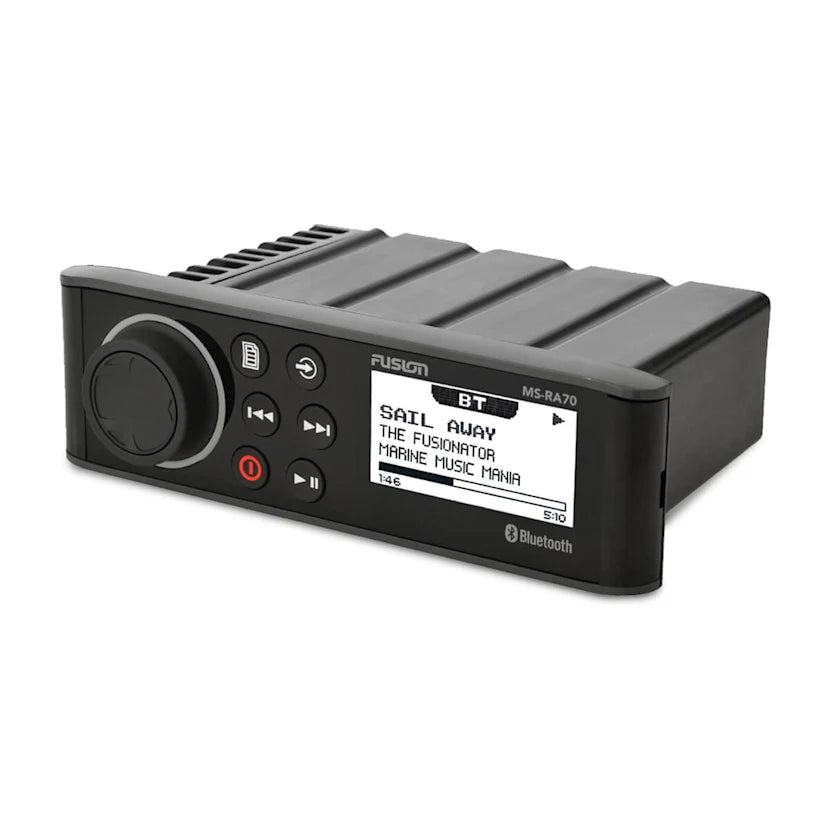

Fusion MS-RA70 Marine Stereo with Bluetooth

Manufacturer Part Number:

010-01516-01

Enquire

£297.49 inc VAT

£247.91 ex VAT

Manufacturer Part Number:

010-01516-01

The Fusion MS-RA70 is the sleekest value-packed marine stereo, designed to deliver a quality on-water entertainment experience by incorporating some of the latest marine technologies. Engineered to seamlessly replace any standard DIN sized non-marinised stereo without the need to reconfigure dash space. Clever styling allows an installer the option of either mounting the stereo with a conventional dash finish or an option to integrate into a glass helm with a flush surface mount, ensuring a high-end installation. Stream your favourite soundtrack from any compatible device with control (Play, pause and skip tracks) available from the stereo or your connected smart phone via the FUSION-Link Bluetooth app. Simply download the free Apple® or Android™ FUSION-Link remote control app for Bluetooth from iTunes™ or Google Play™ and enjoy localised zone control, source navigation, track selection and the freedom of wireless control. Listen to USB MP3 audio, connect your supported smartphone or even relax to your local AM/FM station. The MS-RA70 delivers marine grade entertainment to those who would normally have to result to installing unfriendly and rust prone car audio stereos. With two independent audio zones available, each with advanced localised menu controls, including zone naming, you can easily customise and control your listening experience in each zone. (Line Out/Sub Out requires additional amplification - Linked to Zone 1). The MS-RA70 is also designed and engineered specifically for the marine environment, with an IPX7 front panel (when mounted correctly) to withstand the environment like none other, perfectly paired with an optically bonded LCD for crystal clear display on the high seas. In addition, the MS-RA70 now has added support for FUSION-Link Lite via ANT for Garmin Smart Watch control.

- Amplifier - Class-AB 4 x 50W (@ 4 Ohm)
- Android Open Accessory (AOA) - Android support is limited to devices which support AOA protocol, see supported device list for details
- Audio Format USB - MP3
- Audio Zones - 2 on board amplified zones
- Auxiliary Inputs - 1 x Stereo RCA Input (AUX)
- Bluetooth - A2DP Bluetooth Audio Streaming with AVRCP
- Chassis - Electrically isolated glass filled composite chassis with an aluminium side-fin heat sink with VCT
- DAB+ Ready - MS-DAB100A is required for DAB support, only available where DAB and DAB+ is broadcast
- Display - 128x64 Monochrome Optically Bonded LCD
- FUSION-Link Wireless - Bluetooth remote control is available with the FUSION-Link remote control app available for download from iTunes or Google Play
- Made for iPod and iPhone - supports IAP 2 protocol only
- Line Out - 1 x L+R Linked to Zone 1 (requires amplification)
- Multi-Language User Interface - English, French, German, Spanish, Dutch and Italian
- Nameable Zones - Up to 10 characters
- Subwoofer Out - 1 x Sub Out Linked to Zone 1 (requires amplification)
- Tuner - AM/FM with RDS (where available)
- Tuner Region - USA, Australasia, Europe and Japan
- USB - 1 x USB connector at the rear of the unit, supports 1 amp charging
- Water Resistance - IPX7 waterproof from the front panel when correctly mounted. Rear of the unit is rated IPX3

General
Dimension	7.4" x 2.36" x 4.87" (188 x 60 x 123.5 mm)
Weight	1.23 lbs (556 g)
Water rating	IPX7 (front panel only, when properly installed)
Display	2.6″ optically bonded monochrome LCD
Operating temperature	32° to 122° F (0° to 50° C)
Current (max)	15 A

Networking
NMEA 2000® LEN	See Additional
Bluetooth^® wireless range	Up to 30 ft (10 metres)
ANT^® wireless range	Up to 10 ft (3 metres)
Wireless frequencies/protocols	Bluetooth®: 2.4 GHz @ +1.9 dBm nominal ANT®: 2.4 GHz @ +1.9 dBm nominal

Audio
Amplifier	Class-AB (4 ohm)

Electrical features
POWER INPUT	10.8 - 16 VDC
Compass safe distance	5.9" (150 mm)

Stereo features
Peak power	200 watts
Rated power output (4 Ohm)	26 watts RMS x 4 @ 14.4 V input < 10% THD
Control	Yes (see Additional)
Multi-Zone™️ technology	2 zones
Bluetooth^® wireless technology	Yes
ANT^® wireless technology	Yes
SiriusXM-ready	See Additional
DAB+ ready	See Additional
Supports NRX wired remote	See Additional
Multi-language interface	Dutch, English, French, German, Italian, Spanish
Software updates	USB
Warranty	1year

Sources
Supported sources	AM, FM, Bluetooth®, USB audio, iPhone®, iPod®, AUX x1, AOA MS-RA70NSX: SiriusXM-Ready (U.S. only, requires optional SiriusXM Connect vehicle tuner) MS-RA70 and MS-RA70N: DAB+ ready (available in Europe and Australia only)

Connections
Auxiliary inputs (RCA)	1
NMEA 2000® ports	1 (MS-RA70N and MS-RA70NSX only)
USB 2.0 ports	1
SiriusXM ports	1 (MS-RA70NSX only)
AM/FM ports (Motorola antenna connector)	1
Speaker connections	4 (2 zone amplified)
RCA Pre-out (left, right and subwoofer)	2 zones (requires external amplification)
Line out	2 (L + R per zone, requires external amplification)
Subwoofer out	Zone (requires external amplification)

Security Information
Security updates until at least (YYYY-MM-DD)	2018-12-12

Additional
Additional	NMEA 2000® LEN: 1 (50 mA), MS-RA70N and MS-RA70NSX only Fusion-Link™ control: MS-RA70: smart device and Garmin watch; MS-RA70N and MS-RA70NSX: MFD, smart device and Garmin watch SiriusXM-ready: MS-RA70NSX only DAB+ ready: MS-RA70 and MS-RA70N only Supports NRX wired remote: MS-RA70N and MS-RA70NSX only
