Victron GlobalLink 520
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

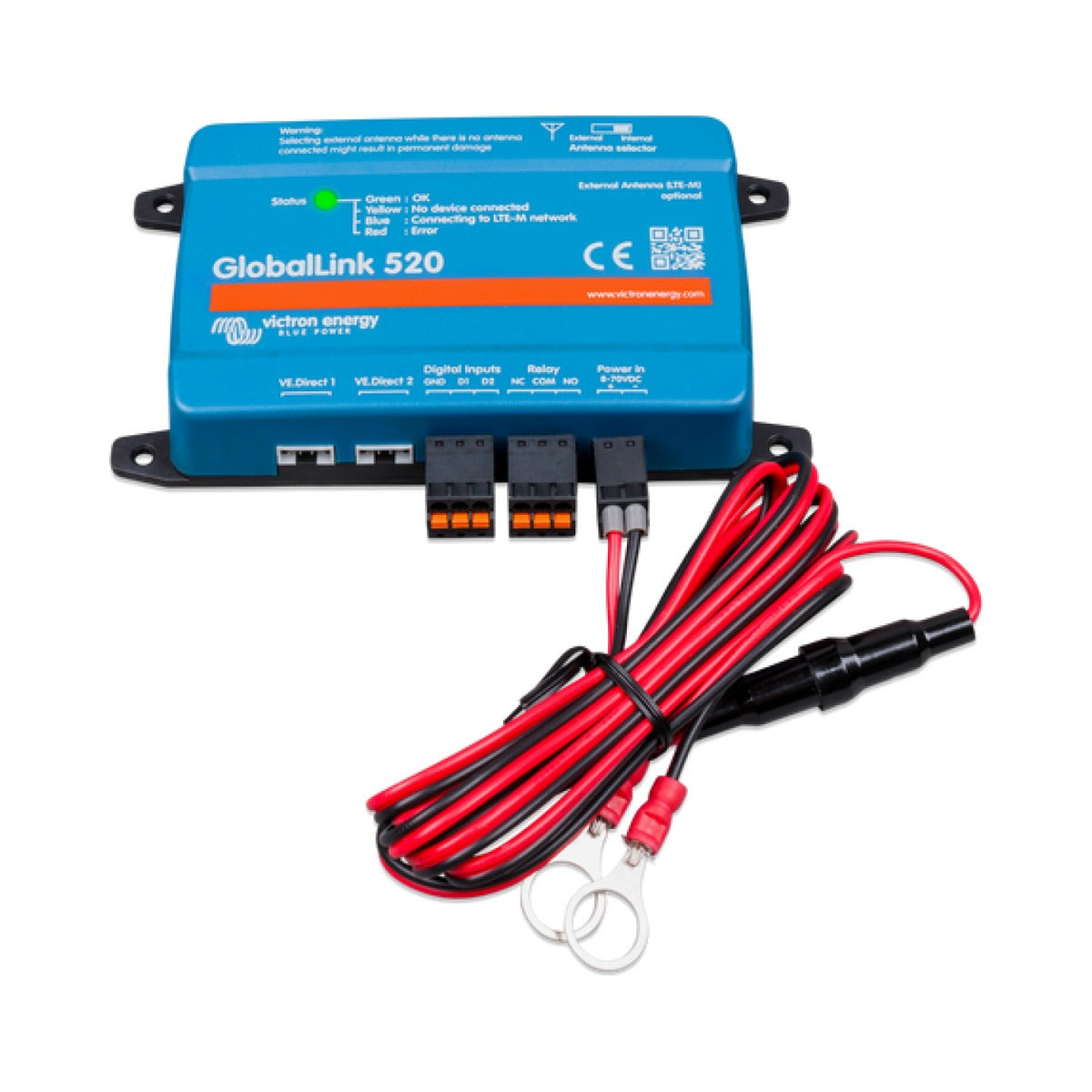

The GlobalLink 520 connects a remote Victron system, or individual Victron products, to the free VRM online portal so the installation can be monitored from anywhere in the world. Battery voltage and state of charge, power consumption, PV and generator harvest, temperatures and alerts are all visible online, with no display or separate router needed.
What sets the GlobalLink apart is its prepaid SIM: the unit ships with a 1nce data SIM carrying five years of 4G LTE-M connectivity, so there is nothing to buy or maintain to get a system online. It links to two hardwired VE.Direct products and up to ten additional Victron Smart devices over Bluetooth, and supports Ruuvi wireless sensors for temperature, humidity and pressure.
The unit is wall mountable and runs from the 8 to 70 VDC system supply. A built-in relay and two digital inputs allow basic remote signalling, and Bluetooth makes setup straightforward through the VictronConnect app.
PRODUCT DETAILS
- Connects a remote Victron system to the free VRM monitoring portal
- Prepaid 1nce SIM with five years of 4G LTE-M connectivity included
- Two isolated VE.Direct ports plus Bluetooth for up to 10 Smart devices
- Ruuvi sensor support for temperature, humidity and pressure in VRM
- One changeover relay and two digital inputs for remote signalling
- Wall mountable; runs from the 8 to 70 VDC system supply
- Custom SIM supported; internal antenna with SMA for an optional external aerial
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Device type | 4G LTE-M remote monitoring gateway (no display) |
| Supply voltage | 8 to 70 VDC |
| Connectivity | 4G LTE-M (CAT M1) cellular with prepaid SIM; Bluetooth; 2x VE.Direct |
| Power draw | Average with relay open at 12 V: 50 mA (20 mA Bluetooth disabled); 24 V: 26 mA; 48 V: 14 mA |
Electrical
| Relays | 1x changeover (NO/NC); DC up to 30 VDC: 2 A; AC: 0.5 A at 125 VAC |
Communication ports
| VE.Direct ports | 2 (always isolated) |
| Bluetooth | Yes; connects up to 10 additional Victron Smart devices via BLE |
I/O
| Digital inputs | 2 |
Cellular & GPS
| Antenna connector | Internal antenna and SMA connector for optional external LTE-M antenna |
| SIM card | Prepaid 1nce data SIM with 5 years of connectivity included; custom SIM supported |
Physical
| Dimensions (h×w×d) | 123 × 67 × 23 mm |
Operating conditions
| Operating temperature range | -20 to +50 °C |
