Victron Ekrano GX
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

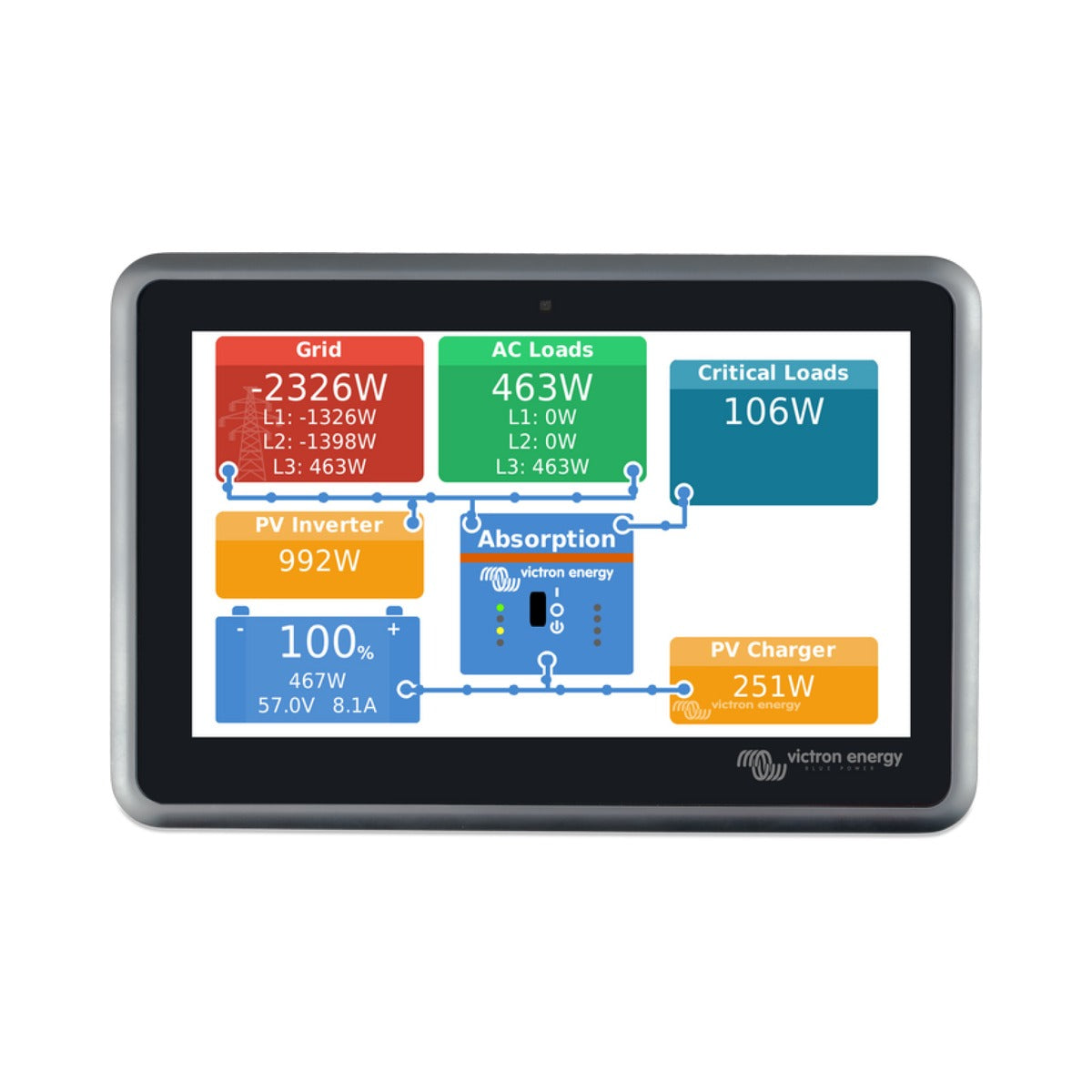

The Ekrano GX combines a Victron system controller with a built-in seven-inch touchscreen in a single unit. It gathers data from the connected inverters, chargers, MPPT solar controllers, battery monitors and tank senders, shows the whole system on its own screen and logs it to the free VRM online portal for remote monitoring.
Because the display is integrated, no separate touchscreen is needed at the helm. The colour screen has an ambient light sensor that dims the backlight automatically, and a recessed button on the back disables touch input where that is wanted. Connections include three VE.Direct ports, VE.Bus, two independent VE.Can ports, Ethernet, 2.4 GHz Wi-Fi and two USB-A ports, along with three tank inputs, two temperature inputs, two digital inputs and two programmable relays.
The Ekrano GX is built for panel-integrated flush mounting or blind-hole mounting using the included accessories, with an IP54 front when fitted with the steel bracket. It runs on a wide 8 to 70 VDC supply.
PRODUCT DETAILS
- GX system controller with a built-in seven-inch (1024 x 600) touchscreen
- No separate display needed; monitor and control directly on the unit
- Logs all system data to the free VRM online portal for remote monitoring
- Two independent VE.Can ports and three isolated VE.Direct ports
- Ethernet, 2.4 GHz Wi-Fi and two USB-A ports, with Bluetooth for setup
- Three tank-level, two temperature and two digital inputs, plus two relays
- Ambient light sensor dims the screen automatically
- Flush or blind-hole panel mounting with an IP54 front
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Device type | System controller with built-in display |
| Display | 7 inch touchscreen (built in) |
| Supply voltage | 8 - 70 |
| Connectivity | Ethernet, Wi-Fi (2.4 GHz), Bluetooth, VE.Can, VE.Bus, VE.Direct |
| Power draw | 6.2 W @ 12V display on, 2.6 W @ 12V display off |
| Protection category (IP) | Front: IP54 (steel bracket) / IP31 (springs); Back: IP21 |
Electrical
| Relays | 2 x NO/NC; DC up to 30VDC: 3A, AC: 1A 125VAC |
Communication ports
| VE.Direct ports | 3 (max. possible VE.Direct devices: 25) |
| VE.Bus | 1 bus with 2 paralleled RJ45 sockets (isolated) |
| VE.Can | VE.Can 1 isolated, VE.Can 2 non-isolated |
| Ethernet | Yes |
| Wi-Fi | Yes, 2.4 GHz (2.412 - 2.462 GHz) |
| Bluetooth | Yes (setup and networking only; 2.402 - 2.48 GHz) |
| USB host ports | 2 x USB-A (max. 1.5A @ 5V combined) |
I/O
| Resistive tank level inputs | 3 |
| Temperature sense inputs | 2 |
| Digital inputs | 2 (with pulse counting) |
Display
| Display resolution | 1024 x 600 |
Physical
| Dimensions (h×w×d) | 124 x 187 x 29.8 |
Operating conditions
| Operating temperature range | -20 to +50 |
