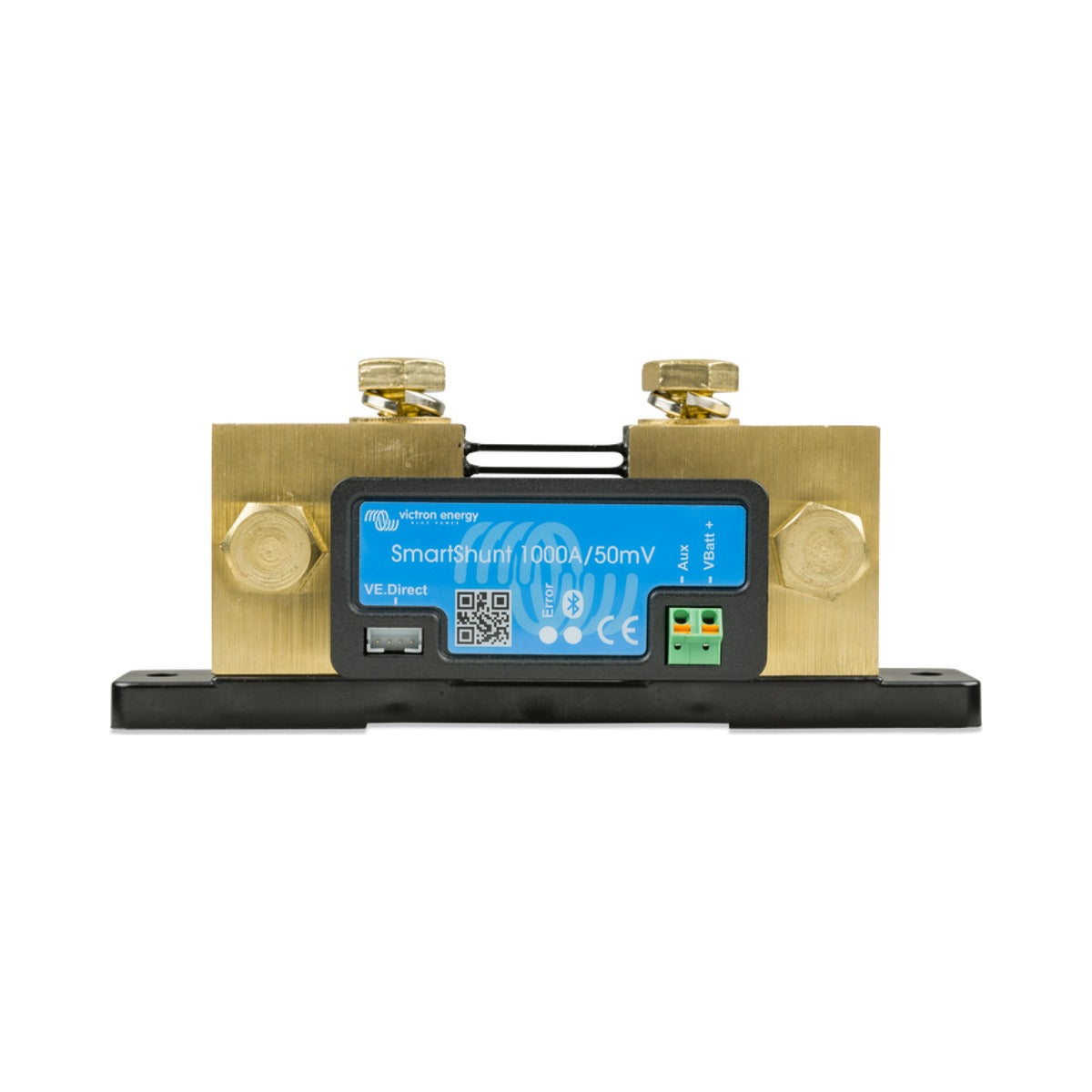

Victron SmartShunt IP65 1000A Battery Monitor
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron SmartShunt IP65 1000 A is a water-resistant, all-in-one battery monitor without a display. Your phone or tablet acts as the screen: it connects over built-in Bluetooth to the VictronConnect app, where you can read state of charge, time to go, voltage, current and full historical data for the battery bank.
The IP65 housing makes it suited to exposed and damp installations on deck, in engine spaces and in machinery compartments. On this version the shunt is attached directly to the monitor unit, and pre-fitted cables make wiring straightforward: the shunt sits in the negative line of the battery bank, with a positive sense lead and an auxiliary input that can monitor a second battery voltage, a midpoint, or battery temperature with the optional sensor.
A VE.Direct cable with socket is fitted so the unit can be read by a Victron GX device such as the Cerbo GX, bringing battery data into a wider system display and VRM remote monitoring. A separate VE.Direct cable is needed to make that connection. The 1000 A rating suits large house banks and inverter systems that draw high currents.
PRODUCT DETAILS
- IP65 water-resistant housing for exposed and damp marine installations
- 1000 A shunt attached directly to the monitor unit for simpler wiring
- Built-in Bluetooth to the free VictronConnect app, which acts as the display
- Reads state of charge, time to go, voltage, current and stored history
- Auxiliary input for a second battery, midpoint or temperature monitoring
- Fitted VE.Direct cable for connection to a Victron GX device and VRM
- Wide 6.5 to 70 VDC supply range suits 12, 24 and 48 V systems
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Shunt rating | 1000 A |
| Supply voltage range | 6.5 - 70 VDC |
| Bluetooth | Yes, built-in |
| Display | No (VictronConnect app) |
| Protection category (IP) | IP65 |
Electrical
| Current draw | < 1 mA |
| Battery capacity range | 1 - 9999 Ah |
| Auxiliary input | Second battery voltage, midpoint, or temperature |
| Bistable relay | No relay |
Resolution & accuracy
| Current resolution | ± 0.01 A |
| Voltage resolution | ± 0.01 V |
| State of charge resolution | ± 0.1 % |
| Current measurement accuracy | ± 0.4 % |
| Voltage measurement accuracy | ± 0.3 % |
Connectivity
| VE.Direct port | Yes |
Physical
| Dimensions (h×w×d) | 68 x 168 x 75 mm |
| Shunt connection bolts | M10 |
Operating conditions
| Operating temperature range | -40 to +50 °C |
