Mastervolt

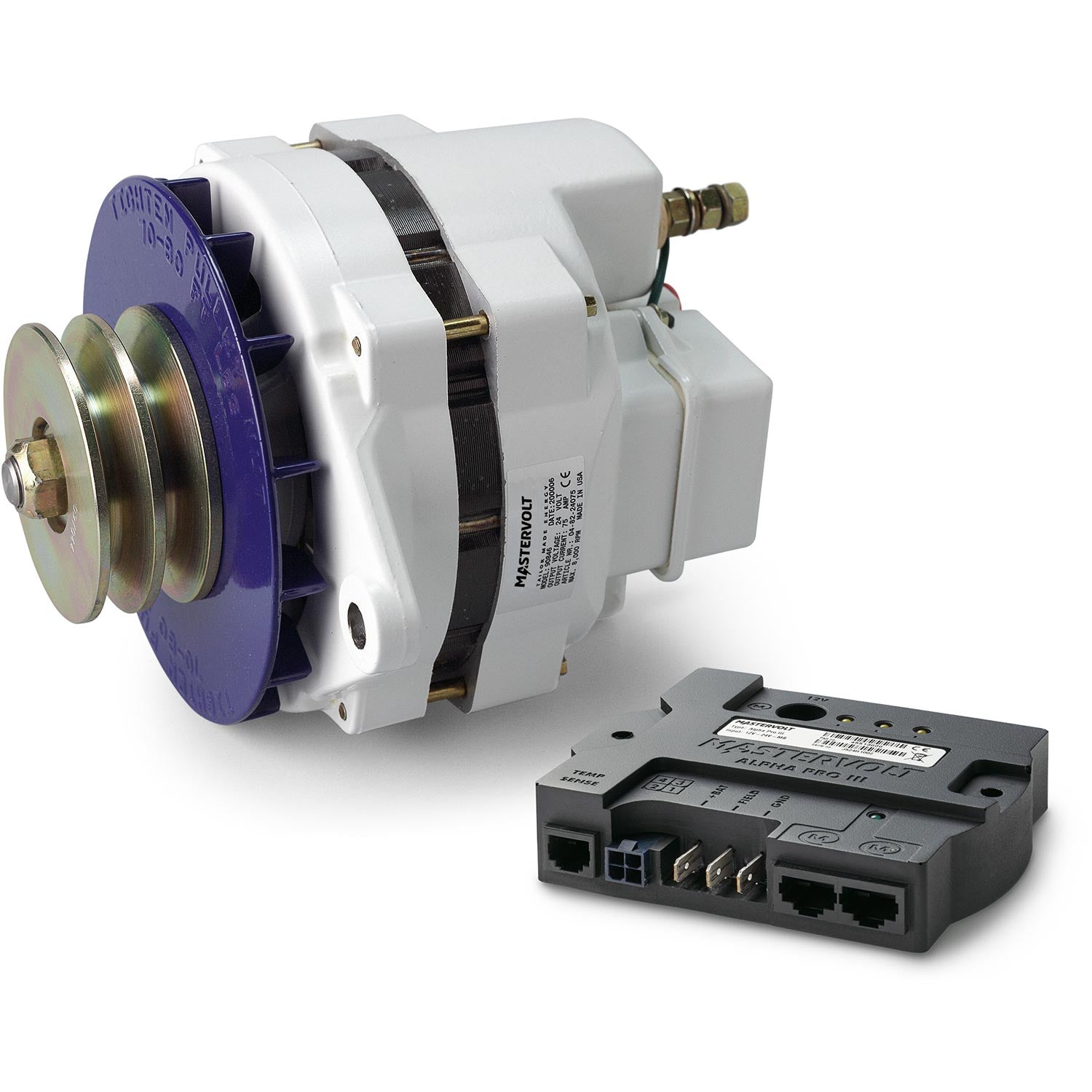

Mastervolt Alpha 24/75 III Alternator with 3-Stage Charge Regulator
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Mastervolt Alpha 24/75 III is a 24 volt, 75 amp marine alternator designed to charge starter and service batteries quickly and completely while powering every consumer on board. It is supplied as standard with the Alpha Pro III charge regulator for a fully temperature-controlled three-stage charge that protects the batteries and extends their life.
Like the rest of the Alpha range it is built for powerful charging even at low engine rpm, where a standard alternator would only reach its rated output at high speed, and forced fan cooling keeps output high in temperatures above 40 degrees. This model has been superseded by the Alpha 24/110 III; it remains documented here for owners of existing installations and for spares.
PRODUCT DETAILS
- 24 V output rated at 75 A total charge current
- Supplied as standard with the Alpha Pro III three-step charge regulator
- Fast, powerful charging even at low engine rpm
- Forced fan cooling maintains output above 40 degrees C
- Isolated operation for safe, flexible installation
- Multiple fixing points for customised alternator brackets
- Superseded by the Alpha 24/110 III
- Alpha 24/75 III alternator (24 V / 75 A)
- Alpha Pro III charge regulator
- Plug and play connection cable (wiring loom)
- Battery temperature sensor with 6 m cable (supplied with the Alpha Pro III)
No compatible transducers listed for this product.
No compatible products found.
General specifications
| Charge regulation | an Alpha Pro III regulator comes standard with all models |
| Total charge current | 75 A |
| Belt section | 2xA |
| Isolated operation | yes |
| Rotational direction | 2 |
| Mounting | six o clock |
| Dimensions | see Downloads for drawings |
| Weight | 10.1 kg (22.3 lb) |
Technical specifications
| Charge voltage Absorption | 28.5 V |
| Charge voltage Float | 26.5 V |
| Nominal diameter pulley | 89 mm (3.5 inch) |
