Mastervolt Alpha Compact Alternator 28/150 and Regulator (24V)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

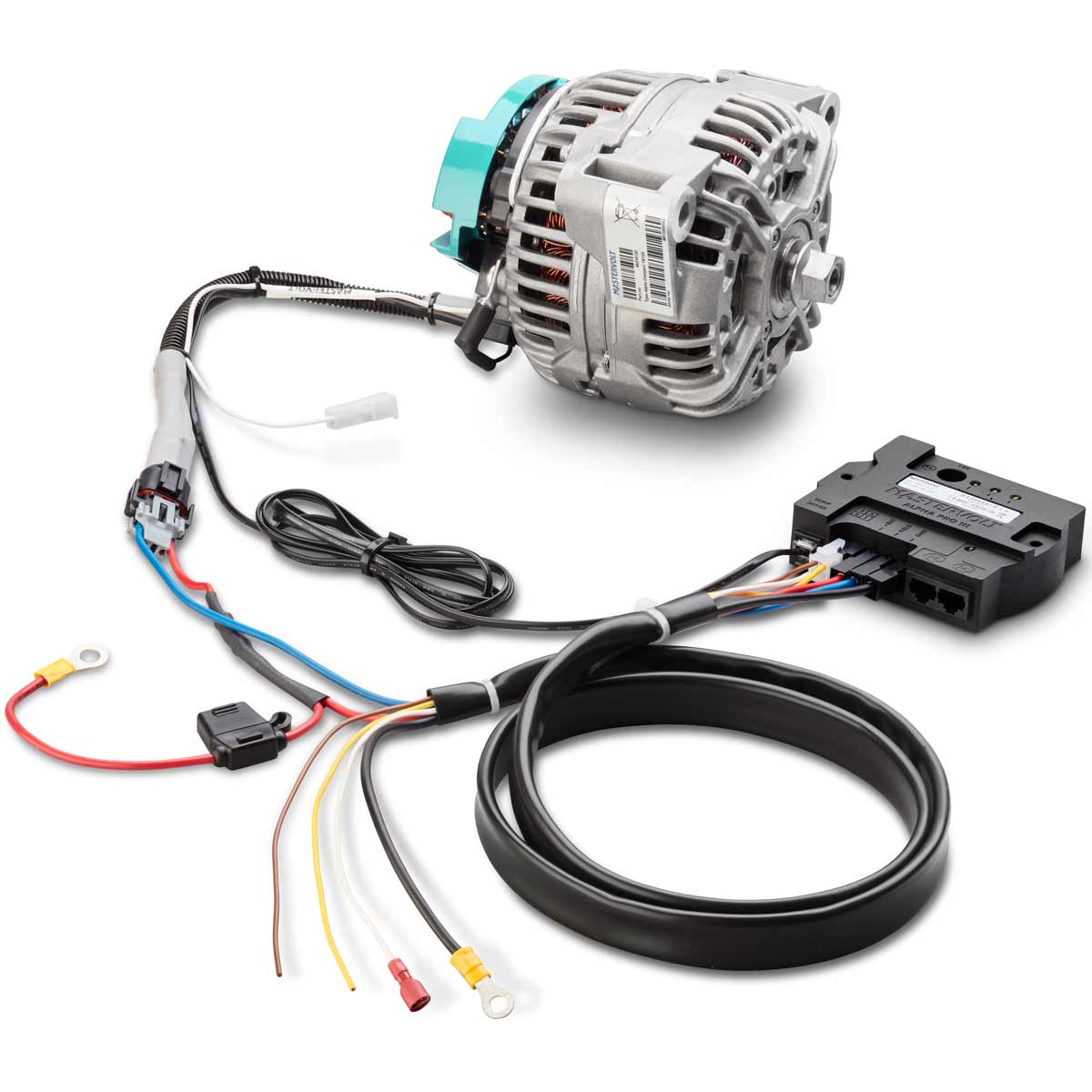

The Mastervolt Alpha Compact 28/150 is a high-output 24 volt, 150 amp automotive-style alternator supplied as standard with the Alpha Pro III charge regulator. Together they form a plug-and-play, MasterBus-enabled three-step charging solution that is optimised for continuous high power output and suitable for all battery types, including lithium ion.
Its open construction with double internal fans and an integrated temperature sensor makes it up to 40 percent lighter and 25 percent more compact than a conventional alternator, with up to 30 percent lower fuel consumption. It can be added as a second (Power Take Off) alternator or fitted in place of the stock unit. The cable and electronics are protected against oil, moisture and dirt, and it is built to original equipment quality with a full two-year warranty.
PRODUCT DETAILS
- 24 V output rated at 150 A nominal current
- Plug-and-play solution with Alpha Pro III regulator included
- Up to 40 percent lighter and 25 percent more compact than conventional alternators
- Up to 30 percent lower fuel consumption
- High charge current at idle rpm
- Integrated dual fan cooling with built-in temperature sensor
- Suitable for high ambient temperatures and all battery types including lithium ion
- Cable and electronics protected against oil, moisture and dirt
- Supplied without pulley; a range of multigroove pulleys is available
- Alpha Compact 28/150 alternator (24 V / 150 A)
- Alpha Pro III charge regulator
- Battery temperature sensor with 6 m cable
No compatible transducers listed for this product.
Mastervolt Alpha Compact Pulley Multigroove 8 Ribs (57.4mm OD)
Mastervolt Alpha Compact Pulley Multigroove 6 Ribs (49.8mm OD)
Mastervolt Alpha Compact Pulley Multigroove 6 Ribs (56.2mm OD)
Mastervolt Alpha Compact Pulley Multigroove 6 Ribs (55mm OD)
Mastervolt Alpha Compact Pulley Multigroove 8 Ribs (56mm OD)
Mastervolt Alpha Compact Pulley Multigroove 8 Ribs (50mm OD)
Mastervolt Alpha Compact Pulley Multigroove 8 Ribs (66.1mm OD)
Mastervolt Alpha Compact Pulley Multigroove 8 Ribs (48.1mm OD)
Mastervolt Alpha Compact Pulley Multigroove 2x 8 Ribs (66.1mm OD)
Mastervolt Alpha Compact B+ Adapter (M10)
Mastervolt Alpha Compact 28/150 and 28/110 Isolating Kit
No compatible products found.
General specifications
| Charge regulation | an Alpha Pro III charge regulator comes standard with all models |
| Isolated operation | yes, with optional isolation bushings |
| Rotational direction | clockwise |
| Galvanic isolation | non-isolated |
| Cooling | integrated dual fan |
| Mounting | swivel arm |
| Pulley included | no |
| Weight | 7.9 kg (17.4 lb) |
Technical specifications
| System voltage | 24 V |
| Nominal current (at 6000 rpm, 25 C) | 150 A |
| Charge current (at 1800 rpm, 25 C) | 28 A |
| Cut-in speed | 1700 rpm |
| Max. rotational speed | 16000 rpm |
| Power Take Off (kW / hp) | 8.4 / 11.4 |
| Max. operating temperature | 120 C (248 F) |
| Connections | positive output stud = 2x M8; W (rpm) signal connection = isolated fast-on; field current connection = Mastervolt plug |
| Temperature sensor | integrated, RJ12 connection |
