Mastervolt Battery Watch System / Isolator Switch (12V / 24V)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

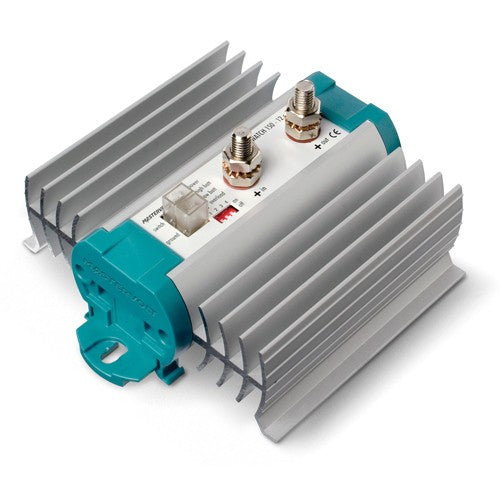

The Mastervolt Battery Watch is an electronic battery switch with built-in protection against overvoltage and deep discharge. Acting as a 600 gram electronic watchdog, it monitors the condition of the battery and disconnects the load before the battery is damaged, helping to extend battery life considerably. It can also be used as a main battery isolation switch.
LED lights give a clear read-out of the battery status, and the undervoltage cut-off point is set with DIP switches so the unit can be matched to the installation. It works on 12 V or 24 V systems and handles a maximum DC load of 150 A.
Construction is corrosion-proof, with aluminium heat sinks and the electronic components encased in synthetic material. The synthetic end plates carry the connection lugs, and solid bolt connections with nuts and locking rings make installation quick and secure.
PRODUCT DETAILS
- Electronic battery switch and watchdog
- Protects against overvoltage and deep discharge
- Can also be used as a main battery isolation switch
- Suitable for 12 V and 24 V systems
- Maximum DC load 150 A
- Adjustable undervoltage cut-off via DIP switches
- LED status indication
- Corrosion-proof casing with aluminium heat sinks
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Input voltage range | 8-32 V |
| Max. DC load | 150 A |
Technical
| Switch off under voltage 12 V | 9-12 V |
| Switch off under voltage 24 V | 18-24 V |
Physical
| Dimensions (HxWxD) | 157 x 140 x 80 mm |
| Weight | 0.6 kg |
