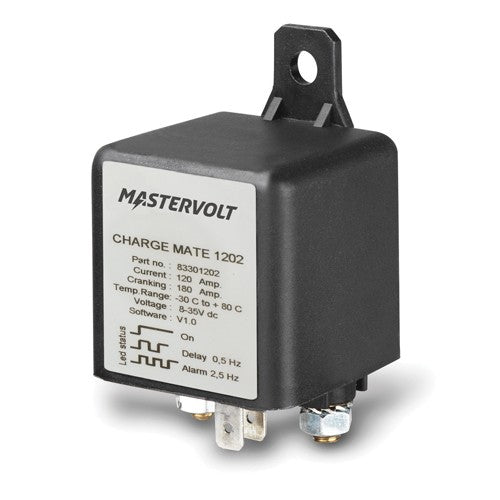

Mastervolt Charge Mate 1202 Split Charge Relay (12V / 24V / 120A)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Mastervolt Charge Mate 1202 is a voltage-sensing split charge relay for boats and vehicles with a second battery. It connects the start and service batteries together while the engine or charger is running, so both batteries are charged, then automatically isolates them when discharging so the domestic loads cannot flatten the engine start battery.
Compact and easy to fit, the Charge Mate 1202 is especially practical for smaller systems. It works automatically on 12 V or 24 V installations and handles a maximum current of 120 A. The relay closes once the source voltage rises above the switch-on threshold and opens again when the voltage falls, requiring no manual operation.
PRODUCT DETAILS
- Automatic voltage-sensing split charge relay
- Combines 2 batteries during charging, isolates when discharging
- Prevents the start battery being drained by domestic loads
- Works automatically on 12 V or 24 V systems
- Maximum current 120 A
- Compact, ideal for small systems
- Electro-mechanical relay
- Protection degree IP21
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Battery voltage | 12/24 V |
| Max. current | 120 A |
| Compliance | CE |
Technical
| Power consumption | Switch open: < 1 mA at 12/24 V DC |
| Inrush current (250 ms) | 2000 A |
| Switch on voltage | 13-15 V (12 V) / 26-30 V (24 V) |
| Switch on delay | 5 sec |
| Switch off voltage | < 12.75 V (12 V) / < 25.5 V (24 V) |
| Switch off delay | No |
| Relay | Electro-mechanical |
| Temperature range (ambient) | -40 C to 65 C |
| Protection degree | IP21 |
Physical
| Dimensions (HxWxD) | 76 x 46 x 46 mm |
| Weight | 0.125 kg |
