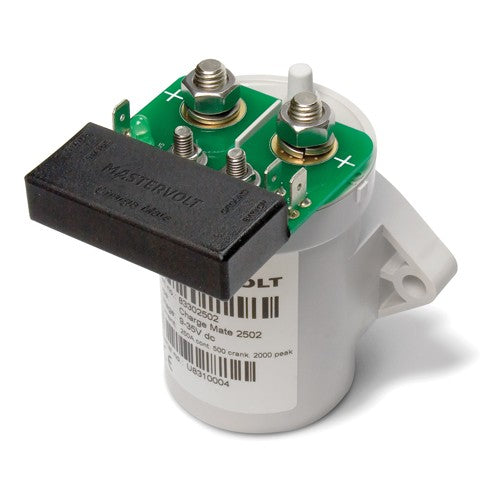

Mastervolt Charge Mate 2502 Split Charge Relay (12V / 24V / 250A)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Mastervolt Charge Mate 2502 is a voltage-sensing split charge relay for boats and vehicles with a second battery. It connects the start and service batteries together while the engine or charger is running, so both batteries are charged, then automatically isolates them when discharging so the domestic loads cannot flatten the engine start battery.
The 2502 adds selectable operating modes: on, off, auto and start assist, the latter allowing the batteries to be combined to give extra cranking power. With a high 500 A current rating it suits larger small-craft installations while remaining compact and easy to fit. It works automatically on 12 V or 24 V systems.
PRODUCT DETAILS
- Automatic voltage-sensing split charge relay
- Combines 2 batteries during charging, isolates when discharging
- Four modes: on, off, auto and start assist
- Start-assist mode for extra cranking power
- Works automatically on 12 V or 24 V systems
- High 500 A current rating
- Electro-mechanical relay
- Protection degree IP21
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Battery voltage | 12/24 V |
| Max. current | 500 A |
| Number of modes | on, off, auto, start assist |
| Compliance | CE |
Technical
| Power consumption | Switch open: < 1 mA at 12/24 V DC |
| Inrush current (250 ms) | 2000 A |
| Switch on voltage | 13-15 V (12 V) / 26-30 V (24 V) |
| Switch on delay | 30 sec |
| Switch off voltage | < 12.25 V... > 15 V (12 V) / < 25.5 V... > 30 V (24 V) |
| Switch off delay | 3 minutes |
| Relay | Electro-mechanical |
| Temperature range (ambient) | -40 C to 60 C |
| Protection degree | IP21 |
Physical
| Dimensions (HxWxD) | 90 x 80 x 85 mm |
| Weight | 0.65 kg |
