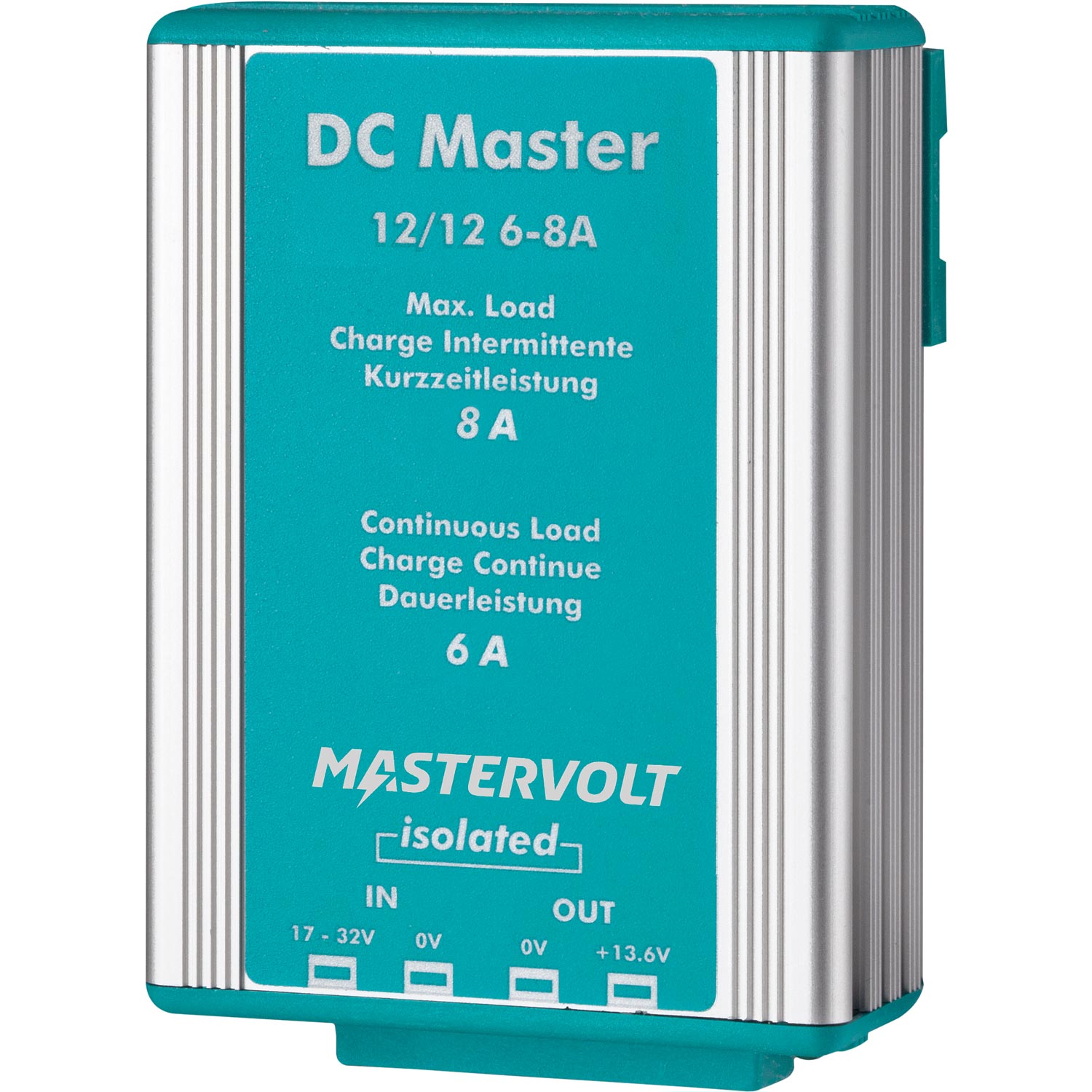

Mastervolt DC Master Voltage Converter (Isolated / 12V - 12V DC / 6A)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The DC Master 12/12-6 Isolated is a DC-DC converter that provides a stable 13.6 V output from a 12 V battery system, supplying up to 6 A continuously. Because input and output are the same nominal voltage, it is used mainly to create a clean, separate 12 V supply rather than to change voltage, which is ideal for sensitive electronics or for separating circuits within a 12 V installation.
As an isolated model it provides full galvanic isolation between the input and output circuits. This makes it extra touch-proof and suppresses interference for sensitive equipment, and it can be used with negative or positive grounding. The converter also provides two minutes of extra capacity, delivering up to 8 A for short intervals when a brief power boost is needed.
The unit is stabilised, naturally cooled and rated to IP53. It is delivered complete with a mounting bracket, screws and fasteners for quick installation.
PRODUCT DETAILS
- Isolated 12 V to 12 V DC-DC converter with full galvanic isolation
- Creates a clean, separate 12 V supply for sensitive electronics
- Stabilised 13.6 V output at 6 A continuous
- Two minutes of extra capacity up to 8 A for short power boosts
- Extra touch-proof with interference suppression
- Suitable for negative or positive grounding, IP53 with natural cooling
- Supplied with mounting bracket, screws and fasteners
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Nominal input voltage | 12 V |
| Input voltage range (max.) | 10-15.5 V DC (16 V) |
| Nominal output voltage | 13.6 V |
| Continuous output current | 6 A |
| Max. output current (for 2 min. intervals) | 8 A |
| Nominal output power | 82 W |
| Max. output power | 108 W |
| Galvanic isolation | Yes |
| Stabilised | Yes |
| Compliance | CE |
Technical
| DC consumption | < 15 mA |
| Connections | Fast-on |
| Temperature range (ambient temp.) | -25 °C to 80 °C, derating > 30 |
| Cooling | Natural cooling |
| Protection degree | IP53 |
Physical
| Dimensions (H x W x D) | 127 x 87 x 50 mm |
| Weight | 0.44 kg |
