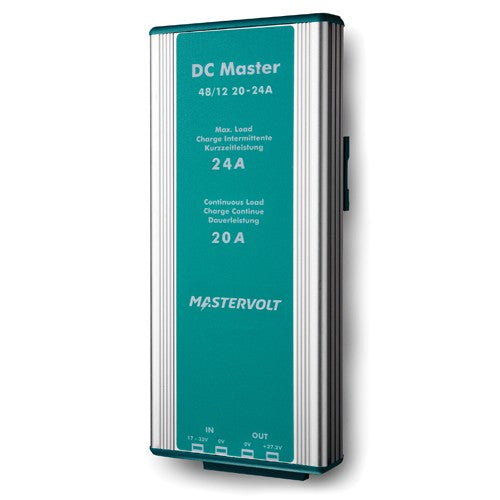

Mastervolt DC Master Voltage Converter (Non-Isolated / 48V - 12V, 20A)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The DC Master 48/12-20 is a non-isolated DC-DC converter that delivers a stable 13.6 V output from a 48 V battery system, supplying up to 20 A continuously to onboard 12 V equipment. It is intended for recreational and semi-professional installations where the main system runs at 48 V while onboard consumers need a reliable 12 V supply.
As a non-isolated model there is a direct electrical connection between the input and output, which keeps costs and heat generation low. It is well suited to systems with negative earthing. The converter also provides two minutes of extra capacity, delivering up to 24 A for short intervals when a brief power boost is needed.
The unit is stabilised, naturally cooled and rated to IP53. It is delivered complete with a mounting bracket, screws and fasteners for quick installation.
PRODUCT DETAILS
- Non-isolated 48 V to 12 V DC-DC converter with direct input/output connection
- Stabilised 13.6 V output at 20 A continuous
- Two minutes of extra capacity up to 24 A for short power boosts
- Low heat generation and high efficiency
- Suited to systems with negative earthing
- IP53 protection with natural cooling
- Supplied with mounting bracket, screws and fasteners
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Nominal input voltage | 48 V |
| Input voltage range (max.) | 40-62 V DC (65 V) |
| Nominal output voltage | 13.6 V |
| Continuous output current | 20 A |
| Max. output current (for 2 min. intervals) | 24 A |
| Nominal output power | 272 W |
| Max. output power | 326 W |
| Galvanic isolation | No |
| Stabilised | Yes |
| Compliance | CE |
Technical
| DC consumption | < 25 mA |
| Connections | Fast-on |
| Temperature range (ambient temp.) | -25 °C to 80 °C, derating > 30 |
| Cooling | Natural cooling |
| Protection degree | IP53 |
Physical
| Dimensions (H x W x D) | 217 x 87 x 50 mm |
| Weight | 0.77 kg |
