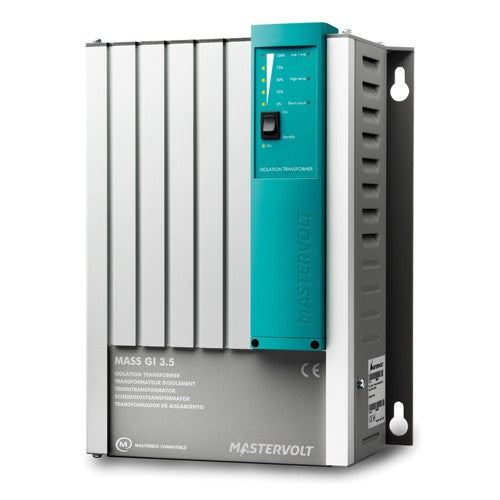

Mastervolt Mass Gi 3.5 Isolation Transformer (3500VA / 230V)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Mass GI 3.5 provides a galvanic electrical isolation between shore power and the on board power, preventing electrical corrosion of metal parts while keeping the vessel earthed. It is a safe connection between vessel and shore installation and an essential part of any onboard electrical system.
Built with the latest high-frequency switching technology, the Mass GI 3.5 is 75% lighter and 60% smaller than low-frequency transformers. An integrated Soft Start handles peak loads when connecting to the grid, while LED lights on the casing indicate load and overload. The unit can be remote controlled and is MasterBus compatible.
Its robust aluminium casing allows fitting in any position on wall or floor. No rubber mountings are necessary because the unit does not vibrate or hum, and professional connections with strain relief cable glands ensure a reliable installation. Units can be parallel coupled for higher capacity: two 16 A/3.5 kW units give 32 A/7 kW, and four units give 64 A/14 kW.
PRODUCT DETAILS
- Galvanic isolation between shore power and onboard power prevents electrical corrosion of metal parts
- Ultra modern high-frequency electronic switch technology
- 75% lighter and 60% smaller than low-frequency transformers
- Integrated Soft Start function for peak loads when connecting to the grid
- Accepts wide input range: 90 to 255 V and 45 to 65 Hz
- Units can be parallel coupled for higher capacity (up to 14 kW with four units)
- Robust aluminium casing fits in any position; no rubber mountings needed
- MasterBus compatible and remote controllable
No compatible transducers listed for this product.
No compatible products found.
General
| Power 230 V (120 V) | 3500 VA (1920 VA) |
| Nominal input current (230 V) | 16 A |
| Output voltage (+/- 5%) | 90-255 V |
| Output frequency range | 45-65 Hz |
| Input voltage range | 90-255 V |
| Input frequency range | 45-65 Hz |
| Galvanic isolation | Yes |
| Efficiency | > 93 % |
| Parallel configuration | to 4 units parallel (= 14 kW) |
| Compliance | CE, ABYC |
Physical
| Dimensions, hxwxd | 340 x 261 x 144 mm |
| Weight | 6 kg |
| Protection degree | IP23 |
Technical
| Technology | High frequency |
| Earth leakage protection | No |
| No-load power consumption | 22 W |
| Temperature range (ambient temp.) | 0 C to 40 C, derating power > 40 |
| Cooling | Variofan |
| Switch off at | 80 C |
| Operating humidity | max. 95 % |
| Switch off behaviour | breaker B-characteristic |
| Soft start | Yes |
| MasterBus compatible | Yes |
