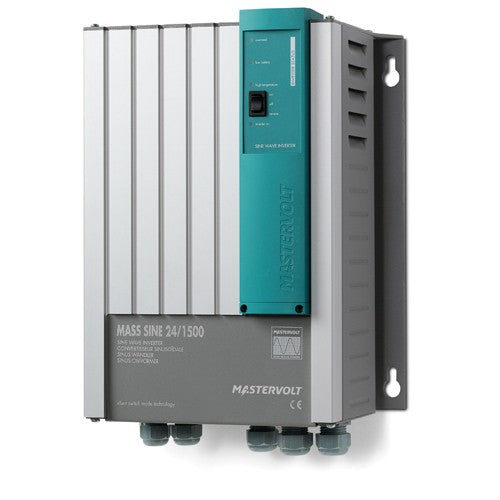

Mastervolt Mass Sine Inverter (24V / 1500W / 50Hz)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Mastervolt Mass Sine 24/1500 is a professional pure sine wave inverter that turns 24 V battery power into a clean 230 V 50 Hz supply. Part of the Mass series that has proven itself in the most extreme conditions for 30 years, it delivers dependable round-the-clock output for the toughest tasks and any application that demands a reliable power source.
High-frequency switch mode technology keeps operation silent, while a generous 2900 W peak capacity starts power-hungry and inductive loads with ease. An automatic economy mode and 92 per cent efficiency stretch battery runtime, and galvanic isolation ensures a safe, professional AC output. Choosing an independent inverter also gives you complete freedom over your battery charging and solar equipment.
The Mass Sine is MasterBus compatible through an Inverter Interface or AC Power Analyser, allowing control from an EasyView display or the C4-RI remote panel, and its robust connections make installation in built-in and mobile systems quick and secure.
PRODUCT DETAILS
- Pure sine wave 230 V / 50 Hz output for sensitive equipment
- 1200 W continuous power at 40 C, 1500 W P30 rating
- High 2900 W peak capacity for heavy inrush loads
- High-frequency technology prevents humming and zooming
- Automatic economy mode and 92 per cent efficiency for longer runtime
- Galvanic isolation for safe, professional AC output
- MasterBus compatible via Inverter Interface or AC Power Analyser
- Full capacity at temperatures up to 40 C
- Robust professional connections for fast, safe installation
- Mass Sine inverter unit
- User manual
No compatible transducers listed for this product.
General specifications
| Output voltage (± 5 %) | 230 V - 50 Hz (± 0.01 Hz) |
| Output waveform | true sine |
| Nominal battery voltage | 24 V |
| Recommended battery capacity | > 150 Ah |
| Continuous power at 40 °C / 104 °F, cos phi 1 | 1200 W |
| P30 power at 40 °C, cos phi 1 | 1500 W |
| Peak load | 2900 W |
| AC connection | internal |
| Galvanic isolation | yes |
| Efficiency | 92 % |
| Display/read-out | LED display |
| Compliance | CE, E-mark, ABYC A-31 |
Technical specifications
| Technology | HF switch mode |
| Low battery voltage, switches off at | 19 V, ± 0.5 V |
| Low battery voltage, switches on at | 22 V, ± 0.5 V |
| High battery voltage, switches off at | 32 V, ± 0.5 V |
| High battery voltage, switches on at | 30 V, ± 0.5 V |
| Max. ripple on DC (battery) | 5% RMS |
| Input current (nominal load) | 68 A |
| No-load power consumption (ON mode) | 200 mA – 5 W |
| No-load power consumption (energy saving mode) | 25 mA – 0.6 W |
| Minimal DC fuse (slow blow) | 100 A |
| Minimal cable size | 25 mm² |
| Harmonic distortion | typical < 5% |
| Cos phi | all power factors allowed |
| Temperature range (ambient temp.) | -25 °C to 80 °C, derating > 40 |
| Cooling | natural/forced |
| Protection degree | IP23 |
| Protections | over temperature, over load, short circuit, high/low battery voltage |
| MasterBus compatible | yes, using a MasterBus Inverter Interface or AC power analyser |
Physical
| Dimensions, hxwxd | 340 x 261 x 130 mm (13.4 x 10.3 x 5.1 inch) |
| Weight | 6.2 kg (13.7 lb) |
