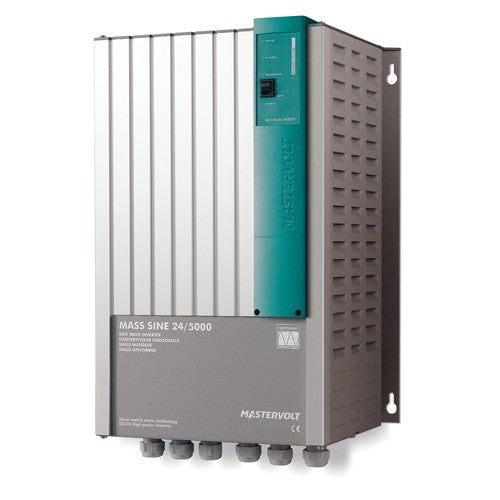

Mastervolt Mass Sine Inverter (24V / 5000W / 50Hz)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Mastervolt Mass Sine 24/5000 is a heavy-duty professional pure sine wave inverter that converts 24 V battery power into a clean 230 V 50 Hz supply. As the flagship of the Mass series proven in extreme conditions for 30 years, it delivers continuous, reliable output for the most demanding professional and semi-professional installations.
Silent high-frequency switch mode technology pairs with a formidable 9000 W peak capacity, so even the heaviest inductive and electrical loads start without difficulty. An automatic economy mode and 92 per cent efficiency conserve battery energy, while galvanic isolation provides a safe, professional AC output. Choosing an independent inverter leaves you free to size your own battery charging and solar equipment.
The Mass Sine is MasterBus compatible through an Inverter Interface or AC Power Analyser, integrating with an EasyView display or the C4-RI remote panel, and its robust connections support a fast, secure installation in built-in and mobile systems.
PRODUCT DETAILS
- Pure sine wave 230 V / 50 Hz output for sensitive equipment
- 4000 W continuous power at 40 C, 5000 W P30 rating
- Very high 9000 W peak capacity for heavy inrush loads
- High-frequency technology prevents humming and zooming
- Automatic economy mode and 92 per cent efficiency for longer runtime
- Galvanic isolation for safe, professional AC output
- MasterBus compatible via Inverter Interface or AC Power Analyser
- Full capacity at temperatures up to 40 C
- Robust professional connections for fast, safe installation
- Mass Sine inverter unit
- User manual
No compatible transducers listed for this product.
General specifications
| Output voltage (± 5 %) | 230 V – 50 Hz (± 0.01 Hz) |
| Output waveform | true sine |
| Nominal battery voltage | 24 V |
| Recommended battery capacity | > 400 Ah |
| Continuous power at 40 °C / 104 °F, cos phi 1 | 4000 W |
| P30 power at 40 °C, cos phi 1 | 5000 W |
| Peak load | 9000 W |
| AC connection | internal |
| Galvanic isolation | yes |
| Efficiency | 92 % |
| Display/read-out | LED display |
| Compliance | CE, E-mark, ABYC A-31 |
Technical specifications
| Technology | HF switch mode |
| Low battery voltage, switches off at | 19 V, ± 0.5 V |
| Low battery voltage, switches on at | 22 V, ± 0.5 V |
| High battery voltage, switches off at | 32 V, ± 0.5 V |
| High battery voltage, switches on at | 30 V, ± 0.5 V |
| Max. ripple on DC (battery) | 5% RMS |
| Input current (nominal load) | 230 A |
| No-load power consumption (ON mode) | 250 mA – 6 W |
| No-load power consumption (energy saving mode) | 50 mA - 1.2 W |
| Minimal DC fuse (slow blow) | 1x 250 A or 2x 125 A |
| Minimal cable size | 2x 70 mm² |
| Harmonic distortion | typical < 5% |
| Cos phi | all power factors allowed |
| Temperature range (ambient temp.) | -25 °C to 80 °C, derating > 40 |
| Cooling | natural/forced |
| Protection degree | IP23 |
| Protections | over temperature, over load, short circuit, high/low battery voltage |
| MasterBus compatible | yes, using a MasterBus Inverter Interface or AC power analyser |
Physical
| Dimensions, hxwxd | 470 x 315 x 254 mm (18.5 x 12.4 x 10.0 inch) |
| Weight | 19 kg (41.9 lb) |
