Mastervolt
Mastervolt MasterBus Carling Switch Input (4-Way)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

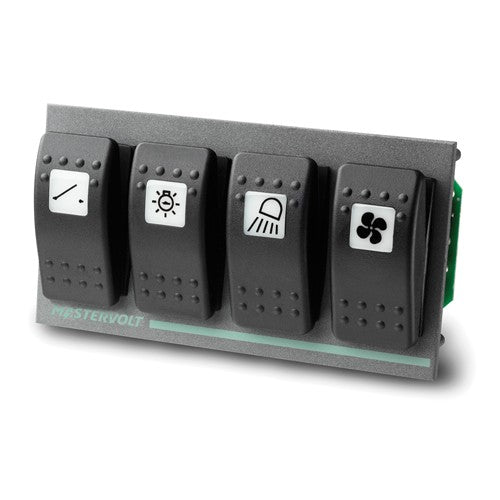

The Mastervolt MasterBus Switch Input 4 (Carling) brings up to four switch inputs into the MasterBus network and adds LED indications for extra feedback, for example flashing the LED when a connected lamp fails. It is designed to work with Carling-style switches and mounting frames, giving a neat, integrated switch panel that ties directly into your Mastervolt system.
The switches and mounting frame are not included and are ordered separately. The unit is supplied with a MasterBus terminator and a manual, and is configured using MasterAdjust software. Note that, unlike most MasterBus interfaces, a MasterBus cable is not included in the box.
PRODUCT DETAILS
- Up to four switch inputs to MasterBus
- LED indications for additional feedback
- Works with Carling-style switches and frames
- Switches and mounting frame ordered separately
- Supplied with MasterBus terminator and manual
- Compact PCB design, IP21 protection
- MasterBus terminator
- Manual
- Switches and mounting frame not included
No compatible transducers listed for this product.
No compatible products found.
General
| MasterBus powering | No |
| Delivered with | MasterBus terminator, manual; switches and mounting frame not included |
Physical
| Distance between switches | 27.3 mm |
| Dimensions incl. mounting frame (h x w x d) | 56 x 120 x 65 mm |
| Weight | 0.045 kg |
Technical
| Protection degree | IP21 |
