Mastervolt

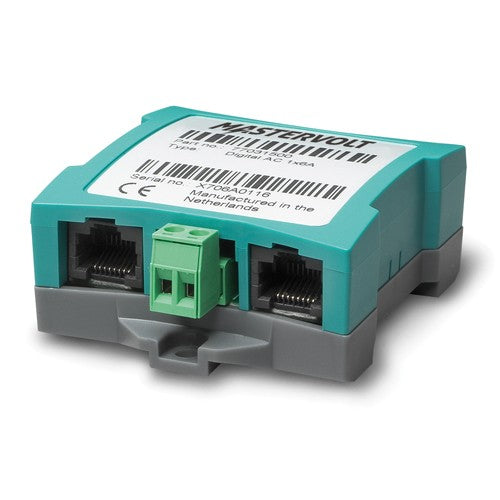

Mastervolt MasterBus Digital AC Switch (1 x 6 Amp)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Mastervolt MasterBus Digital AC 1x6A lets you switch AC loads from anywhere in your MasterBus network, wherever the load happens to be located. Loads up to 6 A can be switched directly by the built-in relay, while higher loads can be controlled through an external relay. This makes it a versatile way to bring AC circuits under intelligent, networked control.
The single-pole relay is rated at 6 A at 230 V AC. The unit is supplied with a MasterBus cable, a MasterBus terminator and a manual, and shares the compact, IP21-rated housing of the wider MasterBus interface range. Configuration is carried out using MasterAdjust software.
PRODUCT DETAILS
- Switch AC loads from anywhere on the MasterBus network
- Switches loads up to 6 A directly
- Higher loads switched via an external relay
- Single-pole relay rated 6 A at 230 V AC
- Supplied with MasterBus cable and terminator
- Compact housing, IP21 protection
- MasterBus cable
- MasterBus terminator
- Manual
No compatible transducers listed for this product.
No compatible products found.
General
| Max. relay current | 6 A (230 V AC single pole) |
| MasterBus powering | No |
| Delivered with | MasterBus cable, MasterBus terminator, manual |
Physical
| Dimensions (h x w x d) | 66 x 78 x 32 mm |
| Weight | 0.08 kg |
Technical
| Protection degree | IP21 |
