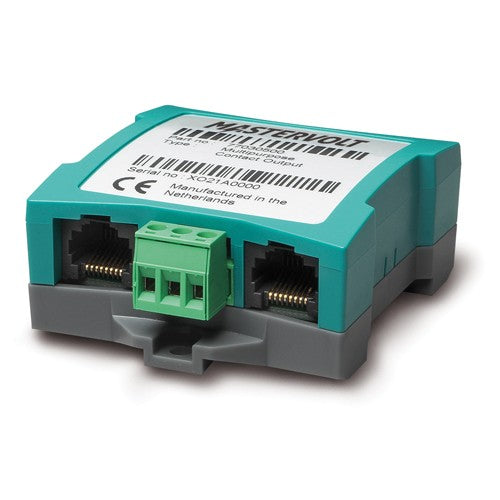

Mastervolt MasterBus Multi Purpose Contact Output
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Mastervolt MasterBus Multipurpose Contact Output gives your MasterBus network a programmable, potential-free contact that can be customised to suit a wide range of jobs. Use it, for example, to switch a ventilator on and off or to start and stop a generator, all controlled through the network. It can also raise an alarm notification on the onboard system, for instance on low voltage or loss of AC, and can serve as a CSI alarm contact.
The potential-free NO-C-NC contact is rated at 1 A / 30 V DC. Supplied with a MasterBus cable, MasterBus terminator and user manual, the unit shares the compact, IP21-rated housing of the wider MasterBus interface range and is straightforward to program using MasterAdjust.
PRODUCT DETAILS
- Programmable potential-free contact (NO-C-NC)
- Rated 1 A / 30 V DC
- Switch equipment such as a ventilator or generator
- Alarm notification on low voltage or no AC
- Can be used as a CSI alarm contact
- Supplied with MasterBus cable and terminator
- Compact housing, IP21 protection
- MasterBus cable
- MasterBus terminator
- User manual
No compatible transducers listed for this product.
No compatible products found.
General
| Potential free contact | NO-C-NC – 1 A / 30 V DC |
| MasterBus powering | No |
| Delivered with | MasterBus cable, MasterBus terminator, user manual |
Physical
| Dimensions (h x w x d) | 66 x 78 x 32 mm |
| Weight | 0.08 kg |
Technical
| Protection degree | IP21 |
