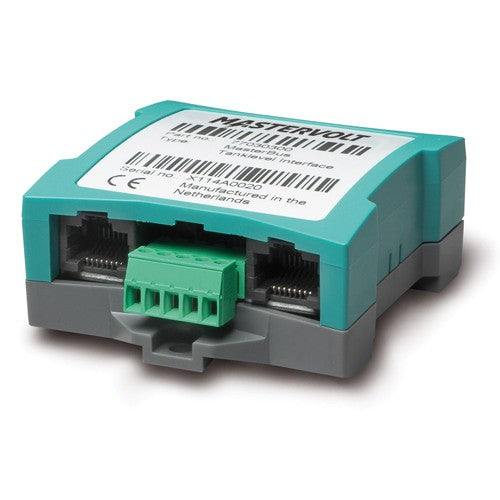

Mastervolt MasterBus Tank Level Interface
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Mastervolt MasterBus Tank Level Interface converts analogue sensor input signals into MasterBus data, bringing tank and sender readings into your Mastervolt system so they can be displayed and used alongside the rest of your power information. Once connected, the data is available throughout the MasterBus network for monitoring on an EasyView 5 or PC.
The interface accepts a range of selectable input signals, 4-20 mA, 0-300 ohms and 8-70 V DC, making it compatible with many common sensor types. It is supplied with a MasterBus cable, MasterBus terminator and user manual, and is housed in the same compact, IP21-rated enclosure as the rest of the MasterBus interface range.
PRODUCT DETAILS
- Converts analogue sensor signals into MasterBus data
- Selectable inputs: 4-20 mA, 0-300 ohm, 8-70 V DC
- Compatible with many common sensor types
- Readings available across the MasterBus network
- Supplied with MasterBus cable and terminator
- Compact housing, IP21 protection
- MasterBus cable
- MasterBus terminator
- User manual
No compatible transducers listed for this product.
No compatible products found.
Technical
| Selectable input signals | 4-20 mA, 0-300 ohm, 8-70 V DC |
| Protection degree | IP21 |
General
| MasterBus powering | No |
| Operating temperature | 0 - 40 °C |
| Delivered with | MasterBus cable, MasterBus terminator, user manual |
Physical
| Dimensions (h x w x d) | 66 x 78 x 32 mm |
| Weight | 0.08 kg |
