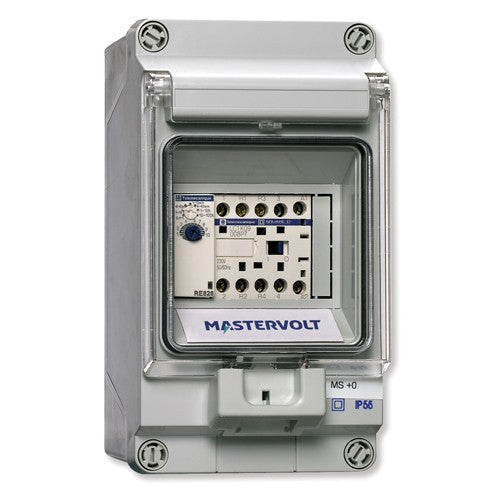

Mastervolt Masterswitch Auto Transfer System (5kW)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Masterswitch 5 kW is an automatic AC transfer system. It takes two AC inputs, for example shore (grid) power and a generator, and automatically switches one of them through to a single AC output group, so the onboard system always draws from the available source without manual changeover.
Switching is fully automatic with an adjustable generator-input time delay of 0 to 10 seconds, and transfer is fast (12 to 22 ms on, 4 to 19 ms off). The 230 V (50/60 Hz) unit accepts 20 A nominal on each input and delivers up to 20 A at the output. It is housed in an IP55 enclosure for reliable operation on board. A Masterswitch Fuses version is also available that includes built-in circuit breakers.
PRODUCT DETAILS
- Two AC inputs (for example grid power and generator)
- One automatically switched AC output
- 230 V (50/60 Hz), 20 A nominal per input and output
- Adjustable generator input time delay 0 to 10 seconds
- Fast transfer time (12-22 ms on, 4-19 ms off)
- IP55 enclosure
- Masterswitch Fuses version available with built-in circuit breakers
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Nominal input voltage | 230 V (50/60 Hz) |
| Input voltage range | 200-250 V |
| Number of inputs | 2 |
| Number of outputs | 1 |
Technical
| Nominal input current generator | 20 A |
| Nominal input current grid | 20 A |
| Nominal current power output | 20 A |
| Time delay generator input | 0-10 sec (adjustable) |
| Transfer time | switch on 12-22 ms / switch off 4-19 ms |
| Power consumption (AC all inputs) | 7 W |
| Automatic circuit breakers | No, system dependent |
| Cable size | 0.5-10 mm2 / AWG 20-7 |
| Temperature range (ambient) | -25 °C to 70 °C |
| Relative humidity | max. 95%, non condensing |
| Protection degree | IP55 |
| MasterBus compatible | No |
Physical
| Dimensions (HxWxD) | 200 x 110 x 115 mm |
| Weight | 1.2 kg |
