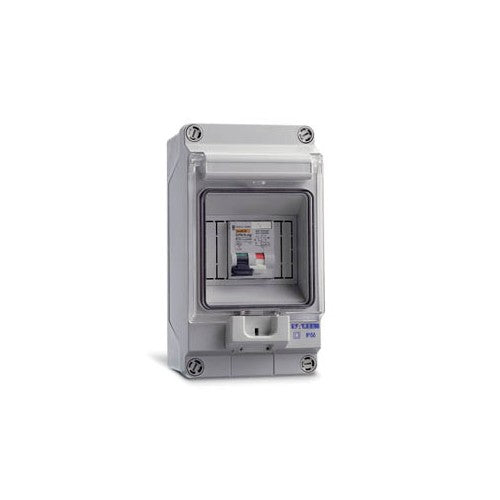

Mastervolt Shore Fix RCD / Leakage Switch (16A)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Mastervolt Shore Fix is a combined fuse and earth leakage circuit breaker (RCD) that forms the basic safety device between the shore power plug and the onboard 230 V system. It continuously monitors the forward and return current, and if the two are no longer equal, for example because of a leakage to earth, the Shore Fix trips instantly to prevent a dangerous situation.
Rated at 16 A with 30 mA sensitivity and a B-characteristic breaker, it offers both residual-current and overcurrent protection in a single compact unit. With a high IP55 protection degree and a 4500 A short-circuit capacity, it is well suited to the demanding marine environment and is certified to CE and KEMA.
PRODUCT DETAILS
- Combined fuse and earth leakage circuit breaker (RCD) in one unit
- Trips instantly if forward and return current become unequal
- 16 A nominal current with 30 mA residual-current sensitivity
- B-characteristic breaker with 4500 A short-circuit capacity
- High IP55 protection degree for the marine environment
- Certified to CE and KEMA
No compatible transducers listed for this product.
No spares or accessories listed for this product.
General
| Nominal input voltage | 230 V |
| Number of inputs | 1 |
| Operating temperature | 0 C to 60 C |
| Compliance | CE, KEMA |
Technical
| Nominal current power output | 16 A |
| Sensitivity | 30 mA |
| Connections | max. 16 mm2 |
| Short circuit capacity | 4500 A |
| Switch off behaviour | breaker B-characteristic (I-mag = 3...5 x I nominal) |
| Protection degree | IP55 |
| Relative humidity | max. 95%, non condensing |
Physical
| Dimensions, hxwxd | 200 x 110 x 115 mm |
| Weight | 0.7 kg |
