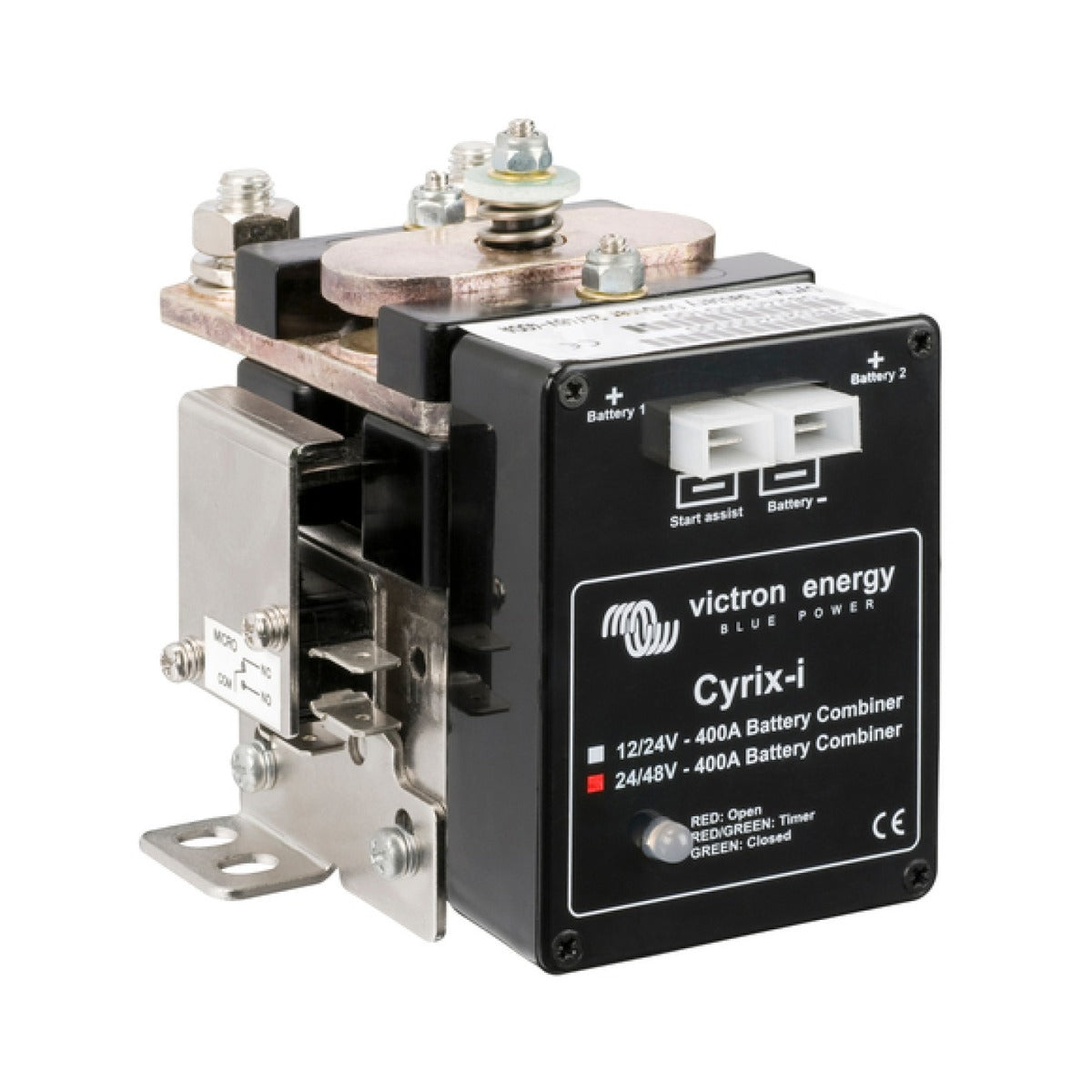

Victron Cyrix-i 12/24V 400A

£298.80
Tax included.
CYR010400000
Heavy duty 400 A intelligent battery combiner for 12/24 V systems, rated to a 2000 A one second peak. Automatically parallels two batteries for charging and isolates them when charging stops, with four selectable switch profiles, a status LED and a remote monitoring micro switch.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The Victron Cyrix-i 12/24-400 is a heavy duty intelligent battery combiner, a microprocessor controlled relay that automatically parallels two batteries for charging and isolates them again when charging stops. It is an ideal, low loss replacement for a diode split charge isolator, so alternator and charger output voltages do not need to be raised.

Rated at 400 A continuous with a 2000 A one second peak, it is built for large marine and vehicle systems, high output alternators and substantial domestic banks. Bidirectional voltage sensing lets it engage whether the charge source is on the starter side or the accessory side, and its dual power supply lets it close even when one battery is too flat to power the relay. A bicolour LED and a micro switch for remote monitoring report its state.

Unlike the smaller Cyrix-ct, the Cyrix-i offers four selectable switch timing profiles so its connect and disconnect behaviour can be matched to charging or inverter applications. It auto ranges between 12 V and 24 V, includes a Start Assist input for emergency parallel starting, and uses intelligent trend detection to avoid unwanted on/off cycling.

PRODUCT DETAILS

  • Microprocessor controlled combiner rated 400 A continuous, 2000 A peak for 1 second
  • Four selectable switch timing profiles for charging or inverter use
  • Intelligent trend detection prevents unwanted on/off cycling
  • Virtually no voltage loss, an ideal replacement for a diode isolator
  • Bidirectional voltage sensing engages from either battery being charged
  • 12/24 V automatic voltage detection
  • Bicolour status LED and micro switch for remote monitoring
  • Start Assist input for emergency parallel starting (engages for 30 seconds)

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Key specifications

Continuous current400 A
System voltage12/24 V auto ranging
TechnologyRelay (microprocessor-controlled)
Peak current2000 A during 1 second

Operation

Input voltage8 to 36 VDC
Connect / disconnect profilesFour selectable switch timing profiles
Over voltage disconnect16 V (32 V)
Start AssistYes, remains engaged for 30 seconds
Status indicationBicolour LED
Micro switch for remote monitoringYes

General

Current consumption when open4 mA

Enclosure

Protection categoryIP54
Dimensions (H x W x D)78 x 102 x 110 mm
Weight0.9 kg

No videos available for this product.

How does the Cyrix-i decide when to combine the batteries?
It monitors the voltage of both batteries. When it senses a charge voltage with a rising trend it engages to parallel the batteries, and it disconnects again when the voltage falls back below the float level, indicating charging has stopped. The exact thresholds depend on which of the four switch profiles is selected.
What do the four switch profiles do?
The Cyrix-i offers four selectable timing profiles that change its connect and disconnect voltages and delays. This lets you tune its behaviour, for example a slower profile for normal charging or a faster profile suited to inverter loads. The profile is set with a switch under the cover.
Does it work on both 12 V and 24 V systems?
Yes. The Cyrix-i 12/24 automatically detects whether it is fitted to a 12 V or a 24 V system, so no manual configuration is needed.
What is the micro switch for remote monitoring?
The unit has a built in micro switch that follows the relay state, so you can wire it to a remote indicator or monitoring system to show whether the batteries are currently combined.
What is the Start Assist function for?
Start Assist lets you parallel the batteries manually using a push button or switch, keeping the relay engaged for 30 seconds. It is useful in an emergency when the starter battery is flat and you want to draw on the domestic battery to start the engine.
