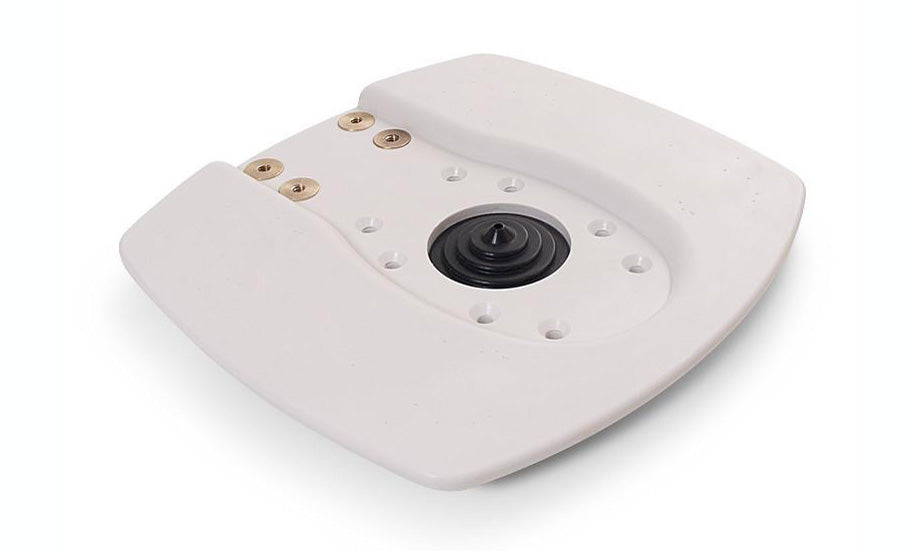

Seaview Top Plate Suitable for Radome Radars and Open Array Radars. M1 Bases
Manufacturer Part Number:
ADA-R1
Manufacturer Part Number:
ADA-R1
Seaview Modular Top Plates are designed to be mounted onto Seaview Modular Mounts ending in "M1" (ex: PMA-57-M1). These Top Plates eliminate the "swiss cheese" look of most other radar and satdome mounts. With Seaview Top Plates the result is only four visible mounting screws to secure electronics.
Fits the following Electronics Make & Model :
- RAYMARINE : RD418D, RD418HD, RD424D, RD424HD, Quantum, Quantum 2, RA1048(S)HD, RA3048(S)HD, Magnum 4", RA1072(S)HD, RA3072(S)HD, Magnum 6"
- GARMIN : FANTOM18, GMR18(HD), GMR18x(HD) , GMR24(HD), GMR24x(HD), FANTOM, 4" - 6" open array radar
- B&G, SIMRAD : 3G, 4G Radar Dome, HALO24, TX06S, TX10S, 4'-6' Halo Open Array Radar, 4' - 6' RB Series Open Array Radar
Home or Marina Delivery
Pick up at Hamble
More Information
If you have selected a modular mount ending in "M1" (ex: PMA-57-M1)use the "For M1 Mounts" column below for the correct Top Plate. Mounts ending in "M2" (ex: PMA-DM2-M2) use "For M2 Mounts" column.
| Make & Model | Part # | Part # | LIGHT BAR |
| For M1 Mounts | For M2 Mounts | Optional | |
| ACR | |||
| RCL50B, RCL75, RCL100, RCL1000 | ADABLANK | ADABLANK | LTB13 or LTBS |
| RCL300 | CALL | CALL | CALL |
| COMNAV | |||
| Explorer V2/V3 | ADAF1 | ADAF1 | LTBS |
| FLIR | |||
| MD324, MD625, M324XP, M324L, M324S, M324CS, M625XP, M625L, M625S, M625CS, M612L, M617CS, M618CS, T200, T300, T400 | ADAF1 | ADAF1 | LTB13 or LTBS |
| M132, M232 Series (Hiko) | ADAF2 | ADAF2 | LTB13 or LTBS |
| FURUNO | |||
|
SC30, SC703, SC1303, DRS4DL, DRS4D, DRS4W, DRS4DNXT |
ADAR1 | ADAR1DMLTB | LTBR |
| DRS6A-NXT | ADAR1 | ADAR1DMLTB | LTBOA or LTBOA6 |
| Open Array Radar 1942 | ADAR2 | ADAR1DMLTB | LTBOA |
| GARMIN | |||
| FANTOM18, GMR18(HD), GMR18x(HD) | ADAR1 | ADAR1DMLTB | LTBR |
| GMR24(HD), GMR24x(HD) | ADAR1 | ADAR1DMLTB | LTBR |
| Fantom, 4'-6' Open Array Radar | ADAR1 | ADAR1DMLTB | LTBOA or LTBOA6 |
| GLOMEX | |||
| 20"-27" Satdome | ADAS1 | ADAS3 | LTBS24 |
| HUMMINBIRD | |||
| HB2124 Chirp Radar | ADAR1 | ADAR1DMLTB | LTBR |
| RH44, RH45 4' - 6' Open Array Radar | ADAR1 | ADAR1DMLTB | LTBOA or LTBOA6 |
| INTELLIAN | |||
| i2 (FB150 in i2 Matching Dome) | ADAS1 | ADAS3 | LTBS |
| i3 (FB150 in i3 Matching Dome) | ADAS1 | ADAS1 | LTBS |
| i4, i4P (FB150 in i4 Matching Dome) | ADAS2 | ADAS2 | LTBS |
| i5 | ADAS2 | ADAS2 | LTBS24 |
| i6, i6P, S6HD, FB500 | ADAS2 | ADAS2 | LTBS24 |
| FB150, FB250 | ADAS4 | ADAS4 | LTBS |
| JRC | |||
| 15" Radar Dome | ADAR1 | ADAR1DMLTB | LTBR |
| 24" Radar Dome | ADAR2 | ADAR1DMLTB | LTBR |
| KODEN | |||
| 18" - 25" Radar Dome | ADAR1 | ADAR1DMLTB | LTBR |
| 4' - 6' Open Array Radar | ADAR1 | ADAR1DMLTB | LTBOA or LTBOA6 |
| KVH | |||
| M1DX, M1, TV1, LTE-1 | ADAS1 | ADAS3 | LTBS |
| M2, M3, M3DX, M3ST, V3, V3-IP, TV3 | ADAS1 | ADAS1 | LTBS |
| M5, TV5, FB250 (18”) | ADAS2 | ADAS2 | LTBS |
| M7, M7SK, HD7, V7, TV6, FB500(26”), F55, V3- IP(24”) | ADAS2 | ADAS2 | LTBS24 |
| V7-IP | CALL | CALL | CALL |
| FB150(10.8”), FB250(14”), Fleet One, Fleet33 | ADAS4 | ADAS4 | LTBS |
| LOWRANCE | |||
| 3G, 4G Radar Dome | ADAR1 | ADAR1DMLTB | LTBR |
| LORENZ | |||
| 12"-24" Radar Dome | ADAR1 | ADAR1DMLTB | LTBR |
| 4'-6' Open Array Radar | ADAR1 | ADAR1DMLTB | LTBOA or LTBOA6 |
| RAYMARINE | |||
| RD418D, RD418HD, RD424D, RD424HD, Quantum, Quantum 2 | ADAR1 | ADAR1DMLTB | LTBR |
| RA1048(S)HD, RA3048(S)HD, Magnum 4’ | ADAR1 | ADAR1DMLTB | LTBOA |
| RA1072(S)HD, RA3072(S)HD, Magnum 6’ | ADAR1 | ADAR1DMLTB | LTBOA6 |
| 33STV | ADAS1 | ADAS3 | LTBS |
| 37STV | ADAS1 | ADAS1 | LTBS |
| 45STV | ADAS2 | ADAS2 | LTBS |
| 60STV | ADAS2 | ADAS2 | LTBS24 |
| T200, T300, T400 | ADAF1 | ADAF1 | LTB13 or LTBS |
| SEA-TEL (COBHAM) | |||
| ST14, FX150 (16.5") | ADAS2 | ADAS2 | LTBS24 |
| C18, FX250 (24") | ADAS2 | ADAS2 | LTBS24 |
| SIMRAD | |||
| 3G, 4G Radar Dome, HALO24 | ADAR1 | ADAR1DMLTB | LTBR |
| DX64S | ADAR2 | N/A | LTBR |
| TX06S | ADAR1 | ADAR1DMLTB | LTBOA |
| TX10S | ADAR1 | ADAR1DMLTB | LTBOA6 |
| 4'-6' Halo Open Array Radar | ADAR1 + ADAHALO3 | N/A | LTBOA or LTBOA6 |
| 4' - 6' RB Series Open Array Radar | ADAR1 | ADAR1DMLTB | LTBOA or LTBOA6 |
| SITEX | |||
| 18" (T760/T921) Radar Dome | ADAR1 | ADAR1DMLTB | LTBR |
| 24" (T761) Radar Dome | ADAR1 | N/A | LTBR |
| 25" Radar Dome | ADAR1 | ADAR1DMLTB | LTBR |
| 4'-6' Open Array Radar | ADAR1 | ADAR1DMLTB | LTBOA or LTBOA6 |
| SIEWA / TECH MARINE | |||
| 12"-24" Radar Dome | ADAR1 | N/A | LTBR |
| 4'-6' Open Array Radar | ADAR1 | N/A | LTBOA or LTBOA6 |
| THRANE & THRANE | |||
| FB150, FB250, Fleet 33, 33+ | ADAS4 | ADAS4 | LTBS |
| Sailor FB500, Fleet 55+ | ADAS1 | ADAS3 | LTBS24 |
