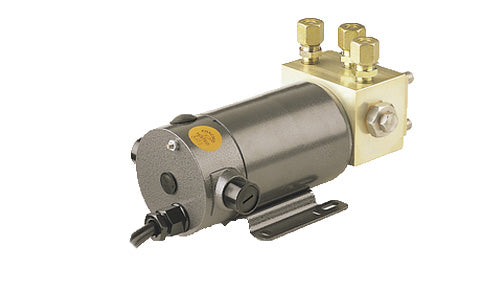

B&G, Simrad RPU300 24v Reversible Hydraulic Pump 290-960 cc
Manufacturer Part Number:
000-13768-001
£889.00
inc VAT
£740.83
ex VAT
Manufacturer Part Number:
000-13768-001
RPU300 Reversible Hydraulic Pump. For Cylinder Displacement of 290-960 cc 24V DC
Home or Marina Delivery
Get it as soon as tomorrow
Enter postcode to check
Pick up at Hamble
Pick it up today
More Information
Autopilot Drive Unit Navigation
RPU80 Specifications
Autopilot
| Cylinder size range | 80-250 cu.cm (4,9-15,2 cu.in.) |
|---|---|
| Max Boat Length | 35 ft |
| Max Pressure | 60 bar |
| Max Stroke | n/a |
Electrical
| Power Consumption, max. | 10A |
|---|---|
| Power Consumption, typical | 4A |
| Recommended Fuse Rating | n/a |
| Supply Voltage | 2-12 VDC from AP Computer |
Environment
| Operating Temperature Range | -15 to +55C (5 to 131F) |
|---|---|
| Shock and Vibration | n/a |
| Storage Temperature Range | -40 to +85C (-40 to +185F) |
| Waterproof rating | IPx2 |
RPU160 Specifications
Autopilot
| Cylinder size range | 160-550 cu.cm (9,8-33,5 cu.in.) |
|---|---|
| Max Boat Length | 35-50 ft |
| Max Pressure | 60 bar |
| Max Stroke | n/a |
Electrical
| Power Consumption, max. | 15A |
|---|---|
| Power Consumption, typical | 6A |
| Recommended Fuse Rating | n/a |
| Supply Voltage | 2-12 VDC from AP Computer |
Environment
| Operating Temperature Range | -15 to +55C (5 to 131F) |
|---|---|
| Shock and Vibration | n/a |
| Storage Temperature Range | -40 to +85C (-40 to +185F) |
| Waterproof rating | IPx2 |
RPU300 12v Specifications
Autopilot
| Cylinder size range | 290-250 cu.cm (17,7-58,5 cu.in.) |
|---|---|
| Max Boat Length | 50-70 ft |
| Max Pressure | 60 bar |
| Max Stroke | n/a |
Electrical
| Power Consumption, max. | 30A |
|---|---|
| Power Consumption, typical | 11A |
| Recommended Fuse Rating | n/a |
| Supply Voltage | 2-12 VDC from AP Computer |
Environment
| Operating Temperature Range | -15 to +55C (5 to 131F) |
|---|---|
| Shock and Vibration | n/a |
| Storage Temperature Range | -40 to +85C (-40 to +185F) |
| Waterproof rating | IPx2 |
RPU300 24v Specifications
Autopilot
| Cylinder size range | 290-250 cu.cm (17,7-58,5 cu.in.) |
|---|---|
| Max Boat Length | 50-70 ft |
| Max Pressure | 60 bar |
| Max Stroke | n/a |
Electrical
| Power Consumption, max. | 15A |
|---|---|
| Power Consumption, typical | 6A |
| Recommended Fuse Rating | n/a |
| Supply Voltage | 4-24 VDC from AP Computer |
Environment
| Operating Temperature Range | -15 to +55C (5 to 131F) |
|---|---|
| Shock and Vibration | n/a |
| Storage Temperature Range | -40 to +85C (-40 to +185F) |
| Waterproof rating | IPx2 |
