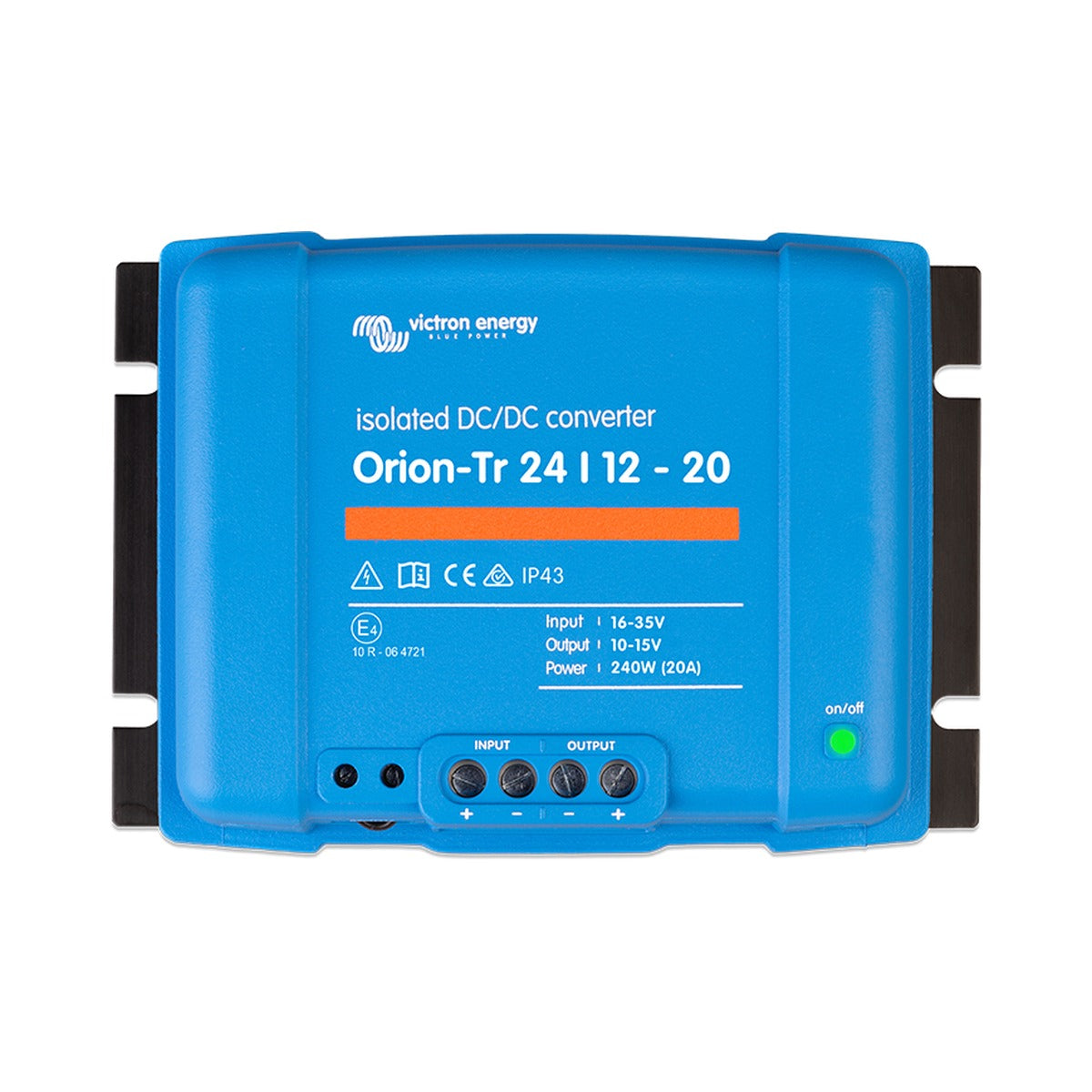

Victron Orion-Tr 24/12-20 (240W) Isolated DC-DC Converter
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron Orion-Tr 24/12-20 (240W) is an isolated DC-DC converter that steps a 24V nominal input down or up to a regulated 12V output, delivering up to 20A continuous at 12.2 V. It provides 240W of continuous output power and uses galvanic isolation of 200VDC between input, output and case, which separates the two circuits and helps suppress ground loops and electrical noise.
The output voltage is adjustable across 10-15 V, so the unit can be trimmed to suit the connected equipment. It is not intended for battery charging, as it has no charge algorithm. For charging a battery from a second source, Victron recommends an Orion-Tr Smart DC-DC charger instead. The converter is short circuit proof and an unlimited number of units can be connected in parallel to increase available output current.
A remote on/off terminal removes the need for a high current switch in the input wiring and can be driven by a low power switch or an engine run/stop signal. Output current is reduced automatically at high ambient temperature to protect the unit, and all connections are made on screw terminals that need no special tools. With the screw terminals oriented downwards the converter carries an IP43 rating.
PRODUCT DETAILS
- Isolated DC-DC converter, 24V nominal input to adjustable 12V output
- 20A continuous output current and 240W continuous output power
- Adjustable output voltage across 10-15 V
- Galvanic isolation of 200VDC between input, output and case
- Short circuit proof and can be paralleled without limit to increase output current
- Remote on/off terminal, driven by a low power switch or engine run/stop signal
- Screw terminal connections and IP43 protection with terminals oriented downwards
- Voltage converter only, not for battery charging (use Orion-Tr Smart for charging)
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Input voltage range | 16-35 V |
| Output voltage (nominal) | 12.2 V |
| Continuous output current | 20 A at 12.2 V and 40 °C |
| Continuous output power | 240 W at 40 °C |
| Galvanic isolation | Isolated |
| Bluetooth | No |
| Protection category | IP43 |
Input
| Input voltage range | 16-35 V |
| Under voltage shut down | 14 V |
| Under voltage restart | 15 V |
| No load input current | < 100 mA |
| Current consumption when disabled | < 200 uA via remote port |
| Input fuse | Internal, not replaceable |
Output
| Nominal output voltage | 12.2 V |
| Output voltage adjustment range | 10-15 V |
| Output voltage tolerance | +/- 0.2 V |
| Output ripple | 2 mV rms |
| Continuous output current | 20 A at 12.2 V and 40 °C |
| Maximum output current (10 s) | 25 A |
| Short circuit output current | 50 A |
| Continuous output power at 25 °C | 300 W |
| Continuous output power at 40 °C | 240 W |
| Maximum efficiency | 88 % |
General
| Galvanic isolation | 200 VDC between input, output and case |
| Remote on/off | Yes |
| Protection | Short circuit, high temperature (output current reduces) |
Physical
| DC connection | Screw terminals |
| Maximum cable cross-section | 16 mm² (AWG6) |
| Dimensions (h x w x d) | 130 x 186 x 70 mm |
| Weight | 1.3 kg |
Environmental
| Operating temperature range | -20 to +55 °C (derate 3 % per °C above 40 °C) |
| Humidity | Max. 95 % non-condensing |
| Protection category | IP43 (with screw terminals oriented downwards) |
Conformance
| Safety | EN 60950 |
| Emission | EN 61000-6-3, EN 55014-1 |
| Immunity | EN 61000-6-2, EN 61000-6-1, EN 55014-2 |
| Automotive Directive | ECE R10-5 |
