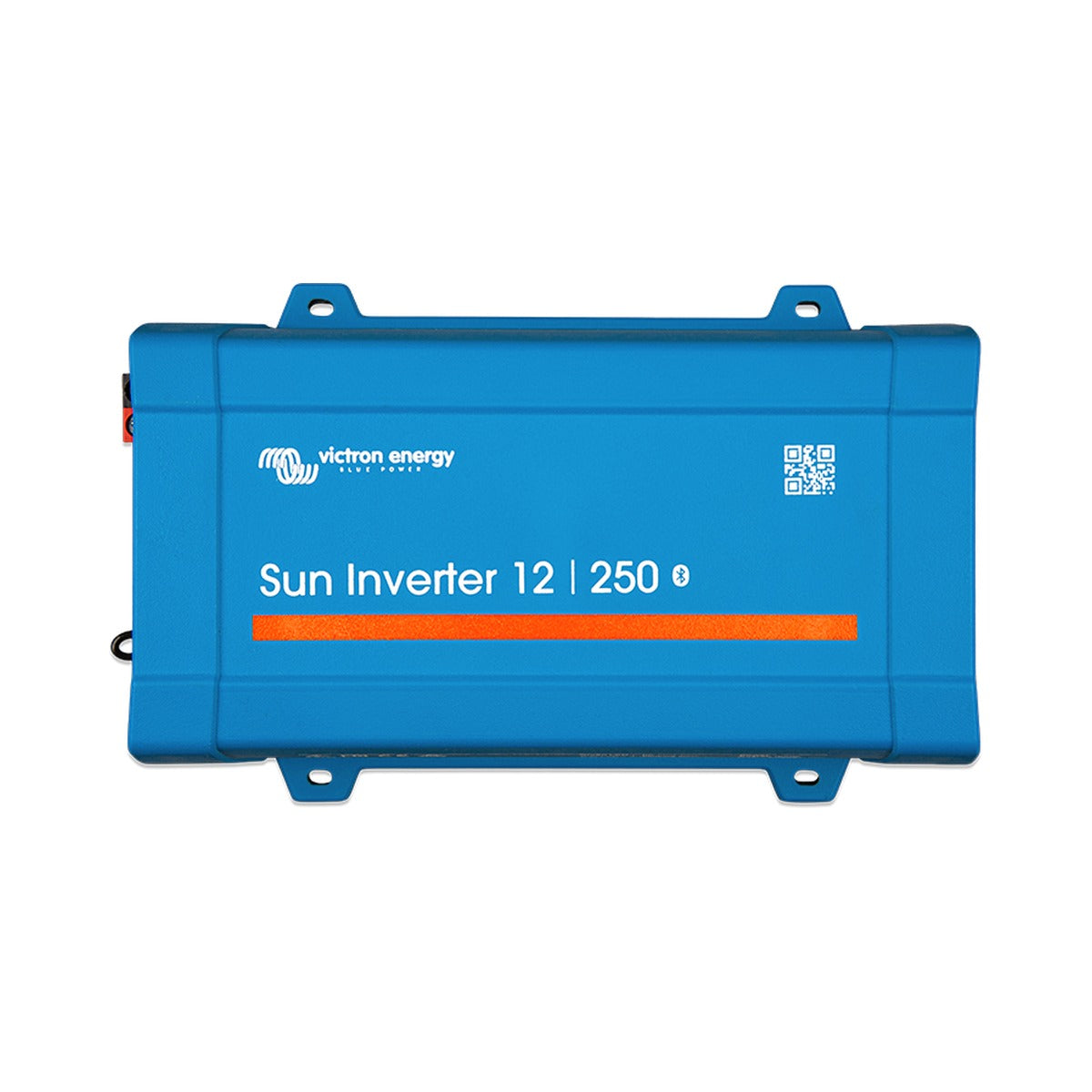

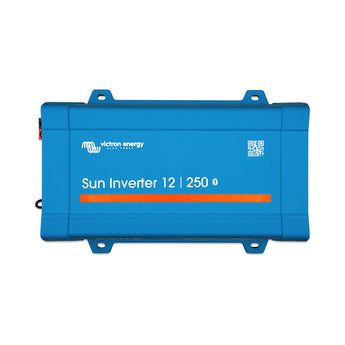

Victron Sun Inverter 12/250-15 (IEC)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron Sun Inverter 12/250 combines a pure sine wave inverter and a PWM solar charger in a single, easy-to-install enclosure. It lets you run 230V domestic equipment from a 12V leisure or automotive battery while your solar panels keep that battery charged, all with a minimum of wiring.
Rated at 250VA with 200W of continuous output and a 400W peak, it is well suited to lighting, small appliances and electronics in cabins, sheds and compact off-grid setups. High start-up power helps it run loads such as LED and halogen lamp drivers and small power tools, and an ECO mode drops the inverter to standby at low loads to save energy.
This 12/250-15 model carries a 15A PWM solar charger that accepts a 36-cell panel up to 25V and 375W. The inverter and solar charger can be read out and configured over Bluetooth with the VictronConnect app, and a VE.Direct port connects to a GX device or GlobalLink 520 for remote monitoring through the VRM portal.
PRODUCT DETAILS
- Combined 250VA pure sine wave inverter and PWM solar charger
- 230V, 50Hz or 60Hz output from a 12V battery, 400W peak
- Built-in 15A PWM charger for a 36-cell solar panel up to 375 W
- ECO mode drops to standby at low load to save energy
- Bluetooth configuration and monitoring via VictronConnect
- VE.Direct port for GX device or GlobalLink 520 monitoring
- Easy installation with minimal wiring and an IEC-320 outlet
- Comprehensive protection and a 5-year warranty
No compatible transducers listed for this product.
No compatible products found.
Key specifications
| Continuous power (VA) | 250 VA |
| Continuous power (W) | 200 W at 25C |
| Peak power | 400 W |
| System voltage | 12 V |
| Output voltage & frequency | 230 VAC, 50 Hz or 60 Hz |
| Maximum efficiency | 87% |
Output
| Continuous power at 40°C | 175 W |
| Output AC voltage (adjustable) | 230 VAC plus or minus 3% (adjustable 210 - 245 V) |
| Output frequency (adjustable) | 50 Hz or 60 Hz plus or minus 0.1% |
| Output waveform | Pure sine wave |
Input
| DC input voltage range | 9.2 - 17 V |
| DC low-voltage shut-down (adjustable) | 9.3 V |
| Dynamic (load-dependent) DC low shut-down | Configurable via the dynamic cut-off setting |
| DC low-voltage restart & alarm (adjustable) | 10.9 V |
| Battery charged detect (adjustable) | 14.0 V |
General
| Zero-load power | 4.2 W |
| Zero-load power in ECO mode | 0.8 W (default) |
| ECO mode minimum load | 15 W |
| Protections | Output short circuit, overload, battery voltage too high, battery voltage too low, temperature too high, DC ripple too high |
| Communication port | VE.Direct and Bluetooth |
| Remote on/off | Yes |
Environmental
| Operating temperature range | -40 to +60C (derate 1.25% per C above 40C) |
| Cooling | Fan-assisted |
| Humidity (non-condensing) | Max 95% |
Enclosure
| Material & colour | Steel chassis and plastic cover, blue RAL 5012 |
| Battery connection | Screw terminals, maximum cable cross-section 10 mm2 (AWG 8) |
| PV connection | Screw terminals, maximum cable cross-section 4 mm2 (AWG 12) |
| Standard AC outlet socket | IEC-320 (male plug included) |
| Protection category | IP21 |
| Dimensions (H x W x D) | 86 x 165 x 260 mm |
| Weight | 2.4 kg |
Standards & Certifications
| Safety | EN-IEC 60335-1, EN-IEC 62109-1 |
| EMC | EN 55014-1, EN 55014-2, IEC 61000-6-1, IEC 61000-6-3 |
| Automotive Directive | ECE R10-4, EN 50498 |
Solar charger
| Solar charger technology | Pulse Width Modulation (PWM) |
| Maximum PV voltage | 25 V |
| Maximum charge current | 15 A |
| Maximum PV power | 375 W |
| Solar panel type | 36 cell solar panel |
| Charge voltages | Adjustable and temperature compensated |
