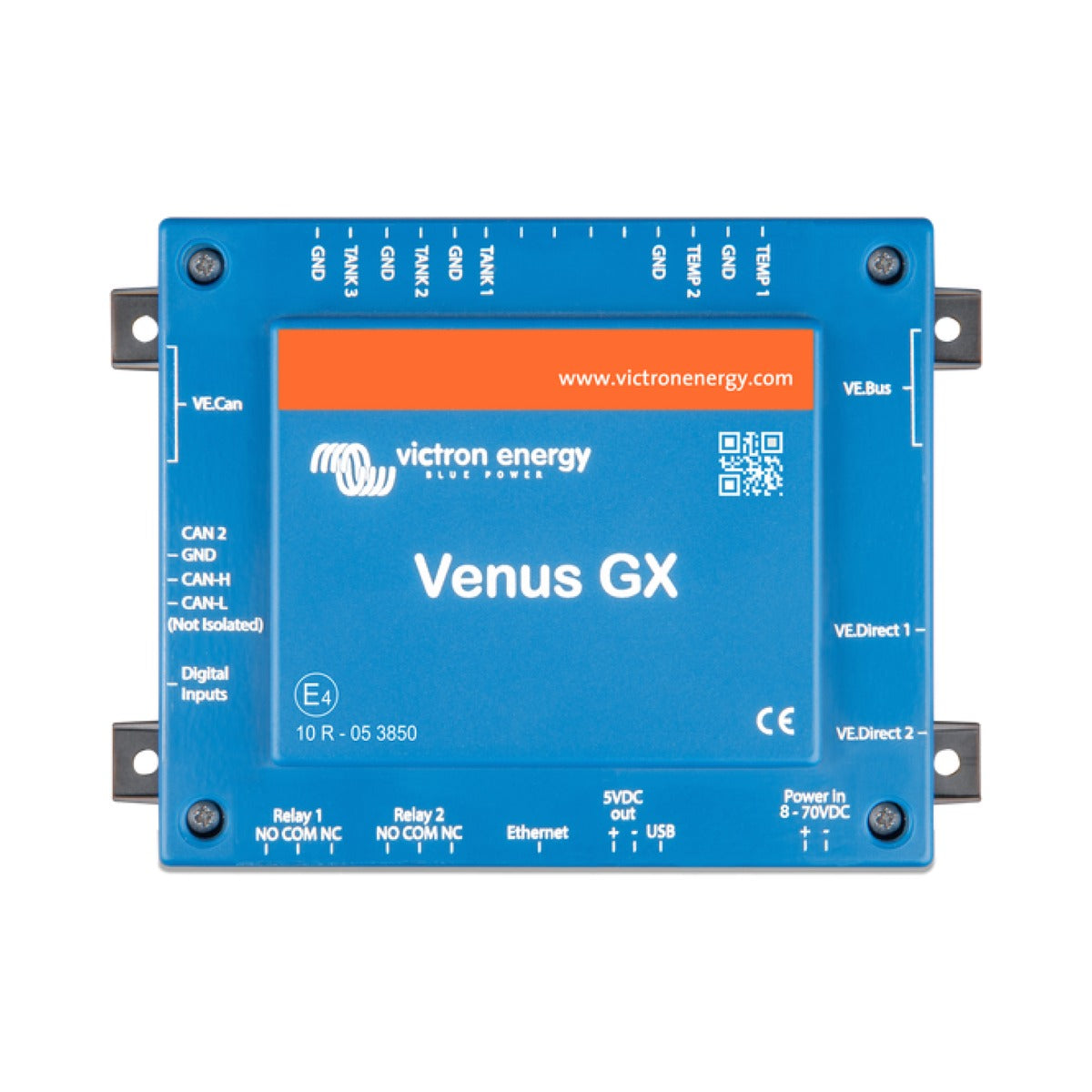

Victron Venus GX
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Venus GX is a system controller for Victron installations. It monitors and controls the connected inverters, Multis, Quattros, MPPT solar chargers and BMV battery monitors, and forwards every reading to the free VRM online portal for remote monitoring and data logging.
It acts as the energy manager in an ESS energy storage system and includes a highly configurable generator auto start and stop function based on state of charge, voltage, load and other parameters. Connections cover two VE.Direct ports, VE.Bus, VE.Can, a Gigabit Ethernet port, Wi-Fi as both access point and client, and two USB host ports. Three resistive tank inputs, two temperature inputs and a potential-free relay are provided for monitoring and control. The unit has no screen of its own and is accessed through Remote Console on VRM, the built-in Wi-Fi access point or the local network.
The Venus GX has no internal cellular modem and no SIM card slot; where mobile internet is needed, an external router is used. When offline, it stores data internally for up to 48 hours, or longer with a microSD card or USB stick fitted.
PRODUCT DETAILS
- GX system controller for monitoring and controlling a Victron system
- Logs all system data to the free VRM online portal for remote monitoring
- Acts as the energy manager in an ESS energy storage system
- Configurable generator auto start and stop
- Two VE.Direct ports, VE.Bus, VE.Can and Gigabit Ethernet
- Wi-Fi access point and client, plus two USB host ports
- Three tank-level inputs, two temperature inputs and a relay
- No built-in screen; accessed through Remote Console and VRM
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Device type | System controller (GX device) |
| Display | None |
| Supply voltage | 8 - 70 |
| Connectivity | Ethernet, Wi-Fi (AP and client), VE.Can, VE.Bus, VE.Direct |
Electrical
| Relays | 1 x potential-free NO/COM/NC, 6A 250VAC / 30VDC |
Communication ports
| VE.Direct ports | 2 separate VE.Direct ports (isolated) |
| VE.Bus | 2 paralleled RJ45 sockets (isolated) |
| VE.Can | 2 paralleled RJ45 sockets (isolated), plus a 2nd CAN interface (non-isolated) |
| Ethernet | 10/100/1000 MB RJ45 socket (isolated except shield) |
| Wi-Fi | Yes, access point and client |
| USB host ports | 2 USB host ports (not isolated) |
I/O
| Resistive tank level inputs | 3 (European 0-180 Ohm or US 240-30 Ohm) |
| Temperature sense inputs | 2 (requires ASS000001000) |
Physical
| Dimensions (h×w×d) | 45 x 143 x 96 |
Operating conditions
| Operating temperature range | -20 to +50 |
