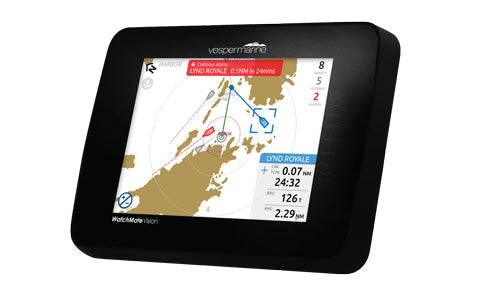

Vesper WatchMate Vision2 smartAIS Touchscreen Transponder
Manufacturer Part Number:
XB9010
Manufacturer Part Number:
XB9010
WatchMate Vision2 smartAIS Touchscreen Transponder with WiFi and NMEA 2000 Gateway. The WatchMate Vision Is Our Most Advanced Class B AIS Transponder, Including Built-in WiFi, NMEA 2000 & 0183, Colour Touchscreen, GPS Receiver & Built-in GPS Antenna
Home or Marina Delivery
Pick up at Hamble
More Information
Vesper WatchMate Vision2 smartAIS Touchscreen Transponder
Vesper WatchMate XB-8000 smartAIS Transponder
Vesper WatchMate XB-6000 AIS Transponder inc External GPS
Vesper WatchMate XB-6000 High AIS Transponder
Vesper WatchMate 850 Class B Standalone AIS Transponder
Vesper AIS Navigation
- Protective cover
- Installation guide
- Mounting bracket with thumbscrews
- Flush mounting template
- 2m (6.5') Power/data cable
- 1m (3') USB cable
- Cleaning cloth
- Flush mounting seal and screws
| LCD touchscreen | 145mm (5 11/16”), VGA (640x480) Color TFT, Capacitive Touch |
| Environmental | Waterproof (IP67: submersible to 1m for 30 mins) |
| Operating temperature | -25°C to +55°C (-13°F to 131°F) |
| Power supply | 10-32 VDC, 6W nominal |
| Coastal outlines | World-wide included |
| Number of receivers | 2 AIS, 1 DSC (timeshared) |
| Receive sensitivity | -113 dBm (<20% PER) |
| Number of transmitters | 1 AIS |
| Transmit power output | 33 dBm (2W) |
| GPS | 50 channel with internal antenna. Supports WAAS and EGNOS. Optional external antenna is required if Vision2 is mounted without a clear view of the sky. |
| GPS navigation rate | Selectable 1Hz or 5Hz with magnetic variation included in output |
| GPS sensitivity | -159dBm tracking & navigation -142dBm acquisition (cold start) |
| GPS accuracy | Position 2.5m CEP, SBAS 2.0m CEP |
| VHF antenna required | 50 ohm, 156-162MHz, max 2:1 VSWR, PL-259 connector |
| Serial data | 1 fully isolated USB port (mini), 1 isolated NMEA 0183 input (RS422 4800/38400 baud) 1 NMEA 0183 output (RS422 4800/38400 baud) |
| Connectivity | NMEA 2000, NMEA 0183, USB, Wireless 802.11 b/g/n All input NMEA 0183 sentences are repeated to the NMEA 0183 output, USB and WiFi. Selected NMEA 2000 PGN's (heading, wind, depth, speed, temperature, and log) are translated to NMEA 0183 sentences and repeated to the NMEA 0183 output, USB and WiFi. This allows a wide variety of NMEA 0183 and NMEA 2000 instruments to be interfaced and output to all other connected devices. |
| NMEA 2000 | NMEA 2000 certified. LEN 2. Micro-C male connector. Female drop cable required (not included). Compatible with all NMEA 2000 certified Raymarine SeaTalk NG devices (DeviceNet cable required), Garmin, Furuno, SimNet (NMEA 2000 adapter cable required, Navico part 24006199 or 24006413), and other NMEA 2000 certified products. |
| Wireless | Access Point for up to 8 devices or client of existing router |
| Wireless Security | WPA / WPA2 Personal (PSK) |
| Protocols | IEC 61162-1, NMEA 0183, NMEA 0183 HS, NMEA 2000 |
| Standards | IEC 62287, IEC 60945, IEC 61108, IEC 61162, ITU-R M.1371, ITU-R M.825, ITU-R M.1084 |
| Approvals | BSH, BABT, CE, US Coast Guard, US FCC, Industry Canada |
| Warranty | Two year world-wide warranty |
| Supplied With | • 2m Power/Data cable • USB Cable • Mounting bracket • Flush mounting hardware • Protective cover |
| Optional | • External GPS Antenna • SP160 VHF/AIS Antenna Splitter • Waterproof USB cable |
172mm wide x 130mm high x 60mm depth (6 7/8” x 5 1/8” x 2 3/8”)
Vesper VHF-AIS-FM Splitter with VSWR Indicator SP160
Vesper External GPS antenna for Vision 2 XB-6000 and XB-8000
Vesper External GPS antenna extension cable kit
Vesper Watchmate External Alarm and mute switch kit
Vesper Waterproof USB Cable For AIS Transponders
Vesper External alarm for 670, 750, 850, Vision 2 and XB-8000
Vesper Watchmate alarm mute switch

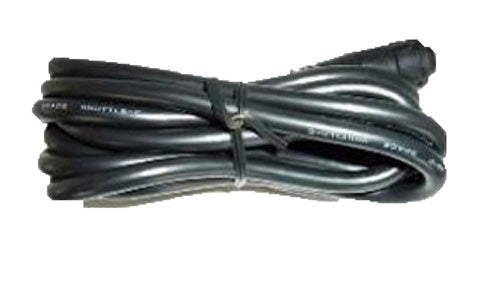

Vesper AIS Power Cable -39309
