Victron

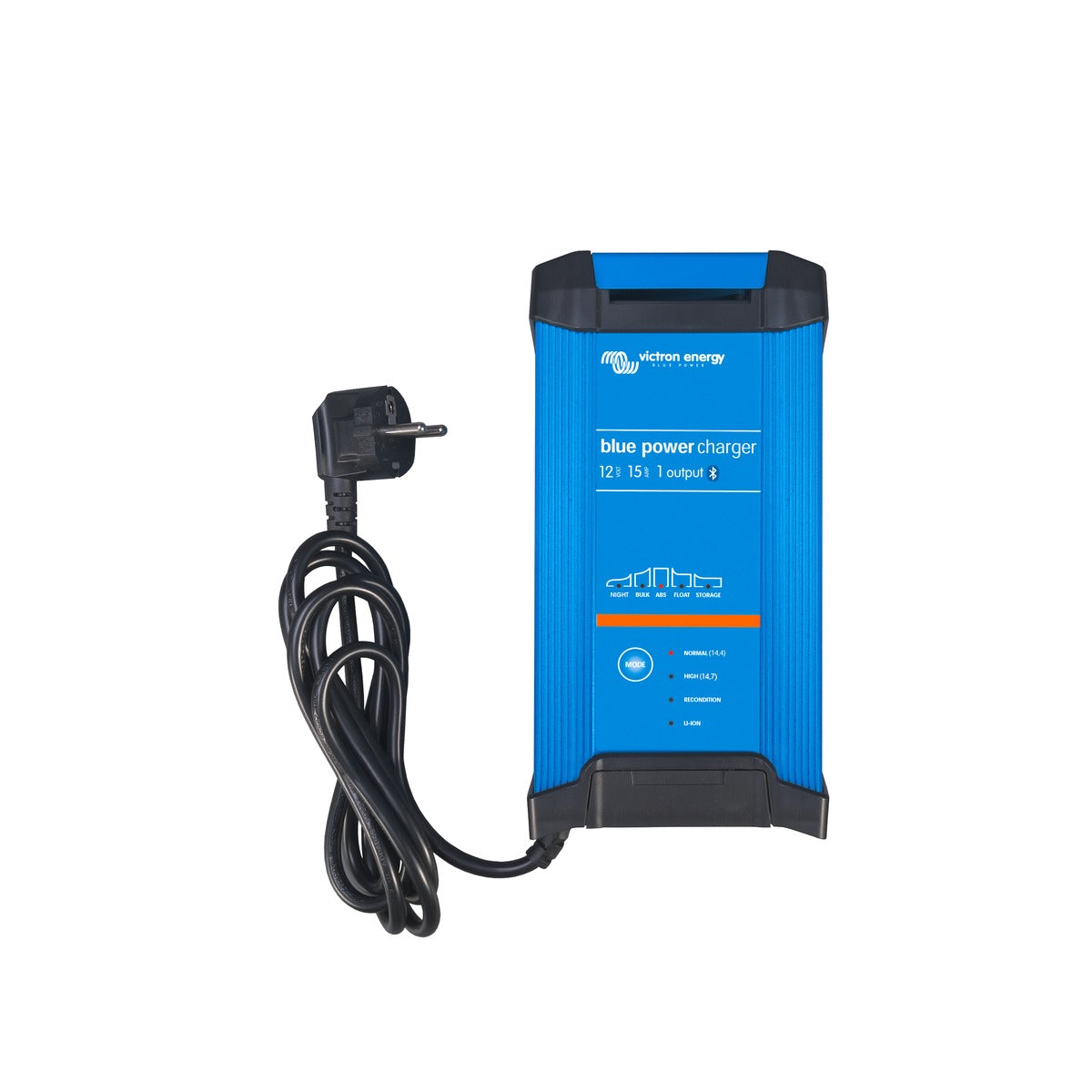

Victron Blue Smart IP22 Charger 12/15 (1)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron Blue Smart IP22 12/15 is a compact 12 volt, 15 amp mains battery charger built for reliable everyday charging aboard boats, campervans and in workshops. Bluetooth is built in, so you can monitor voltage and current, adjust the charge settings and update the firmware straight from the VictronConnect app on your phone.
An adaptive six stage charge algorithm (test, bulk, absorption, recondition, float and storage) manages the whole process automatically, tailoring charging to how the battery is used and dropping into a low maintenance storage mode after 24 hours of inactivity to reduce gassing and prolong battery life. It charges lead acid and lithium (Li-ion) batteries alike and will even recover a battery discharged to zero volts.
With up to 93 percent efficiency the unit runs cool and quiet, and the NIGHT and LOW settings halve the output for silent, low heat charging when required. VE.Smart Networking lets it share battery voltage, temperature and current data with other Victron devices and synchronise with up to ten chargers for larger banks.
PRODUCT DETAILS
- Built-in Bluetooth for monitoring, settings and firmware updates via VictronConnect
- Adaptive six stage charge algorithm: test, bulk, absorption, recondition, float and storage
- Charges both lead acid and lithium (Li-ion) batteries
- Single isolated output rated at 12V 15A
- Up to 93 percent efficient, generating far less heat than the industry standard
- NIGHT and LOW modes halve output for silent, low heat charging
- Storage mode and fully discharged battery recovery protect and extend battery life
- VE.Smart Networking for shared sensing and synchronised parallel charging
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Battery voltage | 12 V |
| Charge current | 15 A |
| Number of outputs | 1 |
| Maximum efficiency | 93 % |
Charging
| Charge algorithm | 6-stage adaptive (test, bulk, absorption, recondition, float, storage) |
| Low current mode | 7.5 A |
| Charge voltage 'absorption' | Normal 14.4 V, High 14.7 V, Li-ion 14.2 V |
| Charge voltage 'float' | Normal 13.8 V, High 13.8 V, Li-ion 13.5 V |
| Charge voltage 'storage' | Normal 13.2 V, High 13.2 V, Li-ion 13.5 V |
| Can be used as power supply | Yes |
Input
| AC input voltage range | 180 - 265 VAC |
| Input frequency | 45 - 65 Hz |
Protection
| Protection | Battery reverse polarity (fuse), output short circuit, over temperature |
Environmental
| Operating temperature | -40 to +60°C (full rated output up to 40°C) |
| Humidity | Max 98 % |
Physical
| Material | Aluminium, blue RAL 5012 |
| Protection category | IP22 |
| Battery connection | Screw terminals 16 mm² / AWG6 |
| 230 VAC connection | 1.5 m cable with CEE 7/7, BS 1363 (UK) or AS/NZS 3112 (AU/NZ) plug |
| Weight | 1.3 kg |
| Dimensions (h x w x d) | 235 x 108 x 65 mm |
Conformance
| Safety | EN 60335-1, EN 60335-2-29 |
| Emission | EN 55014-1, EN 61000-6-3, EN 61000-3-2 |
| Immunity | EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3 |
| Automotive | ECE R10-5 |
