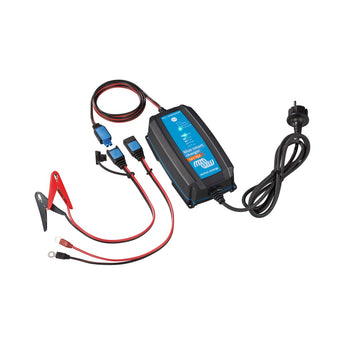

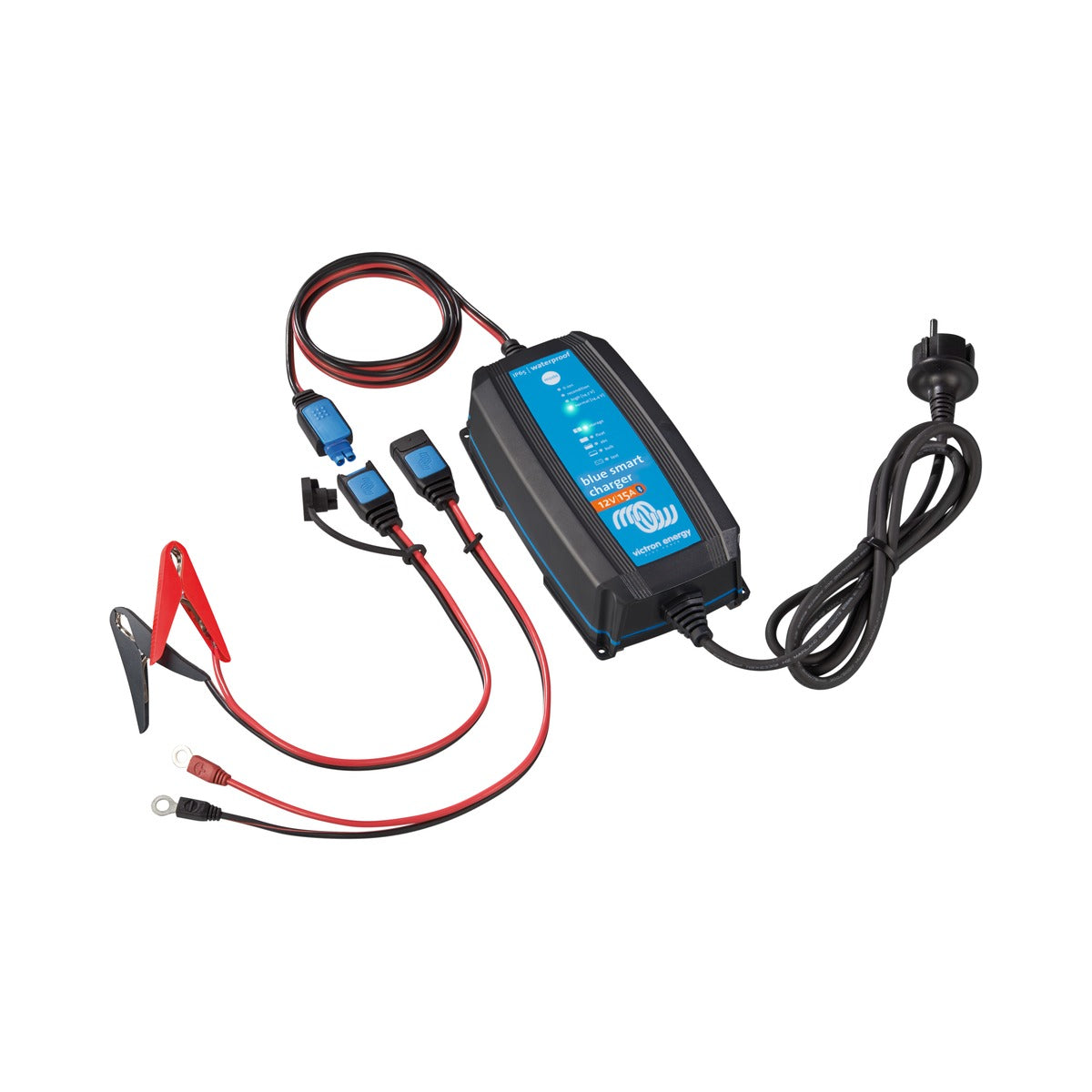

Victron Blue Smart IP65 Charger 12/25 (230V)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron Blue Smart IP65 Charger 12/25 is the most powerful model in the range, a professional grade portable battery charger delivering 25 A of charge current from a 230 V AC supply. Water, dust and chemical resistant to IP65, it is built for demanding marine, automotive and outdoor use where a fixed charger is not practical.
An intelligent 7 stage adaptive charge algorithm optimises every recharge and looks after long term battery health, while integrated Bluetooth lets you set up the charger, choose the battery type and monitor voltage and current from your phone using the VictronConnect app. A dedicated Li-ion mode sits alongside the lead-acid presets, and a recovery function can revive batteries discharged to nearly zero volts.
With up to 95 percent efficiency it runs cool and silent with no fan, and once the battery is full it draws minimal standby power. It is an ideal charger for larger batteries from roughly 80 to 250 Ah.
PRODUCT DETAILS
- 25 A charge current from a 230 V AC supply, ideal for batteries around 80 to 250 Ah
- Built-in Bluetooth for setup, battery-type selection and live monitoring via VictronConnect
- 7-stage adaptive charge algorithm optimises each cycle and protects long-term battery health
- Dedicated Li-ion (LiFePO4) mode alongside lead-acid presets
- IP65 rated: splash, dust and chemical resistant for marine and outdoor use
- Recovery function recharges batteries discharged to nearly zero volts
- Up to 95% efficient, fanless and totally silent with low standby consumption
- Reverse polarity, short circuit and over-temperature protection
No compatible transducers listed for this product.
Victron M6 Eyelet Connector with Fuse
Victron 2 Metre Extension Cable (Blue Smart IP65/IP67)
Victron 12V Cigarette Lighter Plug with Fuse
Victron Connect Clamps with Fuse
Victron MagCode Power Clip 12V (max 15A)
Victron MagCode Power Port 12V (max 15A)
Victron Blue Smart IP65 Charger Wall Mount
Victron Carry Case for Blue Smart IP65 12/25 & 24/13 Chargers
No compatible products found.
Key specifications
| Battery voltage | 12 V |
| Charge current | 25 A |
| Number of outputs | 1 |
| Maximum efficiency | 95% |
Charging
| Charge algorithm | 7-stage adaptive |
| Low current mode | 10 A |
| Charge voltage 'absorption' | Normal 14.4 V, High 14.7 V, Li-ion 14.2 V |
| Charge voltage 'float' | Normal 13.8 V, High 13.8 V, Li-ion disabled |
| Charge voltage 'storage' | Normal 13.2 V, High 13.2 V, Li-ion 13.5 V |
| Recommended battery capacity | 80 to 250 Ah |
| Temperature compensation | 16 mV/°C (lead-acid only) |
| Back current drain | 0.7 Ah/month (1 mA) |
Input
| AC input voltage range | 230 VAC |
| Input frequency | 45 to 65 Hz |
| No-load power consumption | 0.5 W |
Connectivity & control
| Bluetooth | Built-in (-4 dBm, 2402 to 2480 MHz) |
| Battery type selection | Lead-acid presets and Li-ion (LiFePO4) via VictronConnect |
Protection
| Protection | Reverse polarity, output short circuit, over temperature |
Environmental
| Operating temperature | -40 to +60°C (full rated output up to 30°C) |
| Cooling | Natural convection, fanless |
| Humidity | Max 95% (non-condensing) |
Physical
| Material | Plastic enclosure |
| Protection category | IP65 (splash and dust proof) |
| Terminals | 1.5 m battery cable, 1.5 m AC cable with mains plug |
| Weight | 1.9 kg |
| Dimensions (h x w x d) | 75 x 140 x 240 mm |
Conformance
| Safety | EN 60335-1, EN 60335-2-29 |
| Emission / Immunity | EN 55014-1, EN 55014-2, EN 61000-6-1/2/3, EN 61000-3-2/3 |
