Victron

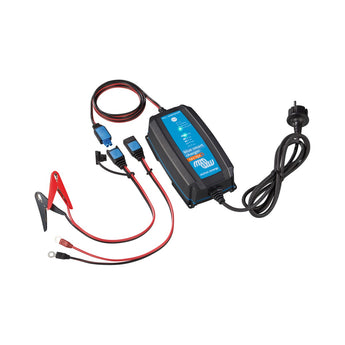

Victron Blue Smart IP65 Charger 24/5 (230V)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Blue Smart IP65 Charger is the professional choice for keeping batteries healthy on boats, RVs, motorcycles and classic vehicles. Its IP65 enclosure is splash proof, dust proof and chemical resistant, and the charger is completely silent with no fan or moving parts.
Built-in Bluetooth lets you read voltage and current, choose a battery profile and view history from the free VictronConnect app. A seven-step smart charge algorithm gets the best from the battery, while storage mode keeps it healthy through long periods of inactivity rather than applying a constant trickle. Temperature compensated charging is automatic, the charger recovers deeply discharged batteries from zero volts, and it can also run as a DC power supply.
This 24 V, 5 A single-output model is the 230 V variant, supplied on a 1.5 m mains lead. With efficiency up to 95% and 0.5 W consumption once charged, it wastes far less energy as heat than conventional chargers.
PRODUCT DETAILS
- 24 V, 5 A single-output battery charger
- IP65 splash, dust and chemical-resistant enclosure
- Built-in Bluetooth with the free VictronConnect app
- Seven-step smart charge algorithm with storage mode
- Charges lead-acid and lithium-ion (LiFePO4) batteries
- Automatic temperature-compensated charging
- Recovers fully discharged batteries; can be used as a DC power supply
- Silent, fanless operation and up to 95% efficiency
No compatible transducers listed for this product.
No compatible products found.
Key specifications
| Battery voltage | 24 V |
| Charge current | 5 A |
| Number of outputs | 1 |
| Maximum efficiency | 95 % |
Charging
| Charge algorithm | 7-stage adaptive (test, bulk, absorption, recondition, float, storage, storage refresh) |
| Low current mode | 2 A |
| Charge voltage 'absorption' | Normal 28.8 V; High 29.4 V; Li-ion 28.4 V |
| Charge voltage 'float' | Normal 27.6 V; High 27.6 V; Li-ion 27.0 V |
| Charge voltage 'storage' | Normal 26.4 V; High 26.4 V; Li-ion 27.0 V |
| Temperature compensation | 32 mV/°C (lead-acid only) |
| Back current drain | 0.7 Ah/month (1 mA) |
Input
| AC input voltage range | 230 VAC (100-250 VAC range) |
| Input frequency | 45-65 Hz |
| No-load power consumption | 0.5 W |
Connectivity & control
| Bluetooth | Built-in (VictronConnect) |
| Battery type selection | Normal, High, Li-ion |
Protection
| Protection | Reverse polarity, output short circuit, over temperature |
Environmental
| Operating temperature | -40 to +60 (full rated output up to 30) |
| Cooling | Natural convection (fanless, silent) |
| Humidity | Max 95 % (non-condensing) |
Physical
| Protection category | IP65 (splash proof and dust proof) |
| Terminals | Battery cable 1.5 m; AC cable 1.5 m with mains plug |
| Weight | 0.9 kg |
| Dimensions (h x w x d) | 47 x 95 x 190 mm |
Conformance
| Safety | EN 60335-1, EN 60335-2-29 |
| Emission / Immunity | EN 55014-1, EN 55014-2, EN 61000-6-1/-6-2/-6-3, EN 61000-3-2/-3-3 |
