Victron

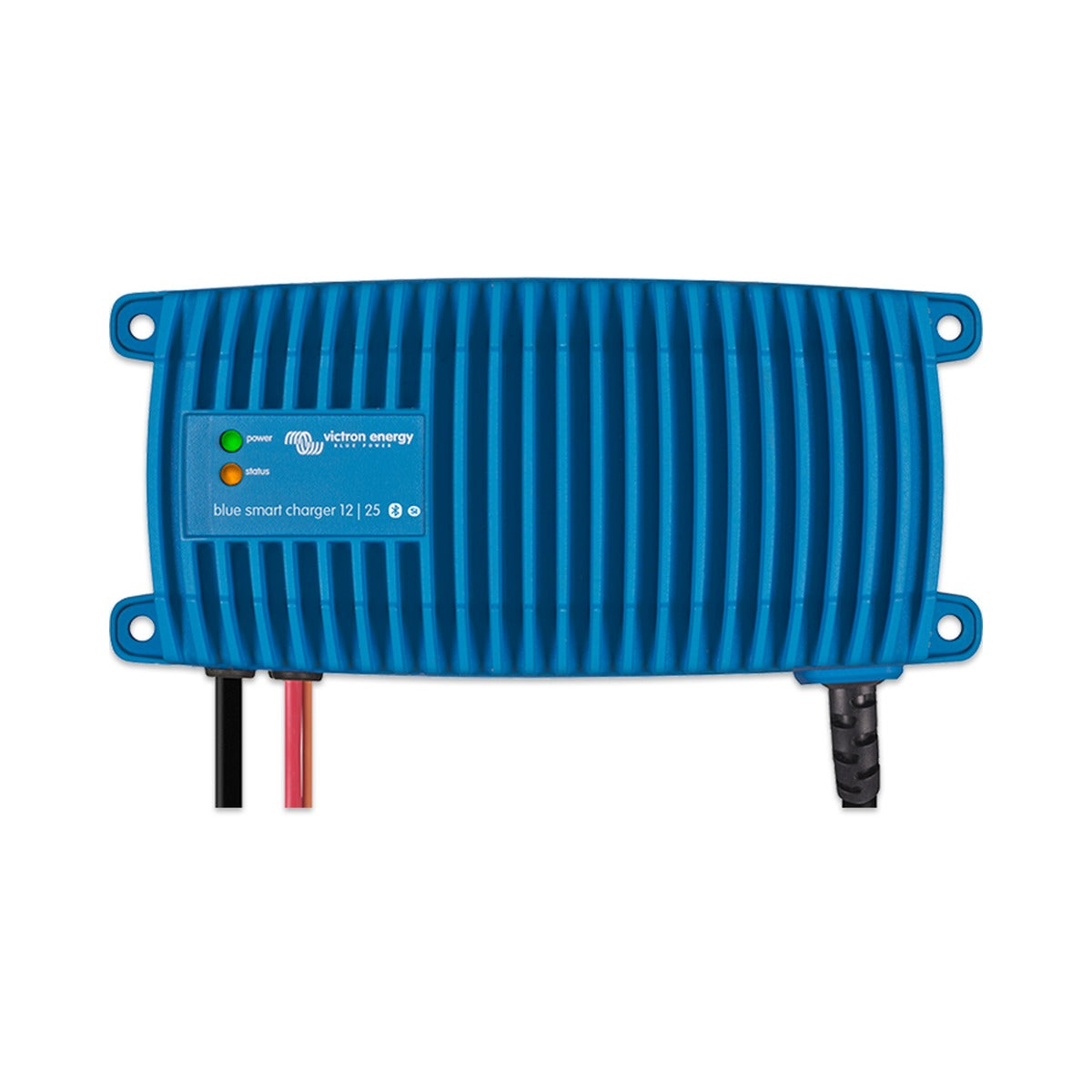

Victron Blue Smart IP67 Charger 12/25
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Blue Smart IP67 Charger is a professional, fully sealed battery charger built for the harshest environments. Its cast aluminium case and resin-encapsulated electronics make it waterproof, shockproof and ignition protected, so water, oil and dirt will not damage it, on the boat, the bench or the vehicle.
Built-in Bluetooth lets you monitor voltage and current, change settings and update firmware from the free VictronConnect app on a phone, tablet or laptop. A microprocessor-controlled adaptive 5-stage charge algorithm optimises every charge cycle, while storage mode reduces maintenance and ageing when the battery is left connected. The charger also recovers deeply discharged batteries from zero volts and can run as a DC power supply.
This 12 V, 25 A single-output model is the 230 V variant, supplied on a 1.5 m mains lead. With efficiency up to 95% and under 1 W consumption once charged, it wastes far less energy as heat than conventional chargers.
PRODUCT DETAILS
- 12 V, 25 A single-output battery charger
- Fully waterproof, shockproof and ignition-protected IP67 enclosure
- Built-in Bluetooth with the free VictronConnect app
- Adaptive 5-stage charge algorithm (bulk, absorption, recondition, float, storage)
- Charges lead-acid and lithium-ion (LiFePO4) batteries
- Recovers fully discharged batteries from zero volts
- Can be used as a DC power supply
- Silent, fanless operation and up to 95% efficiency
No compatible transducers listed for this product.
No compatible products found.
Key specifications
| Battery voltage | 12 V |
| Charge current | 25 A |
| Number of outputs | 1 |
| Maximum efficiency | 95 % |
Charging
| Charge algorithm | 5-stage adaptive (bulk, absorption, recondition, float, storage) |
| Low current mode | 10 A |
| Charge voltage 'absorption' | Normal 14.4 V; High 14.7 V; Li-ion 14.2 V |
| Charge voltage 'float' | Normal 13.8 V; High 13.8 V; Li-ion 13.5 V |
| Charge voltage 'storage' | Normal 13.2 V; High 13.2 V; Li-ion 13.5 V |
Input
| AC input voltage range | 180-265 VAC (nominal 220-240 VAC) |
| Input frequency | 45-65 Hz |
| No-load power consumption | 0.5 W |
Connectivity & control
| Bluetooth | Built-in (VictronConnect) |
| Battery type selection | Normal, High, Li-ion |
Protection
| Protection | Battery reverse polarity (fuse), output short circuit, over temperature |
| Ignition protected | Yes |
Environmental
| Operating temperature | -20 to +60 (full rated output up to 40, derate 3 % per C above 40) |
| Cooling | Natural convection (fanless) |
| Humidity | Up to 100 % |
Physical
| Colour | Blue (RAL 5012) |
| Material | Cast aluminium, electronics moulded in resin |
| Protection category | IP67 |
| Terminals | Battery cable 1.5 m; AC cable 1.5 m with mains plug |
| Weight | 2.4 kg |
| Dimensions (h x w x d) | 99 x 219 x 65 mm |
Conformance
| Safety | EN 60335-1, EN 60335-2-29 |
| Emission / Immunity | EN 55014-1, EN 55014-2, EN 61000-6-1/-6-2/-6-3, EN 61000-3-2/-3-3 |
