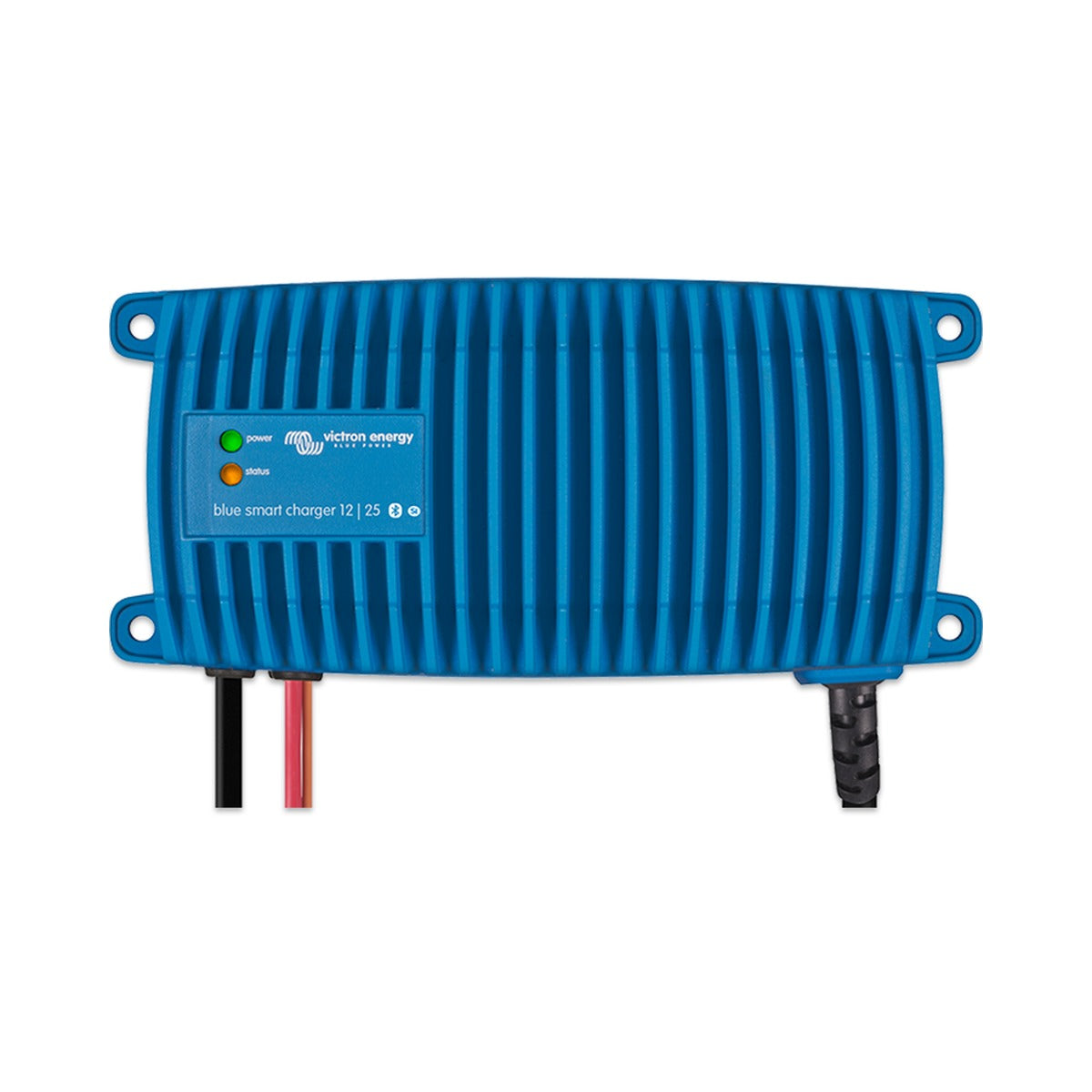

Victron Blue Smart IP67 Charger 24/12 (1+Si)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Blue Smart IP67 Charger is a professional, fully sealed battery charger built for the harshest environments. Its cast aluminium case and resin-encapsulated electronics make it waterproof, shockproof and ignition protected, so water, oil and dirt will not damage it, on the boat, the bench or the vehicle.
This is the Start Interrupt (1+Si) version. Alongside the main charging output it has a second, current-limited output that disconnects the charger from the vehicle electronics the moment the engine is started, protecting sensitive equipment from voltage dips during cranking. Built-in Bluetooth lets you monitor voltage and current, change settings and update firmware from the free VictronConnect app, and an adaptive 5-stage charge algorithm optimises every cycle.
This 24 V, 12 A model is the 230 V variant, supplied on a 1.5 m mains lead. It recovers deeply discharged batteries from zero volts, can run as a DC power supply, and with efficiency up to 96% wastes far less energy as heat than conventional chargers.
PRODUCT DETAILS
- 24 V, 12 A battery charger with Start Interrupt (1+Si) output
- Second output disconnects the charger when the engine is started
- Fully waterproof, shockproof and ignition-protected IP67 enclosure
- Built-in Bluetooth with the free VictronConnect app
- Adaptive 5-stage charge algorithm (bulk, absorption, recondition, float, storage)
- Charges lead-acid and lithium-ion (LiFePO4) batteries
- Recovers fully discharged batteries; can be used as a DC power supply
- Silent, fanless operation and up to 96% efficiency
No compatible transducers listed for this product.
No compatible products found.
Key specifications
| Battery voltage | 24 V |
| Charge current | 12 A |
| Number of outputs | 1 |
| Maximum efficiency | 96 % |
Output
| Start interrupt output | Short circuit proof, current limit 0.5 A; output max one volt below main output; disconnects on engine start |
Charging
| Charge algorithm | 5-stage adaptive (bulk, absorption, recondition, float, storage) |
| Low current mode | 4 A |
| Charge voltage 'absorption' | Normal 28.8 V; High 29.4 V; Li-ion 28.4 V |
| Charge voltage 'float' | Normal 27.6 V; High 27.6 V; Li-ion 27.0 V |
| Charge voltage 'storage' | Normal 26.4 V; High 26.4 V; Li-ion 27.0 V |
Input
| AC input voltage range | 180-265 VAC (nominal 220-240 VAC) |
| Input frequency | 45-65 Hz |
| No-load power consumption | 0.5 W |
Connectivity & control
| Bluetooth | Built-in (VictronConnect) |
| Battery type selection | Normal, High, Li-ion |
Protection
| Protection | Battery reverse polarity (fuse), output short circuit, over temperature |
| Ignition protected | Yes |
Environmental
| Operating temperature | -20 to +60 (full rated output up to 40, derate 3 % per C above 40) |
| Cooling | Natural convection (fanless) |
| Humidity | Up to 100 % |
Physical
| Colour | Blue (RAL 5012) |
| Material | Cast aluminium, electronics moulded in resin |
| Protection category | IP67 |
| Terminals | Battery cable 1.5 m; AC cable 1.5 m with mains plug |
| Weight | 2.4 kg |
| Dimensions (h x w x d) | 99 x 219 x 65 mm |
Conformance
| Safety | EN 60335-1, EN 60335-2-29 |
| Emission / Immunity | EN 55014-1, EN 55014-2, EN 61000-6-1/-6-2/-6-3, EN 61000-3-2/-3-3 |
