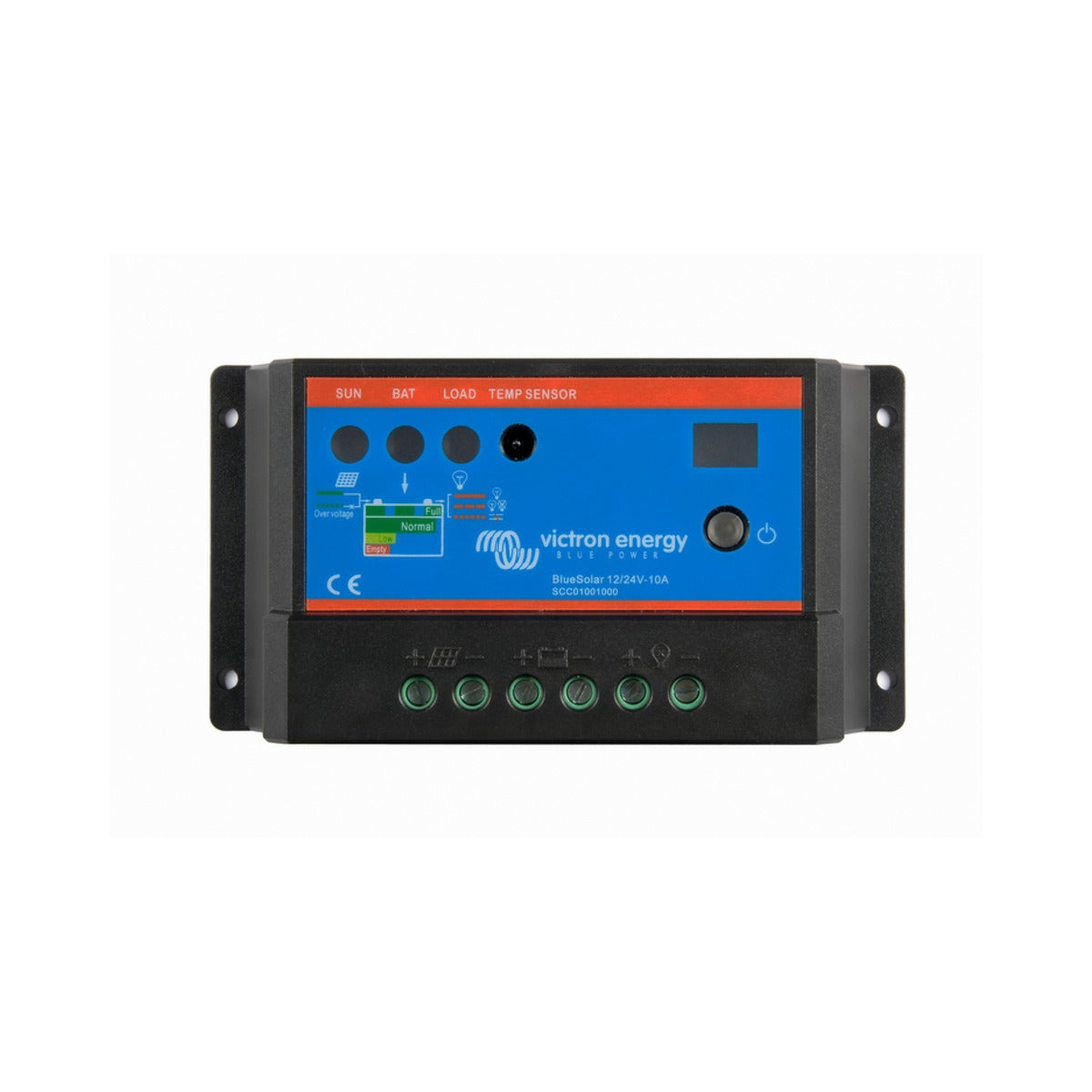

Victron BlueSolar PWM-Light 12/24V 10A
£24.00
/
Tax included.
SCC010010000
Compact 12/24V PWM solar charge controller rated 10A with automatic voltage detection, a seven-segment display and a load output with lighting timer. A simple, affordable choice for small solar and lighting systems.
✓
Collection or delivery in 1-2 weeks
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
PRODUCT DETAILS
- PWM charge controller for 12V and 24V systems (auto detect)
- Rated charge current 10A; maximum solar voltage 28V/55V
- Load output with low battery voltage disconnect
- Lighting control function with timer
- Two-digit seven-segment display for quick setup
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Technology | PWM (pulse width modulation) |
| Battery voltage | 12/24V with automatic system voltage detection |
| Maximum solar voltage | 28 V (12V) / 55 V (24V) |
| Rated charge current | 10 A |
Charging
| Charge voltage 'absorption' | 14.2 V / 28.4 V |
| Charge voltage 'float' | 13.8 V / 27.6 V |
| Charge algorithm | Three stage (bulk, absorption, float), not programmable |
| Self-consumption | Less than 10 mA |
| Load output | Manual control with low-voltage disconnect and lighting timer |
| Low voltage load disconnect | 11.2 V / 22.4 V |
| Low voltage load reconnect | 12.6 V / 25.2 V (manual), 13.1 V / 26.2 V (automatic) |
Protection
| Protection | Battery reverse polarity (fuse), output short circuit, over temperature, overload |
Environmental
| Operating temperature | -20 to +50°C (full load) |
| Humidity | Max 95%, non-condensing |
Physical
| Grounding | Common positive |
| Power terminals | 5 mm² / AWG10 |
| Protection category | IP20 |
| Weight | 0.15 kg |
| Dimensions (h x w x d) | 70 x 133 x 33.5 mm |
Conformance
| Safety | IEC 62109-1 |
