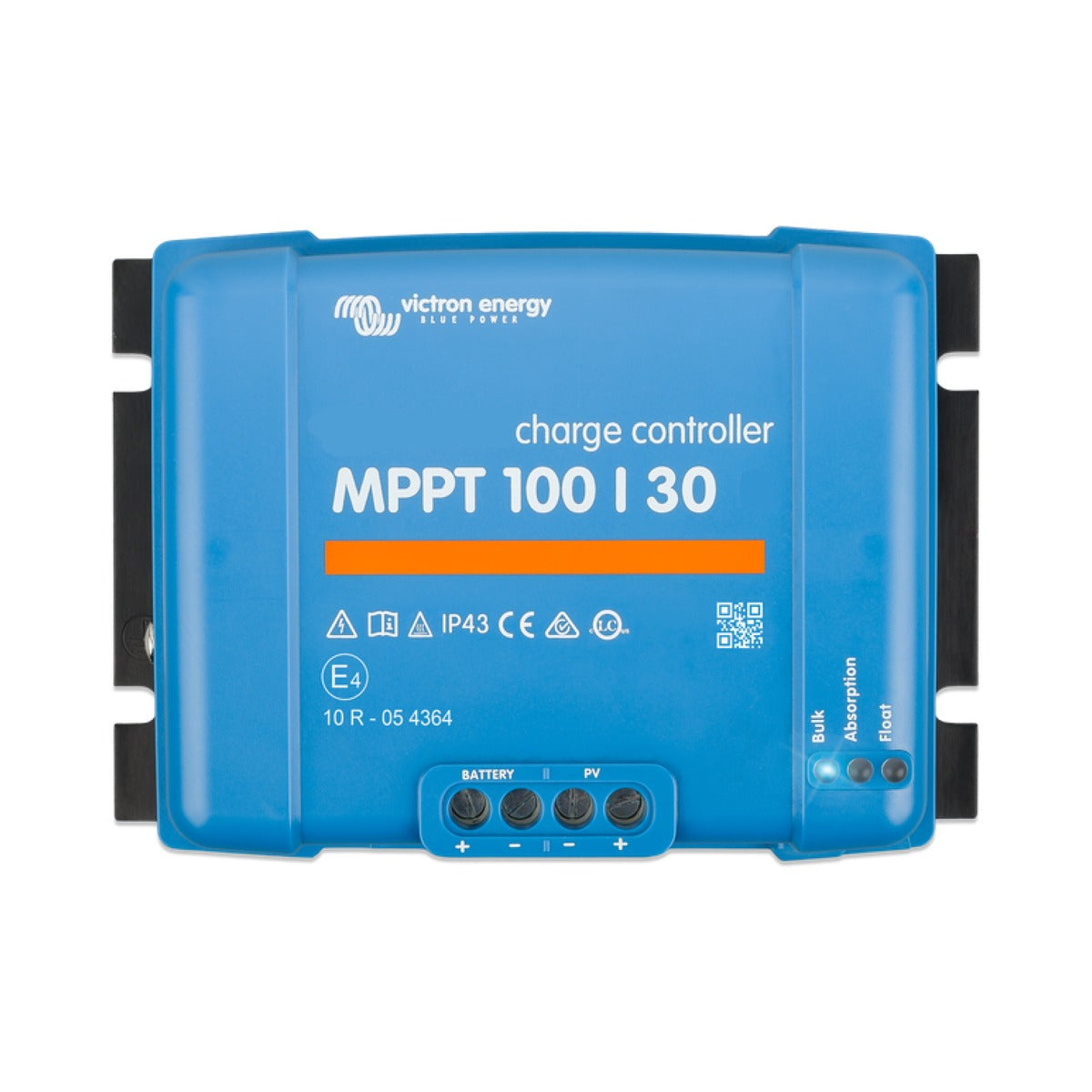

Victron BlueSolar MPPT 100/30
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron BlueSolar MPPT 100/30 is a solar charge controller for 12V and 24V systems, delivering up to 30A of charge current from a solar array of up to 100V open circuit. Its ultra-fast Maximum Power Point Tracking and advanced shading detection maximise the energy harvested even in changing light, and the system voltage is detected automatically. It is a dependable choice for larger off-grid, marine and mobile installations.
Charging is handled by a multi-stage adaptive algorithm with eight pre-programmed profiles selectable via rotary switch, and an internal temperature sensor compensates the charge voltage. As a BlueSolar model there is no Bluetooth; configuration and monitoring are through the VE.Direct port using a GX device or the optional VE.Direct Bluetooth Smart dongle.
PRODUCT DETAILS
- Ultra-fast Maximum Power Point Tracking with advanced shading detection
- Automatic 12V/24V system voltage detection
- Rated charge current 30A; maximum PV open circuit voltage 100V
- Maximum efficiency exceeds 98% with no cooling fan
- Eight pre-programmed charge algorithms selectable by rotary switch
- VE.Direct communication port for GX devices and monitoring
No compatible transducers listed for this product.
No compatible products found.
Key specifications
| Battery voltage | 12/24V auto select |
| Maximum PV open circuit voltage | 100 V |
| Rated charge current | 30 A |
| Nominal PV power, 12V | 440 W |
| Nominal PV power, 24V | 880 W |
| Maximum PV short circuit current | 35 A |
| Maximum efficiency | 98 % |
Charging
| Charge voltage 'absorption' | 14.4 V / 28.8 V (adjustable) |
| Charge voltage 'float' | 13.8 V / 27.6 V (adjustable) |
| Charge algorithm | Multi-stage adaptive |
| Temperature compensation | -16 mV/°C (12V), -32 mV/°C (24V) |
| Self-consumption | 12V: 30 mA, 24V: 20 mA |
Connectivity & control
| Bluetooth | No |
| Data communication port | VE.Direct |
Protection
| Protection | PV short circuit, PV reverse polarity, over temperature |
Environmental
| Operating temperature | -30 to +60°C (full rated output up to 40°C) |
| Humidity | 95%, non-condensing |
Physical
| Colour | Blue (RAL 5012) |
| Power terminals | 16 mm² / AWG6 |
| Protection category | IP43 (electronics), IP22 (connection area) |
| Weight | 1.3 kg |
| Dimensions (h x w x d) | 130 x 186 x 70 mm |
Conformance
| Safety | EN/IEC 62109-1, UL 1741, CSA C22.2 |
