Victron

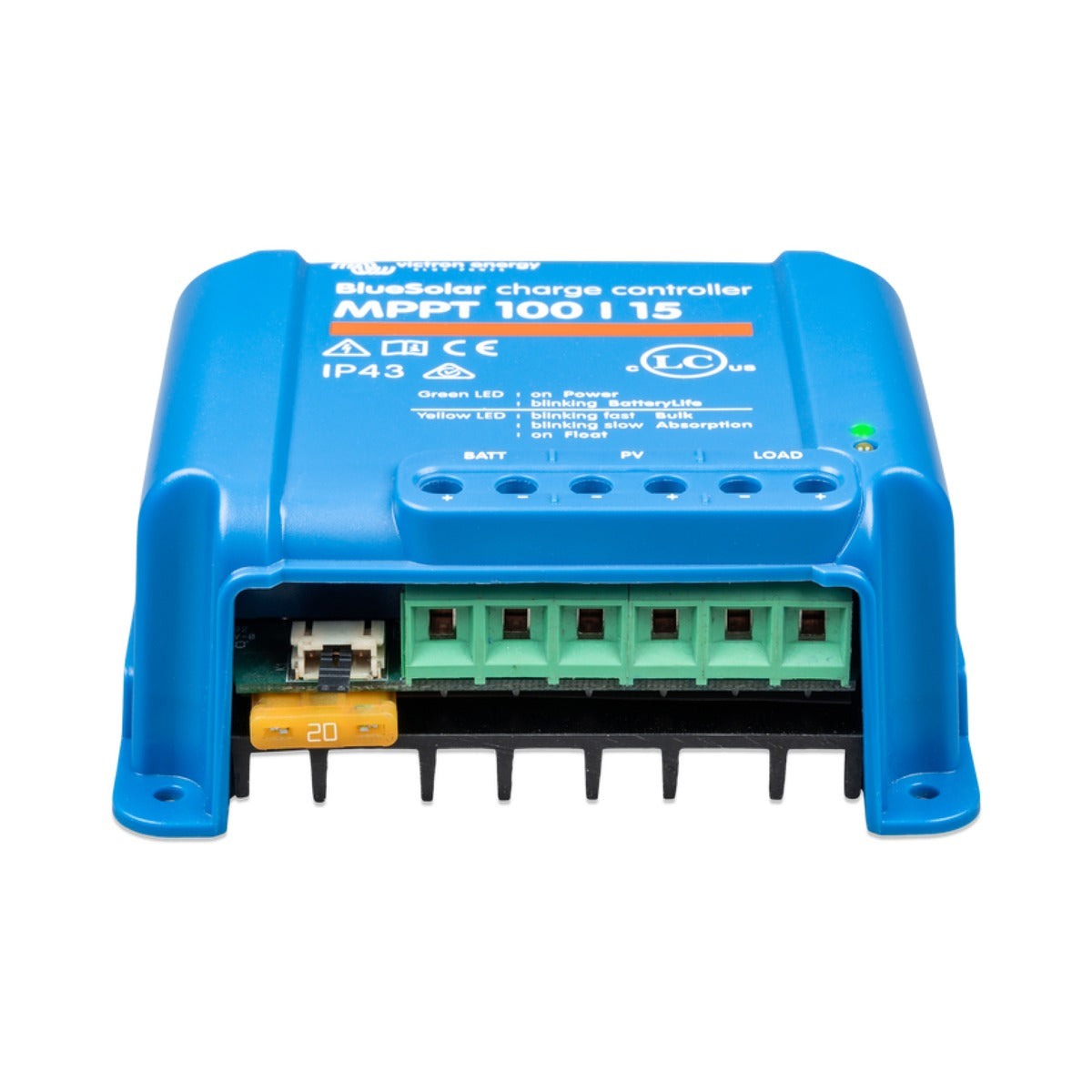

Victron BlueSolar MPPT 100/15
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron BlueSolar MPPT 100/15 is a compact solar charge controller for 12V and 24V battery systems. Its ultra-fast Maximum Power Point Tracking extracts the most available energy from the solar array, and the controller automatically detects whether it is connected to a 12V or 24V battery. An integrated load output with low-voltage disconnect helps prevent deep discharge, making it a practical choice for caravans, camper vans, small boats and off-grid cabins.
A multi-stage adaptive charge algorithm and internal temperature sensor keep the battery charged correctly across changing conditions. As a BlueSolar model it does not include Bluetooth; configuration and monitoring are handled through the VE.Direct port using a GX device or the optional VE.Direct Bluetooth Smart dongle.
PRODUCT DETAILS
- Ultra-fast Maximum Power Point Tracking for maximum energy harvest
- Automatic 12V/24V system voltage detection
- Rated charge current 15A; maximum PV open circuit voltage 100V
- Load output with low-voltage disconnect protects the battery
- Multi-stage adaptive charge algorithm with internal temperature compensation
- VE.Direct communication port for GX devices and monitoring
No compatible transducers listed for this product.
No compatible products found.
Key specifications
| Battery voltage | 12/24V auto select |
| Maximum PV open circuit voltage | 100 V |
| Rated charge current | 15 A |
| Nominal PV power, 12V | 220 W |
| Nominal PV power, 24V | 440 W |
| Maximum PV short circuit current | 15 A |
| Maximum efficiency | 98 % |
Charging
| Charge voltage 'absorption' | 14.4 V / 28.8 V (adjustable) |
| Charge voltage 'float' | 13.8 V / 27.6 V (adjustable) |
| Charge algorithm | Multi-stage adaptive |
| Temperature compensation | -16 mV/°C (12V), -32 mV/°C (24V) |
| Self-consumption | 12V: 25 mA, 24V: 15 mA (load on) |
| Load output | Yes, 15 A continuous with automatic low-voltage disconnect |
Connectivity & control
| Bluetooth | No |
| Data communication port | VE.Direct |
Protection
| Protection | Output short circuit, over temperature |
Environmental
| Operating temperature | -30 to +60°C (full rated output up to 40°C) |
| Humidity | 95%, non-condensing |
Physical
| Colour | Blue (RAL 5012) |
| Power terminals | 6 mm² / AWG10 |
| Protection category | IP43 (electronics), IP22 (connection area) |
| Weight | 0.6 kg |
| Dimensions (h x w x d) | 100 x 113 x 50 mm |
Conformance
| Safety | EN/IEC 62109-1, UL 1741, CSA C22.2 |
