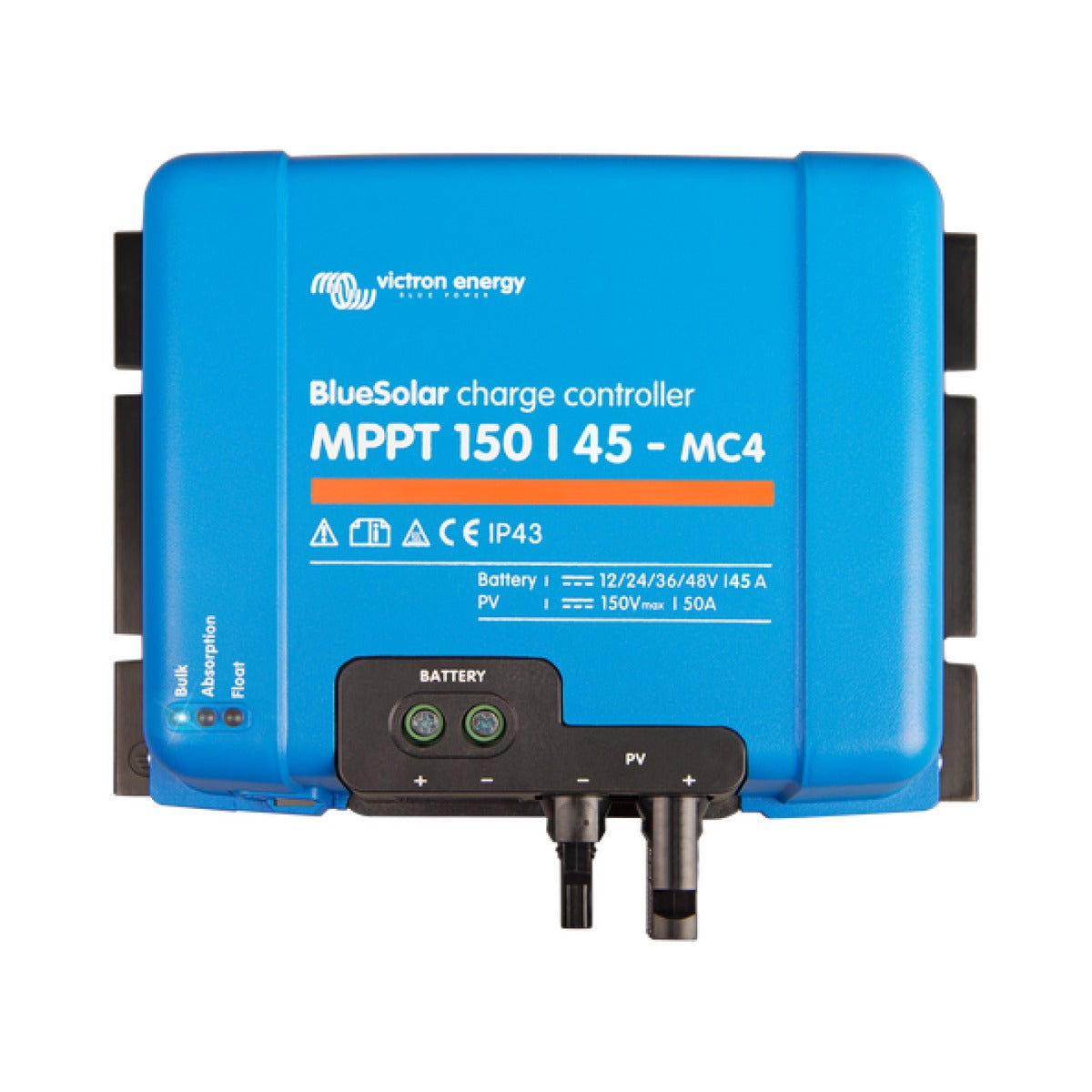

Victron BlueSolar MPPT 150/45 (MC4)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron BlueSolar MPPT 150/45 is a solar charge controller for 12V, 24V and 48V systems, accepting a solar array of up to 150V open circuit and delivering up to 45A of charge current. This version has MC4 PV connectors for quick, secure connection to solar strings. The high PV voltage supports longer panel strings and thinner cabling, and ultra-fast Maximum Power Point Tracking maximises the yield in changing light.
System voltage from 12V to 48V is detected automatically (36V is set with the software tool), and a multi-stage adaptive charge algorithm with eight pre-programmed profiles keeps batteries correctly charged. As a BlueSolar model it has no Bluetooth; setup and monitoring are through the VE.Direct port using a GX device or the optional VE.Direct Bluetooth Smart dongle.
PRODUCT DETAILS
- Ultra-fast Maximum Power Point Tracking with advanced shading detection
- High 150V maximum PV input with MC4 PV connectors
- Works with 12V, 24V and 48V batteries (auto select, 36V via software)
- Rated charge current 45A; maximum efficiency exceeds 98%
- Eight pre-programmed charge algorithms selectable by rotary switch
- VE.Direct communication port for GX devices and monitoring
No compatible transducers listed for this product.
No compatible products found.
Key specifications
| Battery voltage | 12/24/48V auto select (36V via software) |
| Maximum PV open circuit voltage | 150 V (145 V start-up and operating maximum) |
| Rated charge current | 45 A |
| Nominal PV power, 12V | 650 W |
| Nominal PV power, 24V | 1300 W |
| Nominal PV power, 48V | 2600 W |
| Maximum PV short circuit current | 50 A |
| Maximum efficiency | 98 % |
Charging
| Charge voltage 'absorption' | 14.4 / 28.8 / 43.2 / 57.6 V (adjustable) |
| Charge voltage 'float' | 13.8 / 27.6 / 41.4 / 55.2 V (adjustable) |
| Charge algorithm | Multi-stage adaptive (eight pre-programmed algorithms) |
| Temperature compensation | -16 / -32 / -64 mV/°C |
| Self-consumption | 12V: 20 mA, 24V: 15 mA, 48V: 10 mA |
Connectivity & control
| Bluetooth | No |
| Data communication port | VE.Direct |
Protection
| Protection | PV reverse polarity, output short circuit, over-temperature |
Environmental
| Operating temperature | -30 to +60°C (full rated output up to 40°C) |
| Humidity | 95%, non-condensing |
Physical
| Colour | Blue (RAL 5012) |
| Power terminals | 16 mm² / AWG6 |
| PV terminals | MC4 connectors |
| Protection category | IP43 (electronics), IP22 (connection area) |
| Weight | 1.25 kg |
| Dimensions (h x w x d) | 130 x 186 x 70 mm |
Conformance
| Safety | EN/IEC 62109-1, UL 1741, CSA C22.2 |
