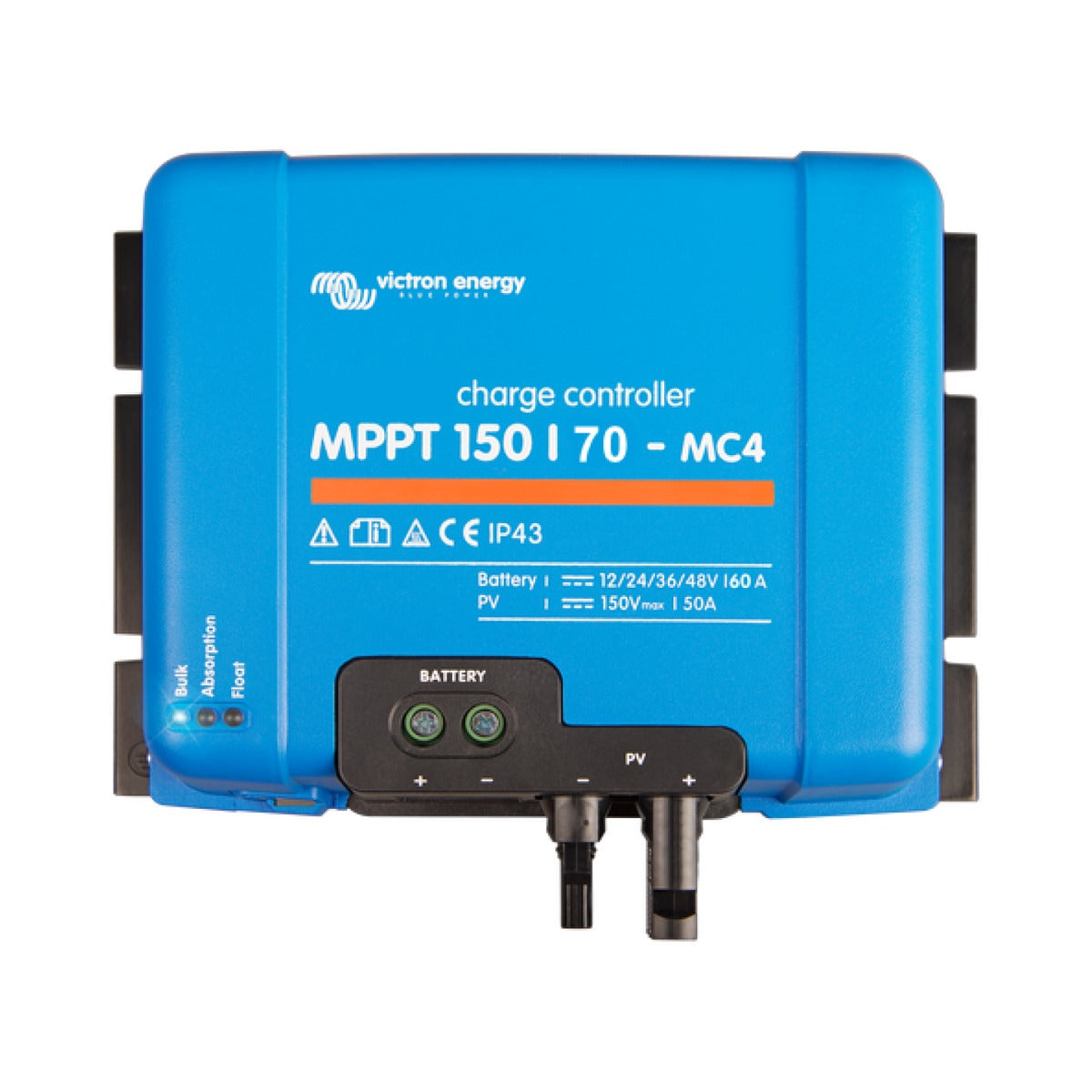

Victron BlueSolar MPPT 150/70 (MC4)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron BlueSolar MPPT 150/70 is a high-current solar charge controller for 12V, 24V and 48V systems, accepting a solar array of up to 150V open circuit and delivering up to 70A of charge current. This version has MC4 PV connectors for quick, secure connection to solar strings. The high PV input voltage supports longer strings and thinner cabling, and ultra-fast Maximum Power Point Tracking with advanced shading detection maximises the yield in variable conditions.
System voltage is detected automatically from 12V to 48V (36V is set with the software tool). A multi-stage adaptive charge algorithm with eight pre-programmed profiles manages charging, and the internal temperature sensor compensates the charge voltage. As a BlueSolar model there is no built-in Bluetooth; setup and monitoring are through the VE.Direct port using a GX device or the optional VE.Direct Bluetooth Smart dongle.
PRODUCT DETAILS
- Ultra-fast Maximum Power Point Tracking with advanced shading detection
- High 150V maximum PV input with two sets of MC4 connectors
- Works with 12V, 24V and 48V batteries (auto select, 36V via software)
- Rated charge current 70A; maximum efficiency exceeds 98%
- Eight pre-programmed charge algorithms selectable by rotary switch
- VE.Direct communication port for GX devices and monitoring
No compatible transducers listed for this product.
No compatible products found.
Key specifications
| Battery voltage | 12/24/48V auto select (36V via software) |
| Maximum PV open circuit voltage | 150 V (145 V start-up and operating maximum) |
| Rated charge current | 70 A |
| Nominal PV power, 12V | 1000 W |
| Nominal PV power, 24V | 2000 W |
| Nominal PV power, 48V | 4000 W |
| Maximum PV short circuit current | 50 A (max 30 A per MC4 connector) |
| Maximum efficiency | 98 % |
Charging
| Charge voltage 'absorption' | 14.4 / 28.8 / 43.2 / 57.6 V (adjustable) |
| Charge voltage 'float' | 13.8 / 27.6 / 41.4 / 55.2 V (adjustable) |
| Charge algorithm | Multi-stage adaptive (eight pre-programmed algorithms) |
| Temperature compensation | -16 / -32 / -64 mV/°C |
| Self-consumption | 10 mA |
Connectivity & control
| Bluetooth | No (via optional VE.Direct Bluetooth Smart dongle) |
| Data communication port | VE.Direct |
| Parallel operation | Yes (not synchronized) |
Protection
| Protection | PV reverse polarity, output short circuit, over temperature |
Environmental
| Operating temperature | -30 to +60°C (full rated output up to 40°C) |
| Humidity | 95%, non-condensing |
Physical
| Colour | Blue (RAL 5012) |
| PV terminals | Two sets of MC4 connectors |
| Battery terminals | 35 mm² / AWG2 |
| Protection category | IP43 (electronics), IP22 (connection area) |
| Weight | 3 kg |
| Dimensions (h x w x d) | 215 x 250 x 95 mm (MC4 model) |
Conformance
| Safety | EN/IEC 62109-1, UL 1741, CSA C22.2 |
