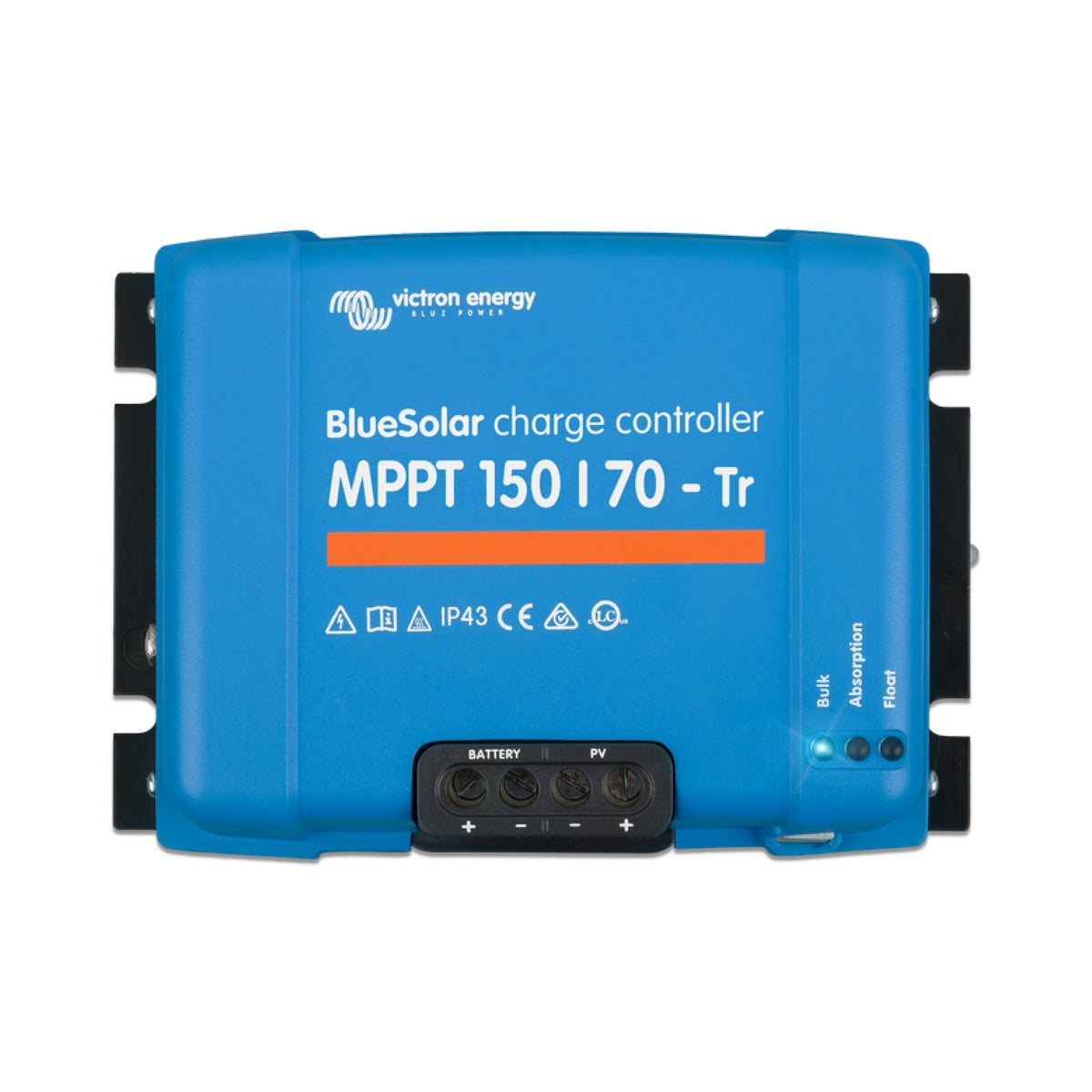

Victron BlueSolar MPPT 150/70
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron BlueSolar MPPT 150/70 is a solar charge controller for 12V, 24V, 36V and 48V battery systems, accepting a solar array of up to 150V open-circuit and delivering a rated charge current of 70A. Its ultra-fast Maximum Power Point Tracking locks onto the array's optimum operating point, improving harvest by up to 30 percent against a PWM controller and up to 10 percent against slower MPPT controllers, with a peak conversion efficiency above 98 percent and no cooling fan.
This is the BlueSolar model, the non-Bluetooth version of the SmartSolar range. A VE.Direct communication port lets it be monitored on a GX device such as a Cerbo GX or Color Control GX, or wirelessly through a VE.Direct Bluetooth Smart dongle fitted separately. A fully programmable, multi-stage adaptive charge algorithm with eight pre-programmed profiles selectable by rotary switch handles lead-acid and lithium banks alike.
Built for larger installations, it uses screw terminal-clamp connections accepting up to 35 mm2 cable on both PV and battery, an internal temperature sensor for voltage compensation, and comprehensive protection against PV reverse polarity, output short circuit and over-temperature. Parallel operation is supported, making it well suited to marine, off-grid and mobile systems with substantial solar arrays.
PRODUCT DETAILS
- Ultra-fast Maximum Power Point Tracking improves solar harvest by up to 30 percent over PWM controllers
- Peak conversion efficiency above 98 percent with no cooling fan for silent, reliable operation
- Accepts up to 150V PV open-circuit voltage with a 70A rated charge current
- Auto-selects 12, 24 or 48V battery voltage (36V selectable with the software tool)
- BlueSolar model without Bluetooth, monitored via VE.Direct on a GX device or an optional Bluetooth dongle
- Heavy-duty screw terminal-clamp connection accepting up to 35 mm2 PV and battery cable
- Fully programmable multi-stage adaptive charge algorithm with eight pre-programmed profiles
- Parallel operation supported for larger solar arrays and battery banks
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Battery voltage | 12 / 24 / 48V auto select (36V via software tool) |
| Maximum PV open circuit voltage | 150 V absolute maximum (coldest conditions); 145 V start-up and operating maximum |
| Rated charge current | 70 A |
| Nominal PV power, 12V | 1000 W |
| Nominal PV power, 24V | 2000 W |
| Nominal PV power, 48V | 4000 W |
| Maximum PV short circuit current | 50 A |
| Maximum efficiency | 98 % |
Charging
| Charge voltage 'absorption' | Default 14.4 / 28.8 / 43.2 / 57.6 V (adjustable) |
| Charge voltage 'float' | Default 13.8 / 27.6 / 41.4 / 55.2 V (adjustable) |
| Charge algorithm | Multi-stage adaptive |
| Temperature compensation | -16 mV / -32 mV / -64 mV / °C |
| Self-consumption | 10 mA |
| Automatic battery voltage recognition | Yes (12 / 24 / 48V) |
Connectivity & control
| Bluetooth | No (add via VE.Direct Bluetooth Smart dongle) |
| Data communication port | VE.Direct |
| Remote on/off | Yes |
| Parallel operation | Yes (not synchronised) |
Protection
| Protection | PV reverse polarity, output short circuit, over-temperature |
Environmental
| Operating temperature | -30 to +60 °C (full rated output up to 40 °C) |
| Humidity | 95 %, non-condensing |
Physical
| Colour | Blue (RAL 5012) |
| PV terminals | 35 mm² / AWG2 |
| Battery terminals | 35 mm² / AWG2 |
| Protection category | IP43 (electronic components), IP22 (connection area) |
| Weight | 3 kg |
| Dimensions (h x w x d) | 185 x 250 x 95 mm |
Conformance
| Safety | EN/IEC 62109-1, UL 1741, CSA C22.2 |
