Victron BMV-700 Battery Monitor Kit
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron BMV-700 is a high-precision battery monitor that tracks the true state of charge of a single battery bank. It continuously measures battery voltage and the current flowing in and out through the supplied 500 A shunt, then applies Victron's charge-counting algorithm to report ampere-hours consumed, state of charge and the estimated time remaining at the present rate of discharge.

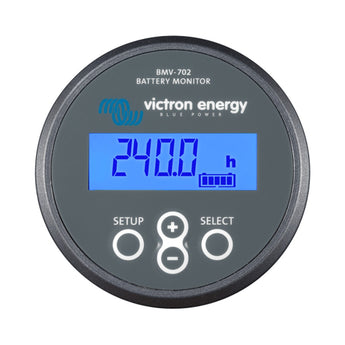

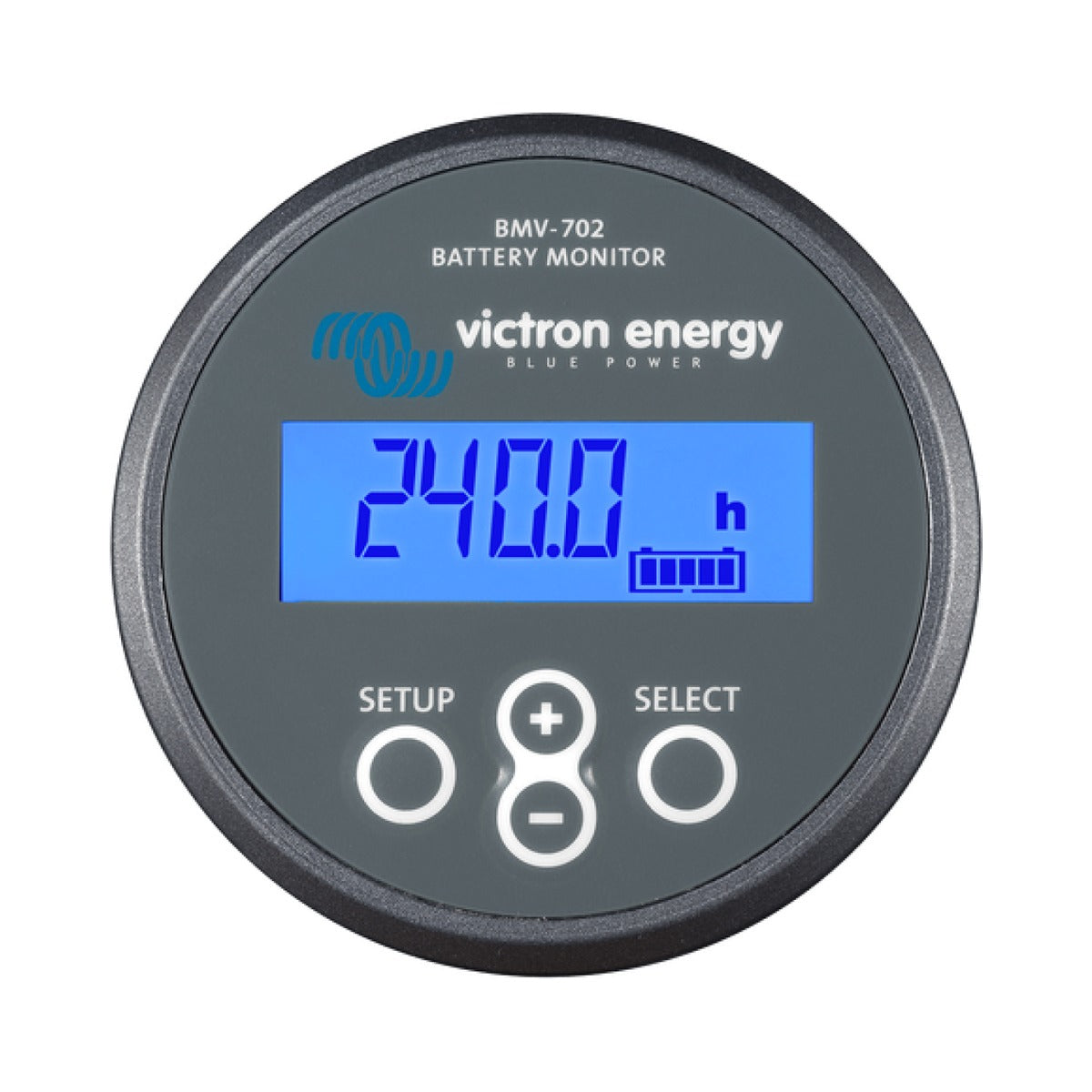

This kit contains the 63 mm round head unit, the 500 A / 50 mV shunt, a 10 metre RJ12 cable and a fused battery cable, so no further parts are needed for a basic installation. A programmable visual and audible alarm and a programmable relay let the monitor warn of a low battery or switch off non-critical loads automatically.
A VE.Direct port connects the BMV-700 to a GX device or computer for system monitoring, and an optional VE.Direct to Bluetooth Smart dongle adds wireless read-out and configuration from a phone or tablet.
PRODUCT DETAILS
- Precise state-of-charge and time-to-go readout for a single battery bank
- Supplied with a 500 A / 50 mV shunt, 10 m RJ12 cable and fused battery cable
- Wide 6.5 to 95 VDC supply range suits 12, 24, 36 and 48 V systems
- Programmable visual and audible alarm with a 60 V / 1 A bistable relay
- VE.Direct port for connection to a GX device or computer
- Optional VE.Direct to Bluetooth Smart dongle for wireless monitoring
- Very low current draw of less than 4 mA with the back light off
- IP55-rated 63 mm round flush-mount display
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Shunt rating | 500 A / 50 mV |
| Supply voltage range | 6.5 - 95 VDC |
| Bluetooth | No (optional VE.Direct to Bluetooth Smart dongle) |
| Display | 63 mm diameter flush-mount |
| Protection category (IP) | IP55 (not intended for outdoor use) |
Electrical
| Current draw | < 4 mA (back light off) |
| Battery capacity range | 1 - 9999 Ah |
| Auxiliary input | Not available |
| Bistable relay | 60 V / 1 A normally open (function can be inverted) |
Resolution & accuracy
| Current resolution | ± 0.01 A |
| Voltage resolution | ± 0.01 V |
| State of charge resolution | ± 0.1 % |
| Current measurement accuracy | ± 0.4 % |
| Voltage measurement accuracy | ± 0.3 % |
Connectivity
| VE.Direct port | Yes |
Physical
| Dimensions (h×w×d) | 69 x 69 mm bezel; 52 mm body diameter; 31 mm depth |
| Shunt connection bolts | M10 |
Operating conditions
| Operating temperature range | -40 to +50 °C |
