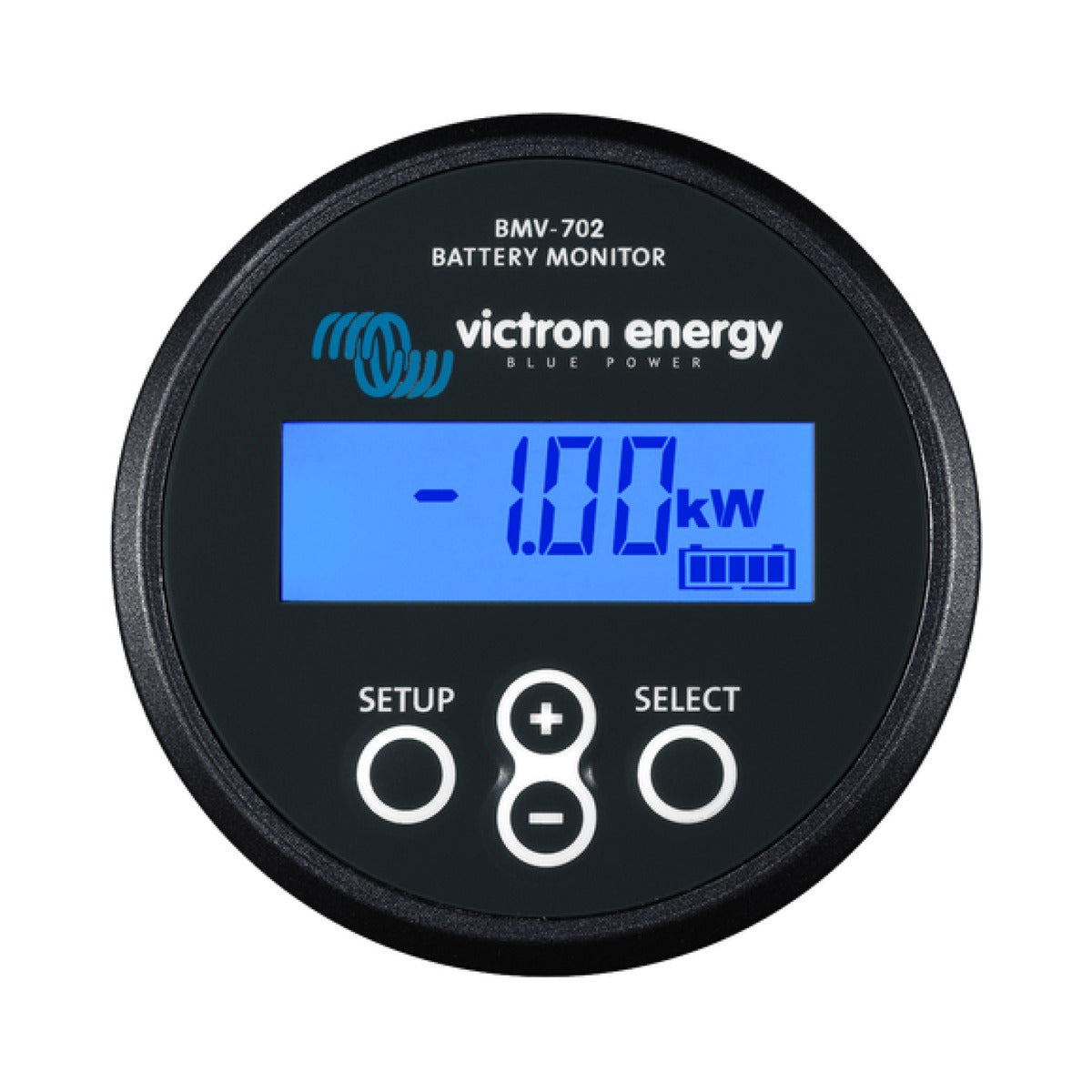

Victron BMV-702 Battery Monitor Kit (Black)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron BMV-702 is a high-precision battery monitor that adds a second measurement input to the BMV-700 platform, supplied here with a black front bezel. Alongside the true state of charge of the main battery, the auxiliary input can be programmed to read the voltage of a second battery, battery temperature or the midpoint voltage of a series-connected bank. Monitoring the midpoint voltage gives an early warning of a failing cell or battery in a large, expensive bank.
The kit contains the 63 mm round head unit, the 500 A / 50 mV shunt, a 10 metre RJ12 cable and a fused battery cable, so no further parts are required. As with all BMV monitors, it calculates ampere-hours consumed, state of charge and the time remaining at the present rate of discharge, and provides a programmable alarm and relay.
A VE.Direct port connects the BMV-702 to a Victron GX device or computer, and an optional VE.Direct to Bluetooth Smart dongle adds wireless monitoring from a phone or tablet.
PRODUCT DETAILS
- Black front bezel finish
- Auxiliary input for a second battery voltage, temperature or midpoint monitoring
- Midpoint monitoring gives early warning of a failing cell in a series bank
- Precise state-of-charge and time-to-go readout for the main bank
- Supplied with a 500 A / 50 mV shunt, 10 m RJ12 cable and fused battery cable
- Programmable visual and audible alarm with a 60 V / 1 A bistable relay
- VE.Direct port for connection to a GX device or computer
- Optional VE.Direct to Bluetooth Smart dongle for wireless monitoring
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Shunt rating | 500 A / 50 mV |
| Supply voltage range | 6.5 - 95 VDC |
| Bluetooth | No (optional VE.Direct to Bluetooth Smart dongle) |
| Display | 63 mm diameter flush-mount |
| Protection category (IP) | IP55 (not intended for outdoor use) |
Electrical
| Current draw | < 4 mA (back light off) |
| Battery capacity range | 1 - 9999 Ah |
| Auxiliary input | Yes - voltage of second battery, temperature or midpoint |
| Bistable relay | 60 V / 1 A normally open (function can be inverted) |
Resolution & accuracy
| Current resolution | ± 0.01 A |
| Voltage resolution | ± 0.01 V |
| State of charge resolution | ± 0.1 % |
| Current measurement accuracy | ± 0.4 % |
| Voltage measurement accuracy | ± 0.3 % |
Connectivity
| VE.Direct port | Yes |
Physical
| Dimensions (h×w×d) | 69 x 69 mm bezel; 52 mm body diameter; 31 mm depth |
| Shunt connection bolts | M10 |
Operating conditions
| Operating temperature range | -40 to +50 °C |
